Chapter 6 Micro870 Controller Distributed Network Protocol
Data Set Prototypes Configuration Parameters

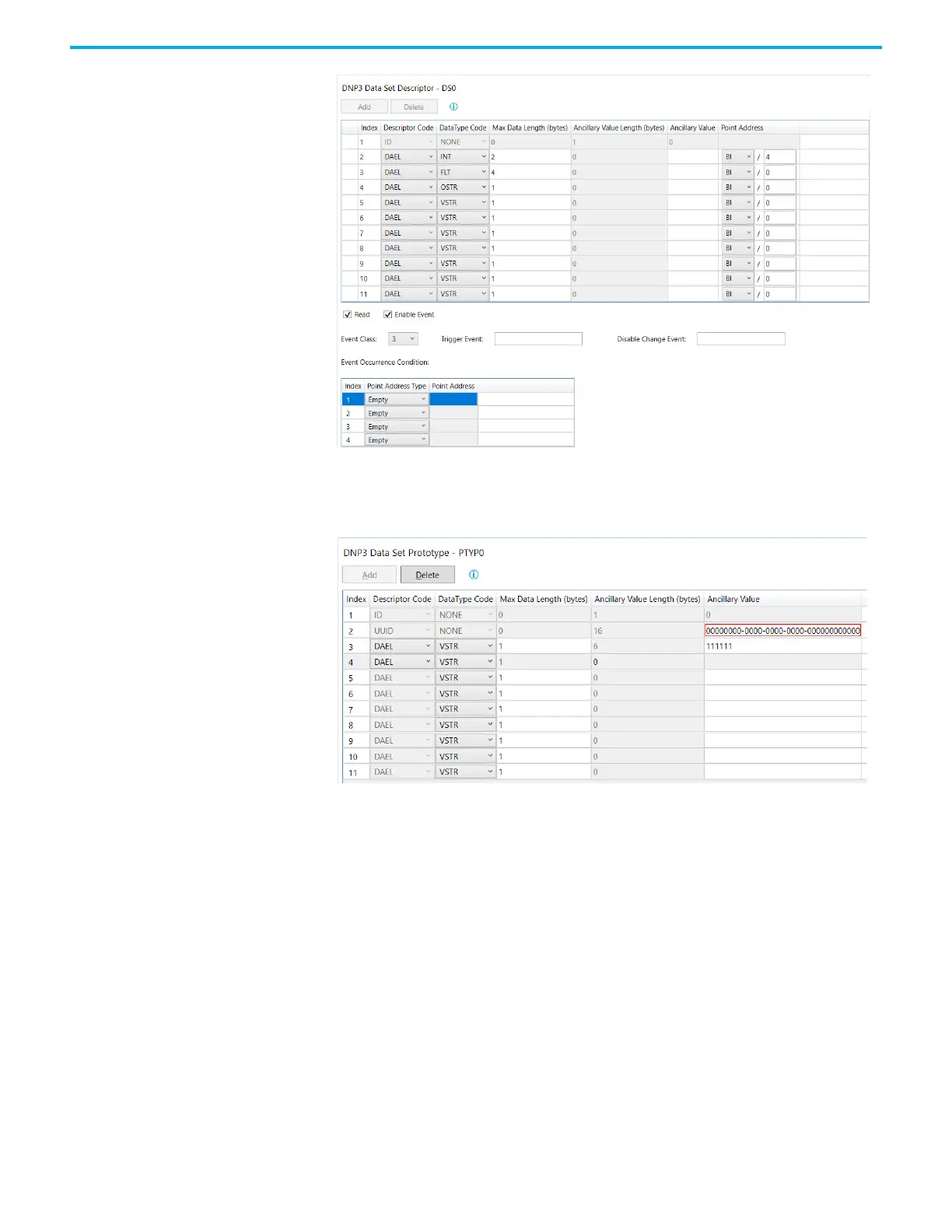

These parameters are used to construct Data Set Prototypes object.
You can add or delete the index in each PTYPx entry.
Descriptor Code: UUID for index 2. NSPC/NAME/DAEL for index 3 or higher.
Data Type Code: NONE for index 2. VSTR/UINT/INT/FLT/OSTR/BSTR/TIME
for index 3 or higher.
Max Data Length (bytes): 0 for element 1. 0…255 for index 3 or higher.
Ancillary Value: Binary Array in hexadecimal for element 1. ASCII strings for
index 3 or higher. Maximum 32 bytes.
