Rockwell Automation Publication 2080-UM002M-EN-E - April 2022 171
Chapter 8 Motion Control

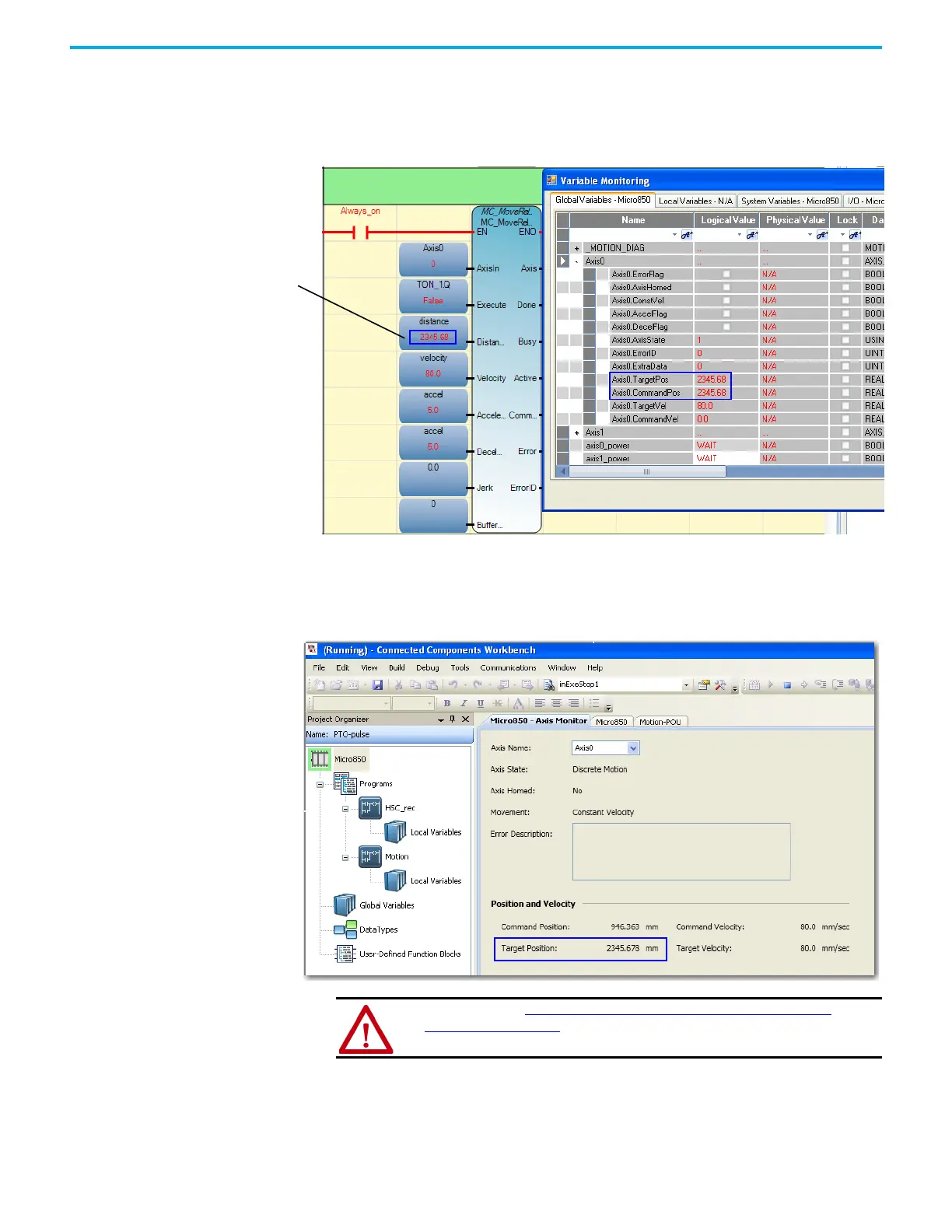

Variable Monitor Example
The Variable Monitor displays six significant digits with rounding, although
the real data type still contains seven significant digits.
Axis Monitor Example
The Axis Monitor displays seven significant digits with rounding.
In this example, the user has entered the Target
Position value of 2345.678.
This value is rounded up to six digits (2345.68) in
the Variable Monitoring screen.
ATTENTION: See Motion Axis Configuration in Connected Components
Workbench on page 163 to learn more about the different axis configuration
parameters.
