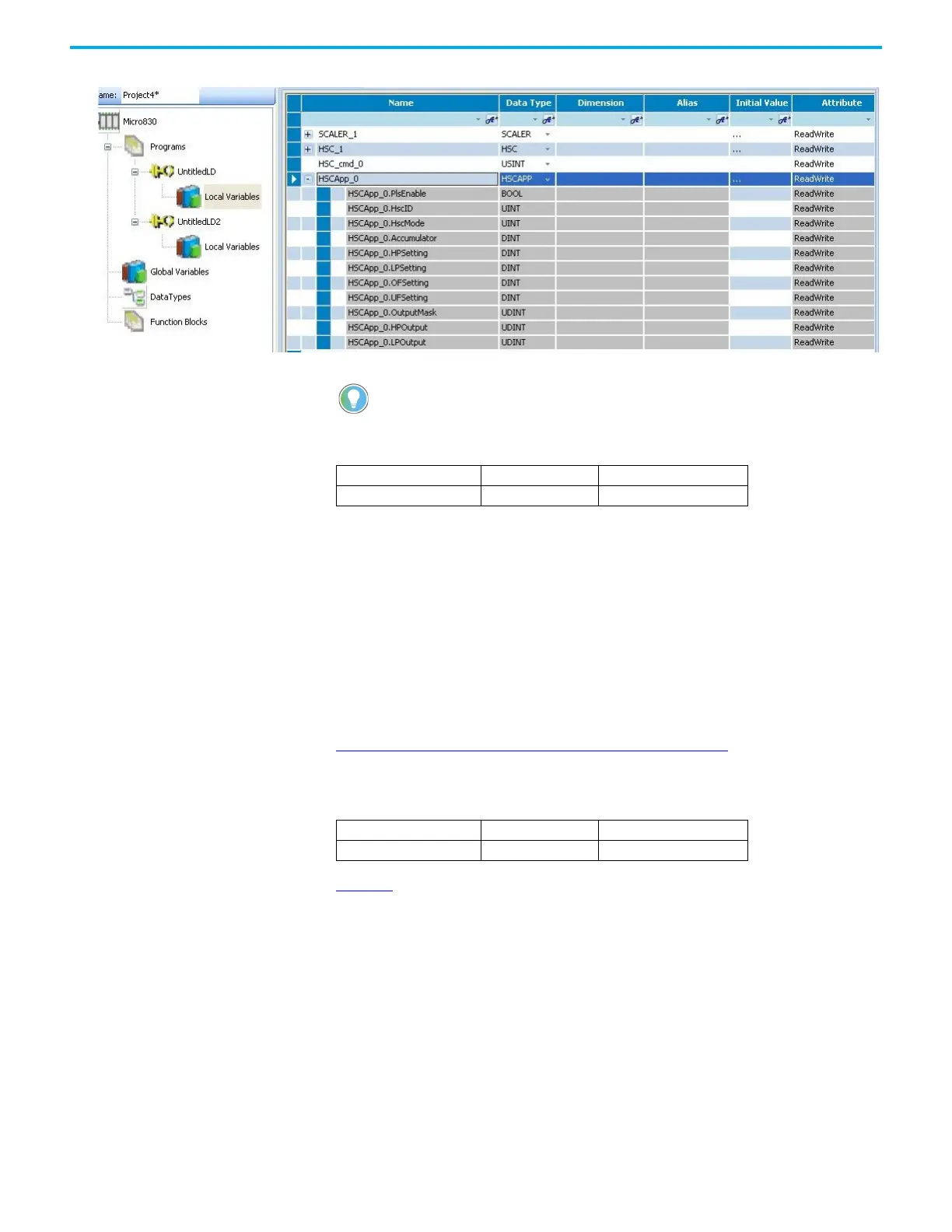

188 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022
Chapter 9 Use the High-Speed Counter and Programmable Limit Switch
This bit enables and disables the HSC Programmable Limit Switch (PLS)
function.
When the PLS function is enabled, the setting in
• HSCAPP.HpSetting
• HSCAPP.LpSetting
• HSCAPP.HPOutput
• HSCAPP.LPOutput
are superseded by corresponding data values from PLS data. See
Programmable Limit Switch (PLS) Function
on page 205 for more
information.
Table 29
lists the definition for HSCID.
HSC1, HSC3, and HSC5 support mode 0, 2, 4, 6, and 8 only, and HSC0,
HSC2, and HSC4 support all counting modes.
PLS Enable (HSCAPP.PLSEnable)
Description Data Format User Program Access
PLSEnable bit read/write
HSCID (HSCAPP.HSCID)
Description Data Format User Program Access
HSCID Word (UINT) read/write
