228 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022
Chapter 11 Using microSD Cards
1. Remove the microSD card from the controller and read the card using
your computer.

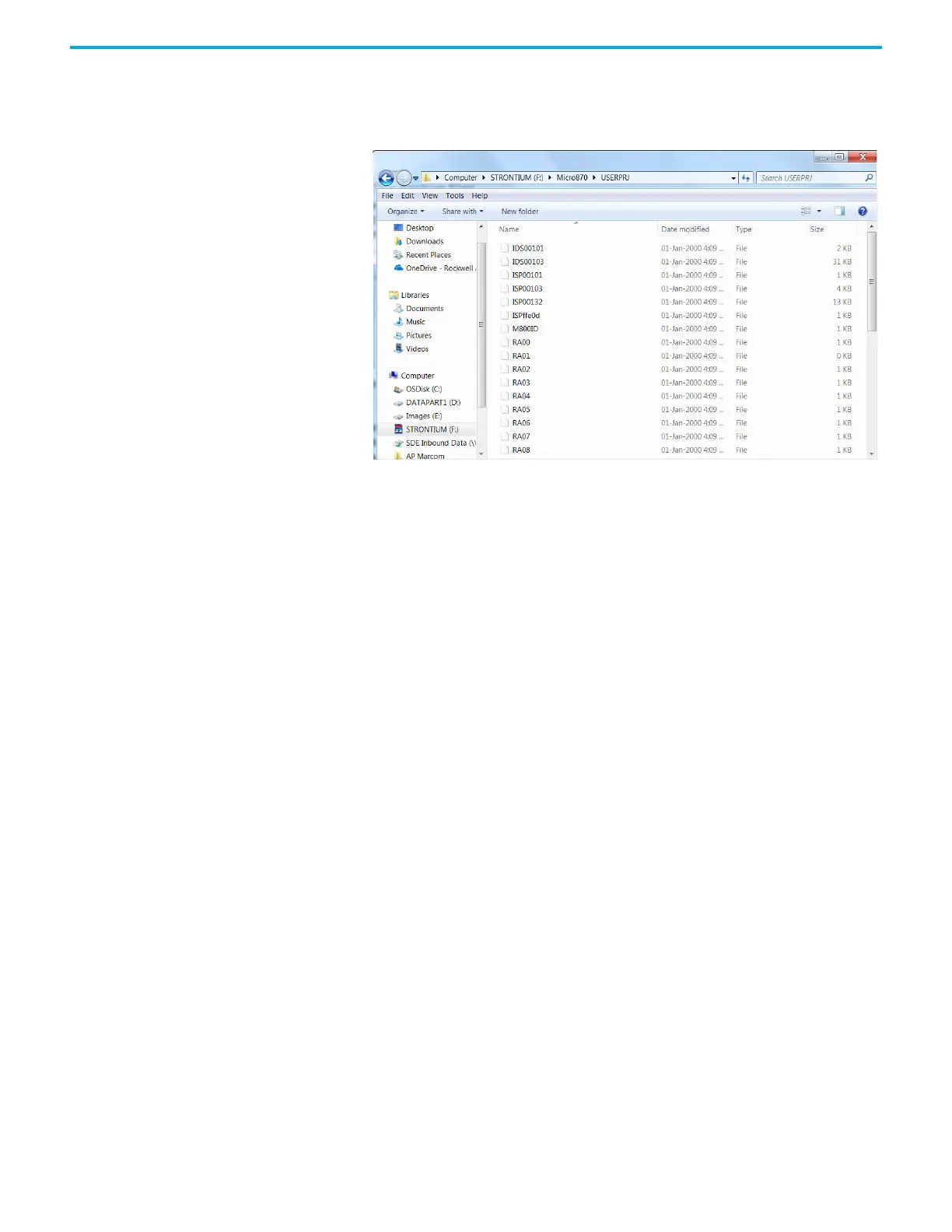

2. Navigate to the location where the image files are stored (default is
<Micro800>\USERPRJ).
3. Use a compression program to zip these image files and send them to
your customer through email.
The customer must unzip these image files into the root directory of their
microSD card and verify that the location is identical to the original (default is
<Micro800>\USERPRJ).
Restore Project from Backup
The last step is to restore the project to your controller from the microSD card.
There are two methods to restore the backup, depending on the configuration
of the controller.
Existing Controller - Load Always / Load on Error
For this example, the Load on power up setting was configured to “Load
Always”. This means that the controller loads the project from the memory
card whenever it is powered on.
1. Insert the microSD card into the microSD card slot.
2. Cycle power to the controller.
3. When the SD LED displays a steady green light, the project restore is
complete.
This method is used for an existing controller that has been configured and
you want to update the program.
New Controller
If your controller is new, you can use the ConfigMeFirst.txt file to restore the
project backup.
