Chapter 11 Using microSD Cards

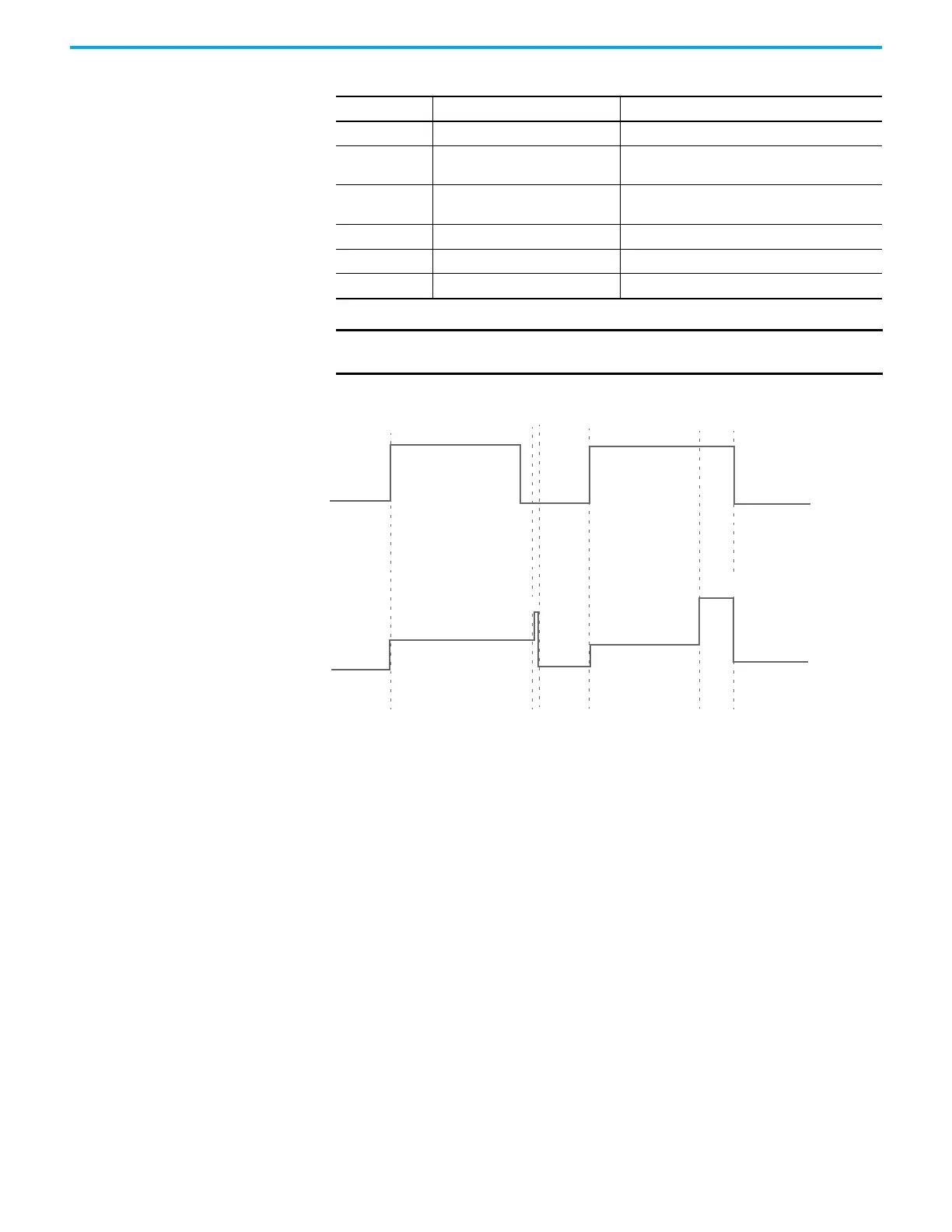

Figure 21 - Data Log Function Block Timing Diagram
4 DLG_ERR_CFG_ABSENT Data log configuration file is absent.
5 DLG_ERR_CFG_ID
Configuration ID is missing in data log configuration
file.
6 DLG_ERR_RESOURCE_BUSY
Same Configuration ID is used with other data log
function block call at the same time
7 DLG_ERR_CFG_FORMAT Data log configuration file format is wrong.
8 DLG_ERR_RTC Real time clock is invalid.
9 DLG_ERR_UNKNOWN Unspecified error has occurred.
IMPORTANT
File access error will be returned during DLG function block execution
when card is full.
DLG Function Block Errors (Continued)
Status Code Name Description
Disable(0)
Enable(1)
Disable(0)
Enable(1)
Disable(0)
Idle(0)
Busy(1)
Succeed(2)
Idle(0)
Busy(1)
Error(3)
Idle(0)
Enable(1)
Status(0)
