Rockwell Automation Publication 2080-UM002M-EN-E - April 2022 273
Appendix B Quickstarts

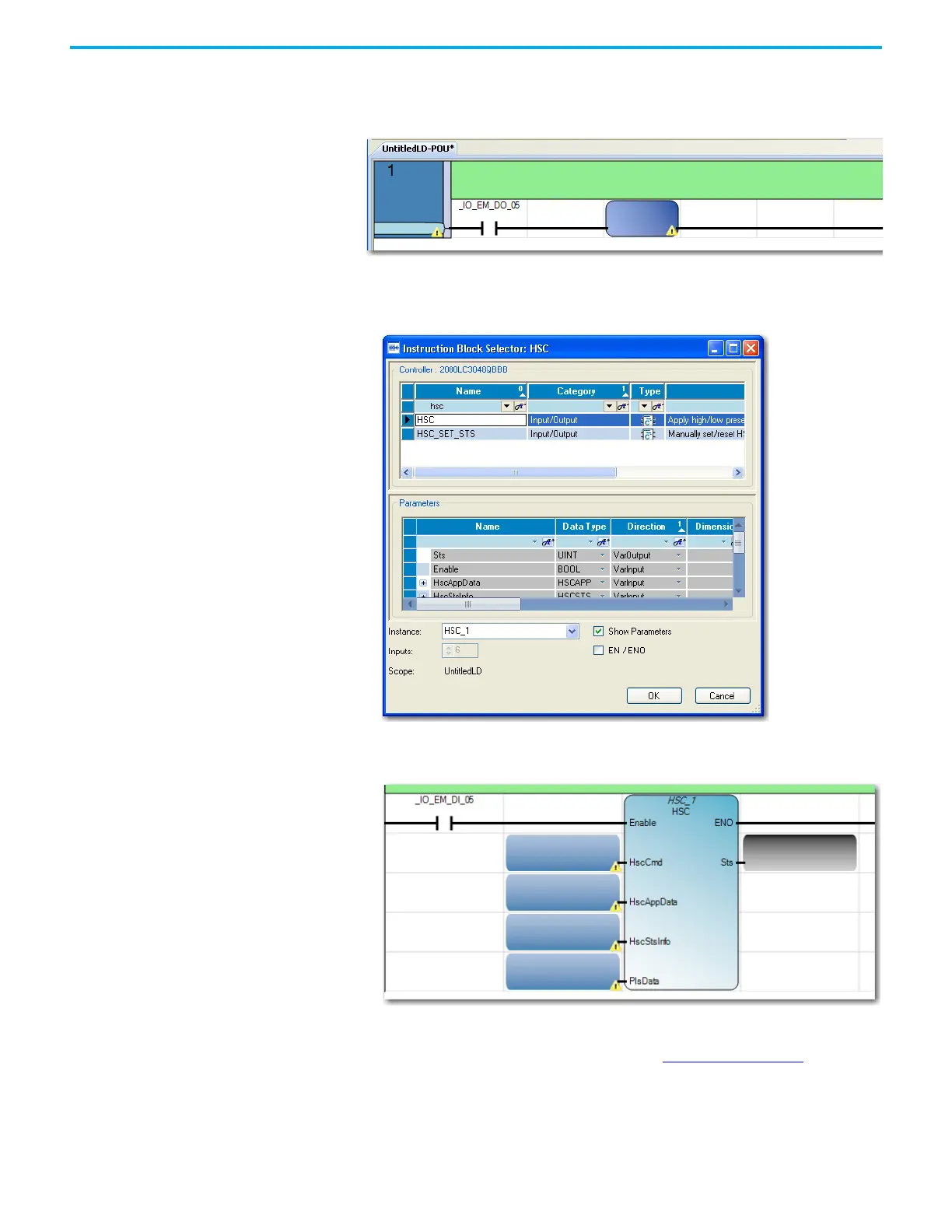

6. To the right of the Direct Contact, add a function block by double-
clicking function block from the Toolbox or dragging and dropping the
function block onto the rung.
7. Double-click the function block to open up the Instruction Selector
dialog. Choose HSC. You can do a quick search for HSC function block by
typing “HSC” on the name field. Click OK.
Your ladder rung appears as shown:
8. On the Project Organizer pane, double-click Local Variables to bring up
the Variables window. Add the following variables with the
corresponding data types, as specified in Table 56 on page 274
.
