Chapter 6 Micro870 Controller Distributed Network Protocol
Master Node1, Master Node2, Master Node3, Master Node4
This value is used for validation of the Master node address when the Enable
Master Address Validation is Enabled (Checked). This value is only shown and
valid when the Enable Master Address Validation is Enabled (Checked).
The valid range is 0…65519. Default value is 0.
Master IP Address0
This value is used to:
• validate Master IP address when the Enable Access Control is Enabled
(Checked)
• send Unsolicited Response when Unsolicited Response functionality is
enabled. An Unsolicited Response is sent out to the DNP3 Master having
this address.
The valid value is an IP address. Default value is 0.0.0.0.
Master IP Address1, Master IP Address2, Master IP Address3, Master IP Address4
This value is used for validation of the Master IP address when the Enable
Access Control is Enabled (Checked). This value is only shown and valid when
the Enable Access Control is Enabled (Checked).
The valid value is an IP address. Default value is 0.0.0.0.

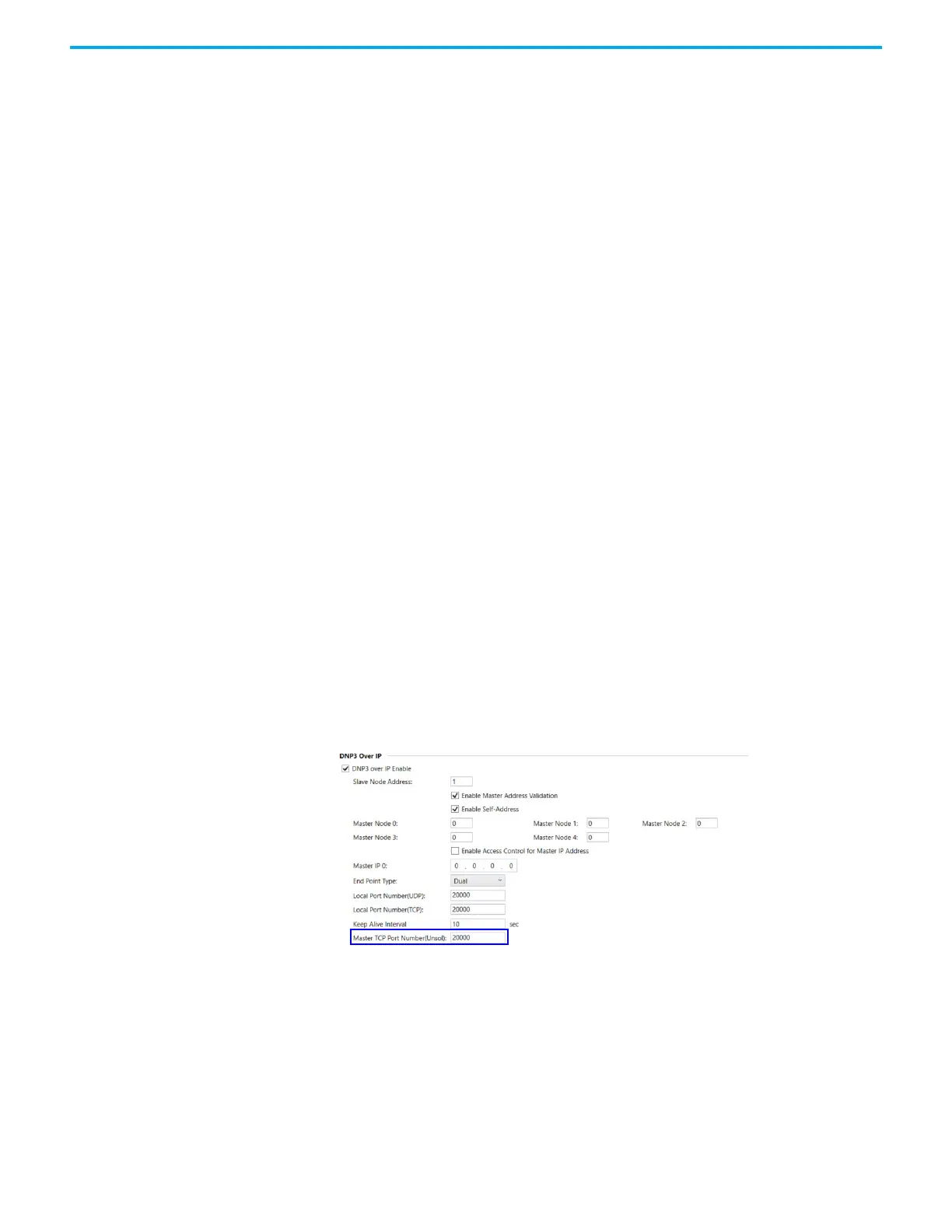

Master TCP Port Number (Unsol)
This value is used to configure Master TCP Port Number for Unsolicited
Response.
The valid range is 0…65535. Default value is 20000.
Master UDP Port Number for Initial Unsolicited
This value is used to configure Master UDP Port Number for Initial Unsolicited
Response if the parameter End Point Type is selected as Datagram Only.
The valid range is 0…65535. Default value is 20000.
