149
Other Functions
Other Functions
Adjusting the Sensitivity of the Time
Trip Pad
Perform this adjustment if the Time Trip pad no longer responds as
you expect.
1.

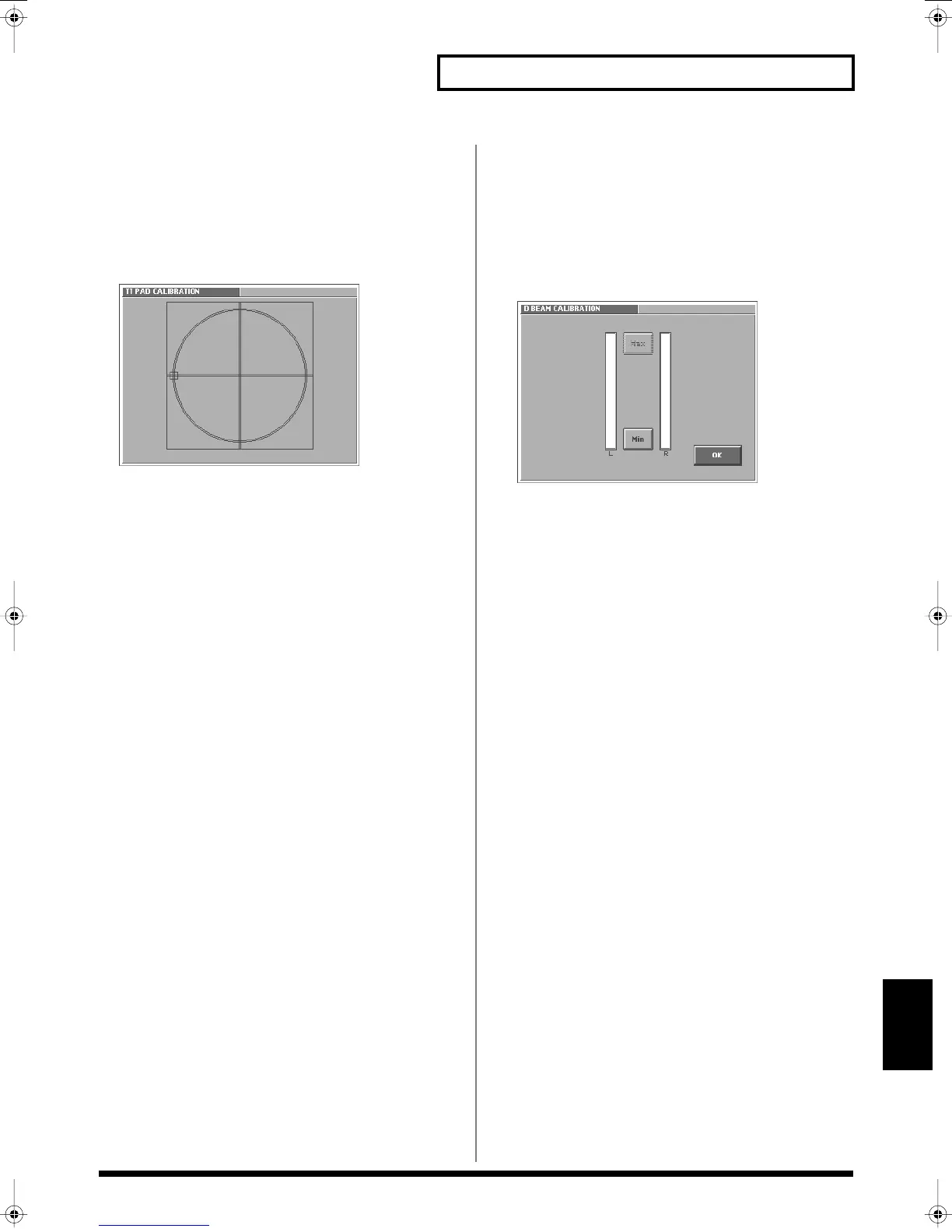

In the CALIBRATION MENU screen, touch <TIME TRIP PAD>.
The TT PAD CALIBRATION screen appears.
fig.08-07_50
2.
On the Time Trip pad, touch the points indicated by the
square symbol in the screen, in the following order: left
→
top
→
right
→
bottom.
When you have touched all four points, the screen will close, and
the sensitivity of the Time Trip pad will be calibrated.
Adjusting the Sensitivity of the D
Beam Controller
Perform this adjustment if the D Beam controller is functioning
incorrectly, such as responding even though you have not operated
it.
1.
In the CALIBRATION MENU screen, touch <D BEAM>.
The D Beam CALIBRATION screen appears.
fig.08-08_50
When you place your hand over the D Beam controller, the “L”
or “R” level meter in the screen will move upward or
downward.
2.
First specify the location at which the D Beam controller will
begin responding (i.e., the minimum value).
Move your hand toward the D Beam controller, and touch
<Min> at the point where you want the controller to begin
responding.
3.
Next specify the location at which the D Beam controller will
reach the peak (i.e., the maximum value).
Continue moving your hand toward the D Beam controller, and
touch <Max> at the point where you want the peak response to
occur.
4.
While watching the level meter in the screen, raise and lower
your hand to check the response of the D Beam controller.
5.
If you are satisfied with the response, touch <OK>.
The sensitivity of the D Beam controller will be calibrated.
Reference_e.book 149 ページ ２００５年３月１０日 木曜日 午後５時６分
