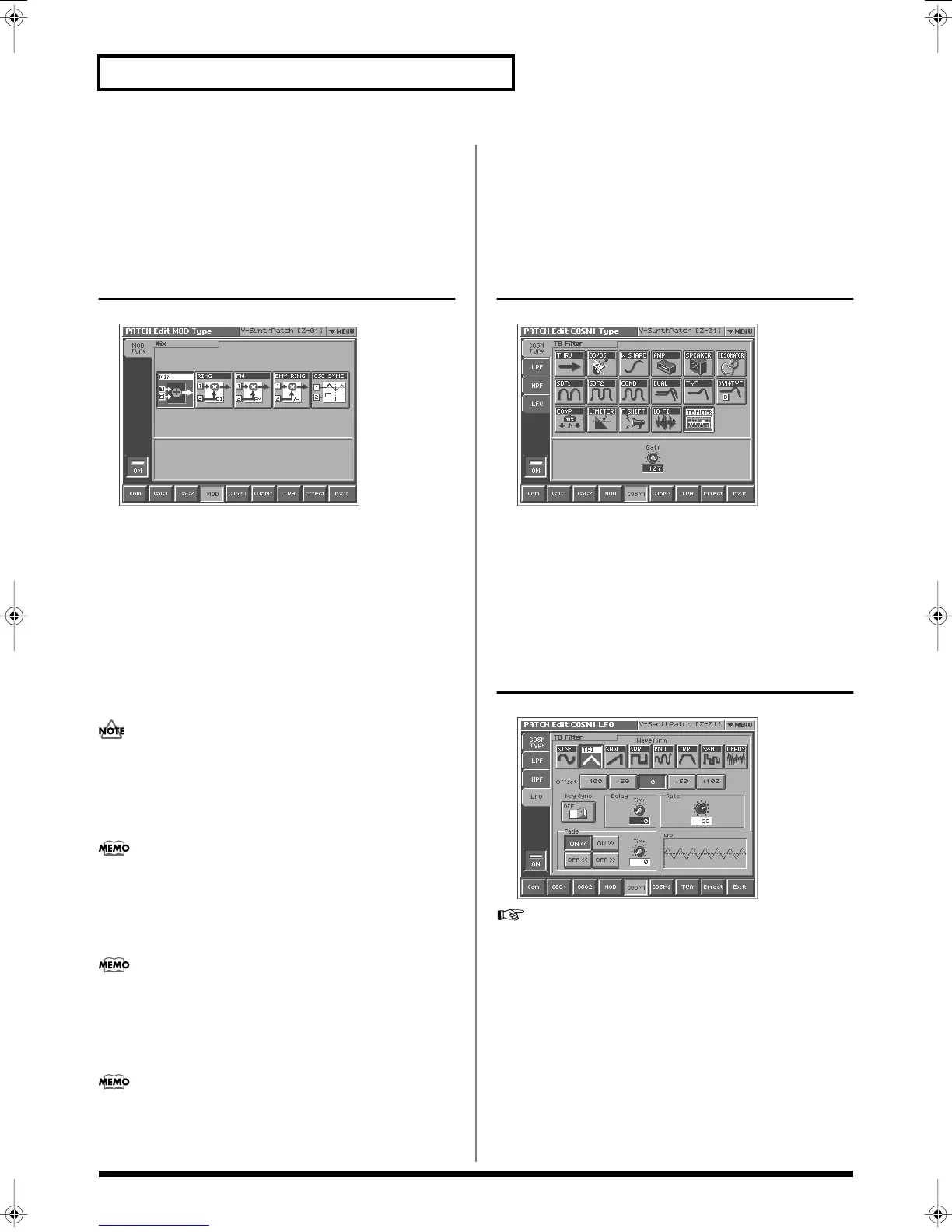

92
Creating a Patch
Mixing/Modulating Two Sounds
(MOD)
Modulator Switch
◆
Switches the modulator on/off.
Value:
OFF, ON
Mod Type
fig.03-21_50
Modulator Type
Selects the type of modulator.
Value
MIX:
Add OSC1 and OSC2.
RING:
Use OSC2 to apply ring modulation to OSC1.
FM:
Use OSC2 to apply FM (frequency modulation) to OSC1.
ENV RING:
Use the envelope of OSC2 to control the volume of
OSC1.
OSC SYNC:
Synchronize the output waveform of OSC1 to the
output waveform of OSC2.
OSC SYNC is valid only when OSC2 is an analog oscillator.
Original Level (Modulator Original Level)
Specifies the volume for the original sound of OSC1.
Value:
0–127
This can be set if Modulator Type is set to “RING” or “FM.”
Attack (Modulator Attack Time)
Specifies the attack time of the OSC2 envelope.
Value:
0–127
This can be set if Modulator Type is set to “ENV RING.”
Release (Modulator Release Time)
Specifies the release time of the OSC2 envelope.
Value:
0–127
This can be set if Modulator Type is set to “ENV RING.”
Applying Various Effects to Each
Note You Play (COSM1/COSM2)
COSM Switch
◆
Switches the COSM on/off.
Value:
OFF, ON
COSM Type
fig.09_50
CO SM Type
Use this parameter to select from among the 16 available COSMs.
For details on COSM parameters, refer to
“COSM Parameters”
(p.
161).
Value:
THRU, OD/DS, W-SHAPE, AMP, SPEAKER, RESONATOR,
SBF1/2, COMB, DUAL, TVF, DYN-TVF, COMP, LIMITER, F-SHIFT,
LO-FI, TB FILTER
LFO
fig.03-23_50
For some COSM selections that you choose in COSM Type, you
can make LFO settings. For details on LFO settings, refer to
“Making LFO Settings”
(p. 95).
Reference_e.book 92 ページ ２００５年３月１０日 木曜日 午後５時６分
