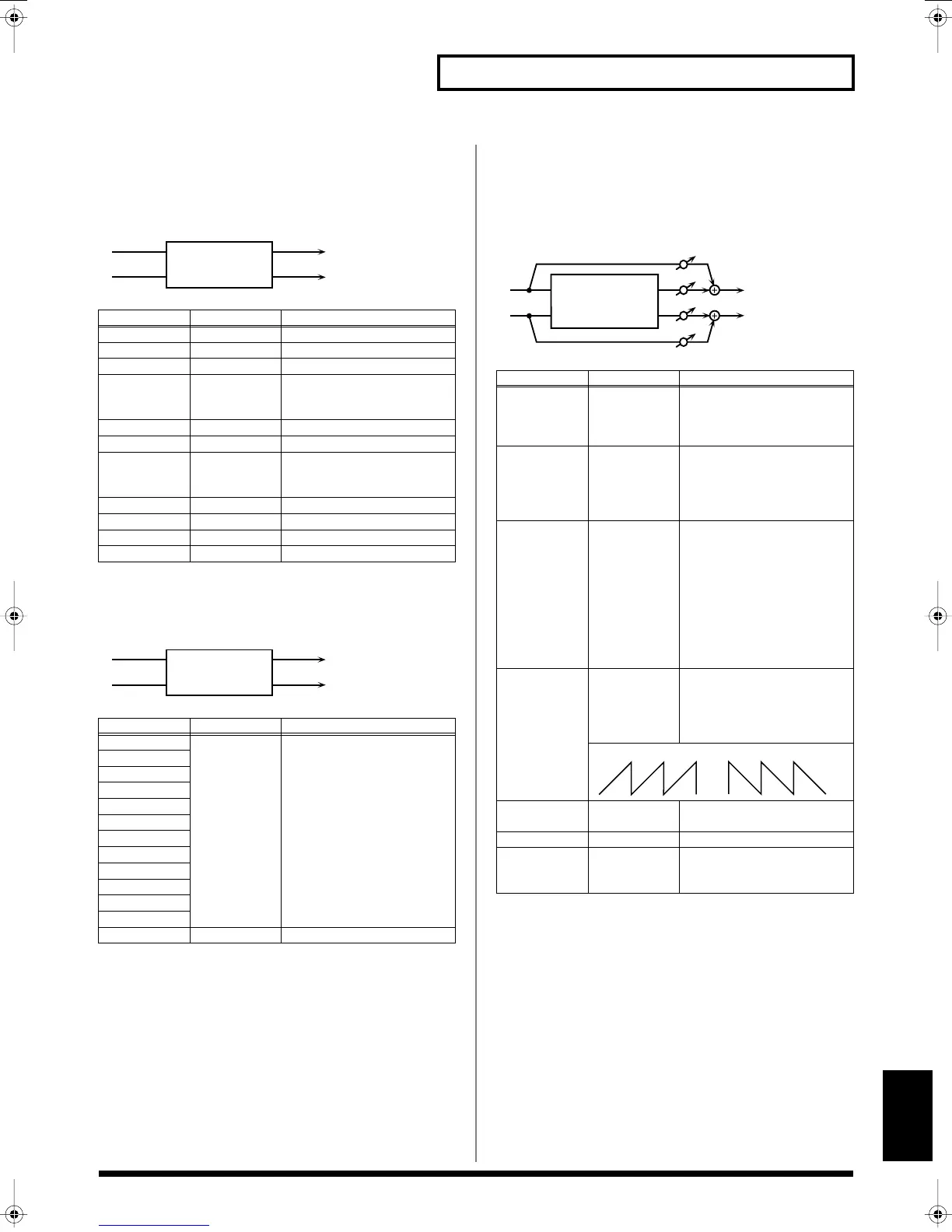

167
Effects List
Appendices
01: Parametric EQ
(Parametric Equalizer)
This is a 4 band (low range, midrange x 2, high range) stereo
parametric equalizer.
fig.MFX-01
02: Graphic EQ (Graphic Equalizer)
This simulates a 12-band stereo graphic equalizer.
fig.MFX-02
03: Resonant Filter
It allows for cyclical control of the cutoff frequency using an LFO. It
allows you to make drastic changes in the frequency response of the
input signal by the cutoff frequency and feedback, making the sound
brighter or darker, or giving it a distinctive character.
fig.MFX-03
Parameter
Value Description
Low Freq
50–4000 Hz Frequency of the low range
Low Gain -15– +15 dB Gain of the low range
Mid 1 Freq 50–20000 Hz Frequency of the middle range 1
Mid 1 Q 0.5, 0.7, 1.0, 2.0,
4.0, 8.0
Width of the middle range 1
Set a higher value for Q to nar-
row the range to be affected.
Mid 1 Gain -15– +15 dB Gain of the middle range 1
Mid 2 Freq 50–20000 Hz Frequency of the middle range 2
Mid 2 Q 0.5, 0.7, 1.0, 2.0,
4.0, 8.0
Width of the middle range 2
Set a higher value for Q to nar-
row the range to be affected.
Mid 2 Gain -15– +15 dB Gain of the middle range 2
Hi Freq 2000–20000 Hz Frequency of the high range
Hi Gain -15– +15 dB Gain of the high range
Total Gain -15– +15 dB Output Level
Parameter
Value Description
180Hz Gain -15– +15 dB Gain of each frequency band
250Hz Gain
355Hz Gain
500Hz Gain
710Hz Gain
1000Hz Gain
1400Hz Gain
2000Hz Gain
2800Hz Gain
4000Hz Gain
5600Hz Gain
8000Hz Gain
Total Gain #1 -15– +15 dB Output Level
L
R
4-Band EQ
L
R
12-Band
Graphic EQ
Parameter
Value Description
Cutoff Freq
50–20000 Hz Basic frequency of the filter
The LFO will control the cutoff
frequency with this value as its
maximum level.
Resonance 0–127 Filter’s resonance level
Raising the setting increases res-
onance near the cutoff frequen-
cy, producing a uniquely
characteristic sound.
Band Mode LOW, MID,
HIGH,
LOW+MID,
MID+HIGH,
ALL
Frequency range to which the
filter will be applied
LOW: low frequency band
MID: mid-range frequency
HIGH: high frequency
LOW+MID: low and middle
range frequency
MID+HIGH: middle and high
range frequency
ALL: all ranges
Sweep Wave-
form
TRI, SAWUP,
SAWDN, SQR
LFO waveform
TRI: Triangle wave
SAWUP: Sawtooth Wave
SAWDN: Sawtooth Wave
SQR: Square wave
Sweep Rate 0.05–10.0 Hz,
note
Frequency of the LFO modula-
tion
Sweep Depth 0–127 Modulation depth of the LFO
Balance DRY100:0WET–
DRY0:100WET
Volume balance between the di-
rect sound (DRY) and the effect
sound (WET)
Resonant
Filter
L
R
SAWUP SAWDN
Reference_e.book 167 ページ ２００５年３月１０日 木曜日 午後５時６分
