70
Playing in Patch Mode

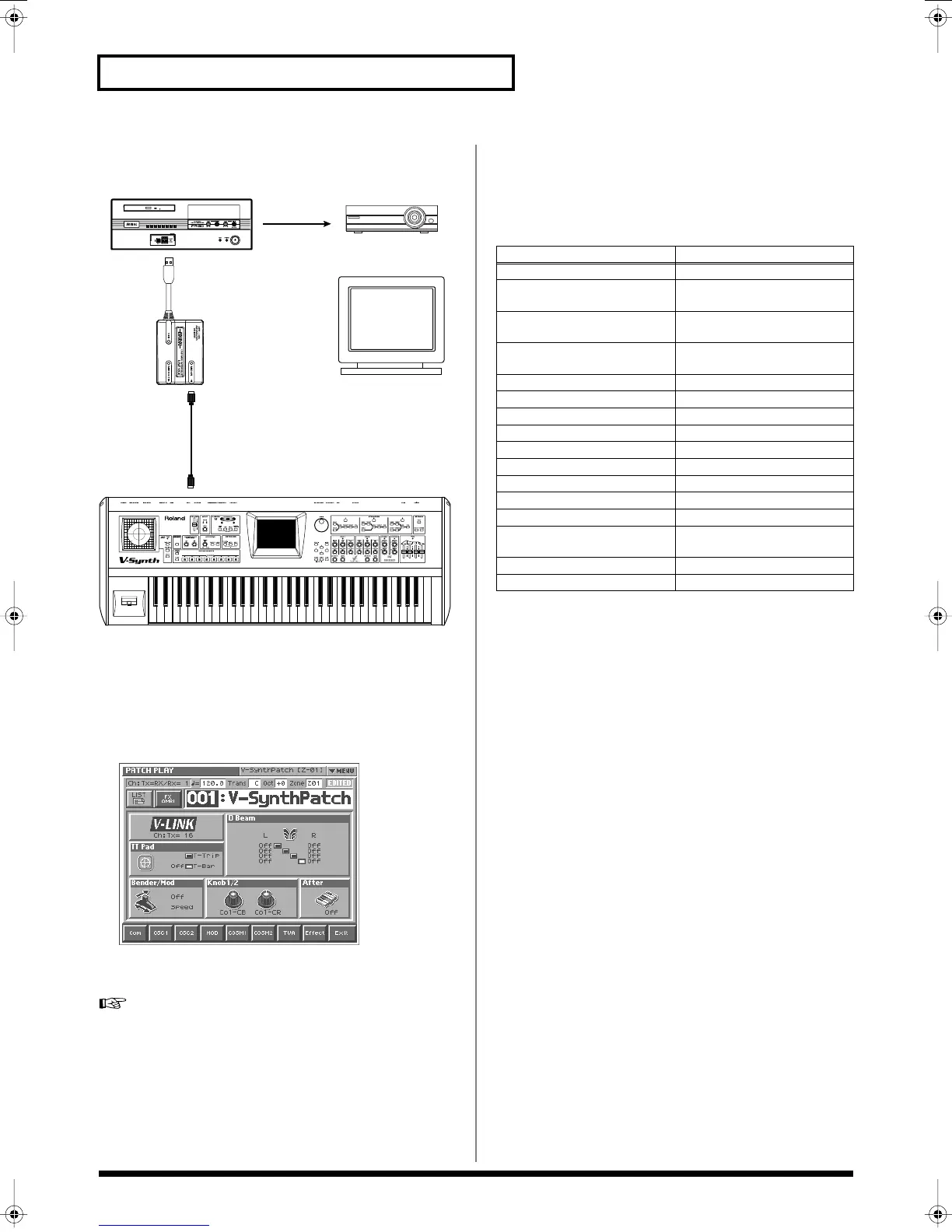

Example Connections
fig.02-18.e
Enter V-LINK Mode
1.
Press [V-LINK] so the indicator lights.
A PATCH PLAY screen like the one shown below appears, and
the V-Synth will enter V-LINK mode.
fig.02-19_50
In this screen you can view the V-LINK functions that are
assigned to the various controllers.
For details on how to assign V-LINK functions to the controllers,
refer to
“V-LINK Settings (V-LINK)”
(p. 128).
2.
To exit V-LINK mode, press [V-LINK] once again so the
indicator goes out.
V-LINK Functions that the V-Synth
Can Control and MIDI Messages
You can assign the following functions to the V-Synth’s controllers
to control a V-LINK compatible video device.
Display
V-Synth
Projector
Edirol PR-80
MIDI OUT
Edirol UM-1X
V-LINK function
Transmitted MIDI message
Playback Speed
CC 10 (Panpot)
Dissolve Time (amount time the
video clips overlap)
CC 5 (Portamento Time)
Audio (Volume of audio play-
back)
CC 7 (Volume)
Color Cb (color-difference sig-
nal)
CC 72 (Release)
Color Cr (color-difference signal) CC 71 (Resonance)
Brightness CC 74 (Cutoff)
VFX1 (Visual Effects 1) CC 1 (Modulation)
VFX2 (Visual Effects 2) CC 91 (Reverb)
VFX3 (Visual Effects 3) CC 94 (Celeste)
VFX4 (Visual Effects 4) CC 95 (Phaser)
Output Fade CC 73 (Attack)
T Bar CC 11 (Expression)
Dual Stream CC 64 (Hold 1)
Time Trip CC 92 (Tremolo)
CC 93 (Chorus)
Palette1–8 (Selecting a palette) CC 0 (Bank Select): 00H–07H
Clip1–8 (Selecting a video clip) Program Change: 00H–07H
