Effectivity: 914 Series
Edition 2 / Rev. 0
d04281
page 101
July 01/2008
BRP-Rotax
INSTALLATION MANUAL
04878
axis
connecting
nipple
x-axis
mm
y-axis
mm
z-axis
mm
cylinder side 1/3 -568 -180 -20
cylinder side 2/4 -590 180 -20
Drainage lines:
▲ WARNING: Connect draining lines without fail, otherwise emerging fuel
could drip onto the exhaust system. RISK OF FIRE!
- The lines have to be routed such that in case of damage the surplus fuel is
drained away suitably.
- Route the lines without kinks and avoid narrow bends.
- Route the lines with a continuous decline.
- The lines have to be protected against any kind of blockage e.g. by
formation of ice.
■ CAUTION: With closed or blocked drainage bores fuel could flow into
combustion chamber, possibly ruining the engine by hydraulic
lock.
RISK OF FIRE!!
Connecting nipple (1) of drainage line
outside dia. ø ............................ 6 mm (1/4")
slip-on length ............................ max. 17 mm (11/16")
■ CAUTION: Utilize the complete slip-on length. Secure hoses by suitable
screw clamps or by crimp connection.

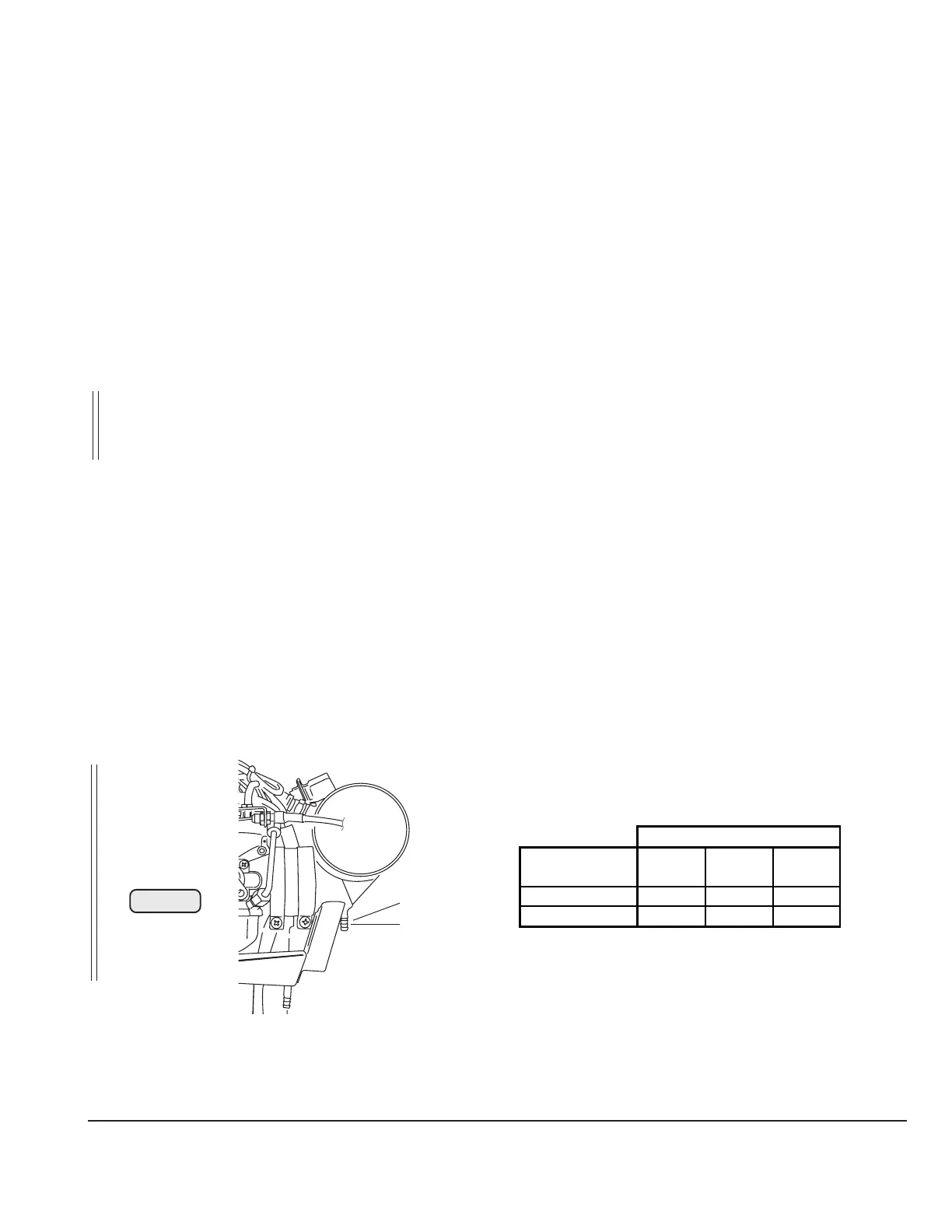

Location of connecting nipple P2:
Fig. 61
08415
P2
1
