Rotax 914 series Installation Manual

page 136
July 01/2008
Effectivity: 914 Series
Edition 2 / Rev. 0
d04283
INSTALLATION MANUAL
BRP-Rotax
Axes
x axis
mm
y axis
mm
z axis
mm
-465 87 -160
point of
engagement
P4
P4
M18x1,
2 (0,078 in.)
2,6 (0,102 in)
2,6 (0,102 in)
10 (0,39 in.)
16 (0,63 in.)
- installation dimensions: see Fig.
- reduction ratio: i = 4 i.e. 1/4 of engine speed

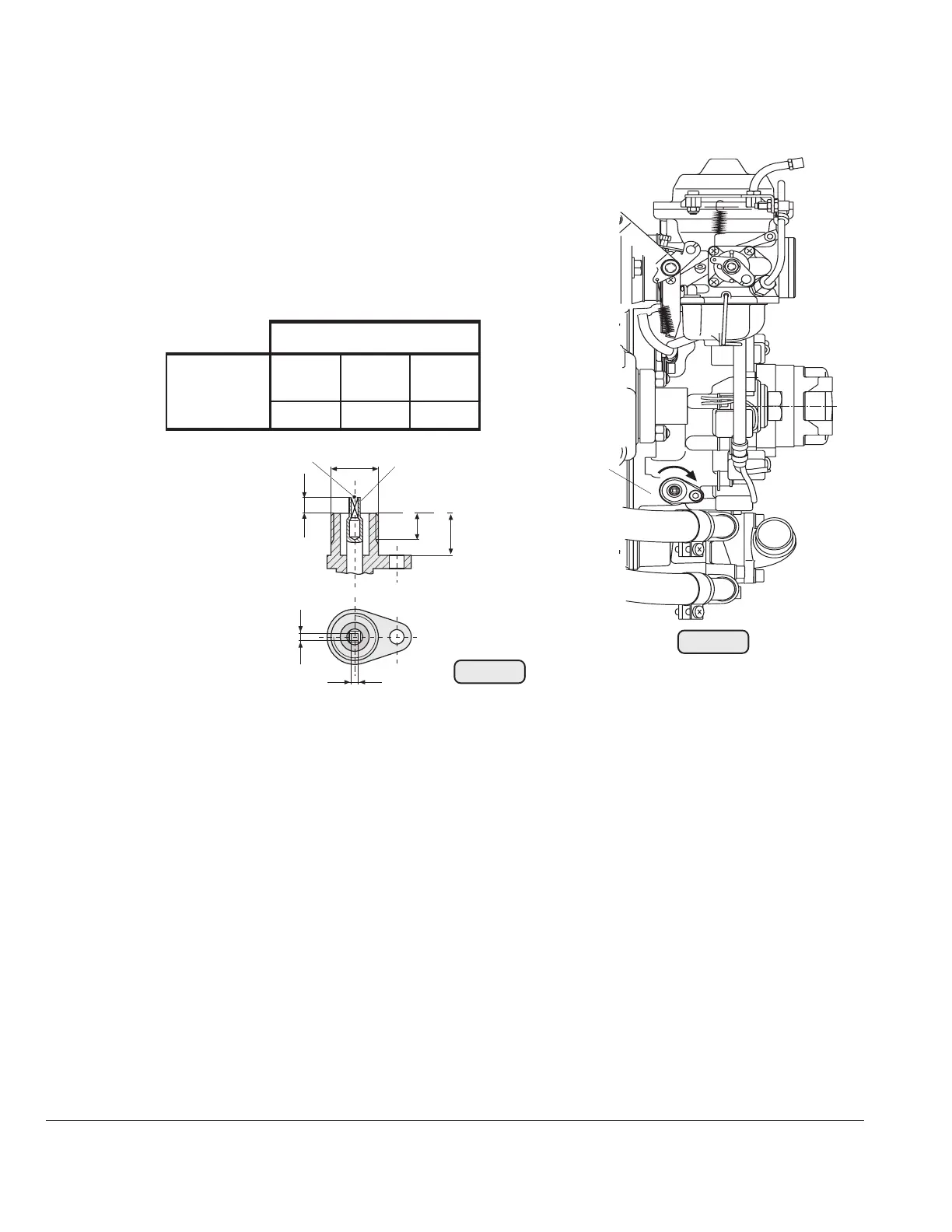

23.4) Mechanical rev-counter (tach drive)
See Fig. 95/96.
- location: ignition housing (1)
- direction of rotation of the
rev-counter shaft (2): clockwise,
see fig.
- position of rev-counter drive:
Fig. 96
Fig. 95
05483
00562
04871
2
1

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
