Rotax 914 series Installation Manual

Effectivity: 914 Series
Edition 2 / Rev. 0
d04277
page 53
July 01/2008
BRP-Rotax
INSTALLATION MANUAL
- water inlet bend (5): outside dia. 27 mm (1 1/16")
slip-on length max. 19 mm (3/4")

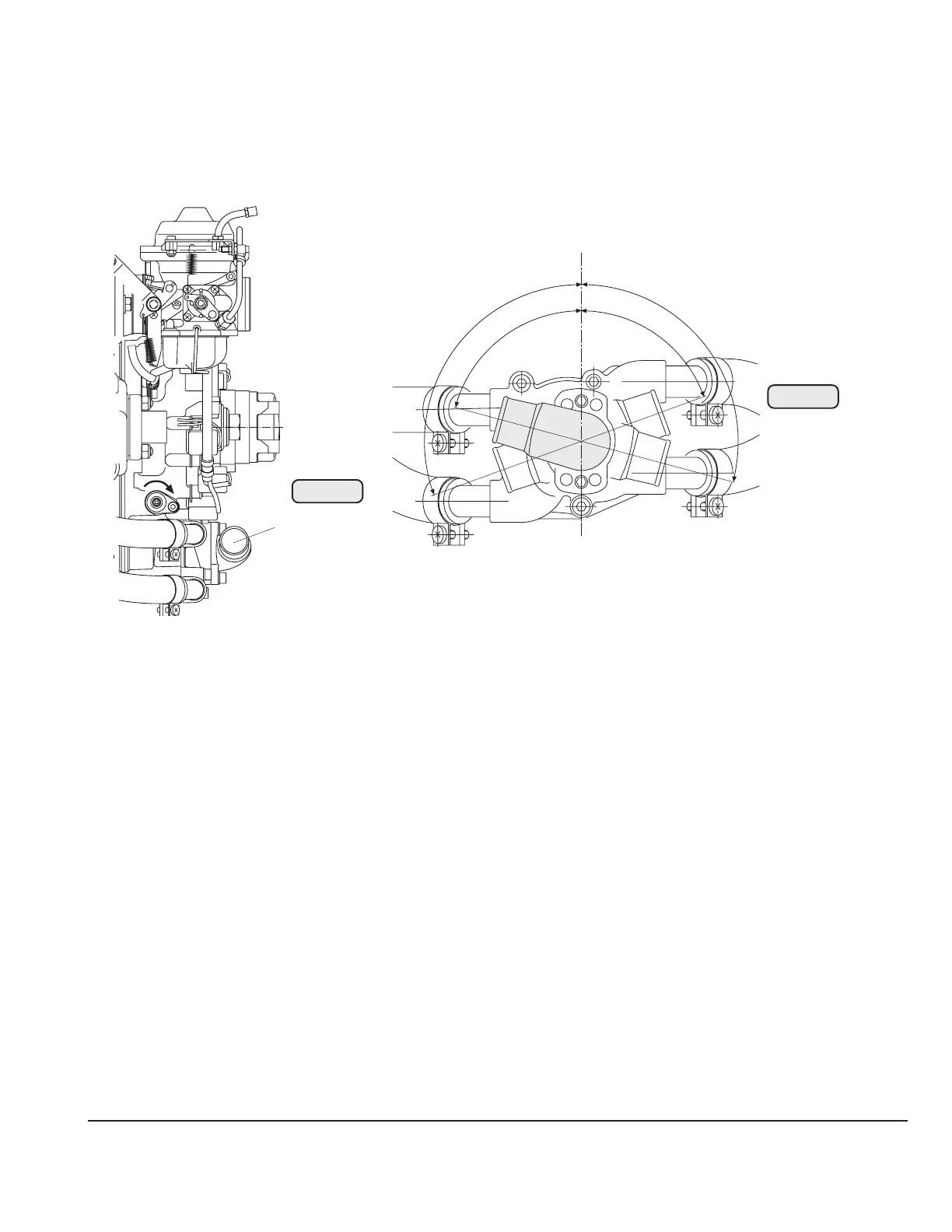

◆ NOTE: Choose between six possible fit-
ting positions of water inlet bend (5) appropriate to specific
installation (see Fig.).
The inlet bend is attached to the water pump by two Allen screws
M6x20 and lock washers. Tighten screws to 10 Nm (90 in.lb.).
■ CAUTION: Utilize total slip-on length for hose connection. Secure hoses with
suitable spring type clamp or screw clamp.
110°
105°
70°
75°
Fig. 21
Fig. 20
05536
00562
5

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
