page 94
July 01/2008
Effectivity: 914 Series
Edition 2 / Rev. 0
d04280
INSTALLATION MANUAL
BRP-Rotax
15.3) Requirements on cable actuation
See Fig. 58.
The two throttles have to be controlled by two separate Bowden cables working
synchronously.
Adjust the cables to a free travel of 1 mm (.04 in).
▲ WARNING: With throttle lever not connected the carb will remain fully open. The
home position of the CD-carburetor is full throttle!
Therefore never start engine without connecting throttle lever first.
▲ WARNING: Route Bowden cable in such a way that carb actuation will not be
influenced by any movement of engine or air frame, thus possibly
falsifying idle speed setting and carb synchronisation.
Adjust Bowden cable such that throttle and choke can be fully opened
and closed.
Use Bowden cable with minimized friction so that the spring on the
throttle can open the throttle completely. Otherwise increase preten-
sion of spring by bending lever flap (1) or fit a stronger return spring,
(2) or a cable with pull-push action would have to be used.
Secure the bowden cable sleeves (3) in the adjustment screws (4)
(e.g. safety wire)

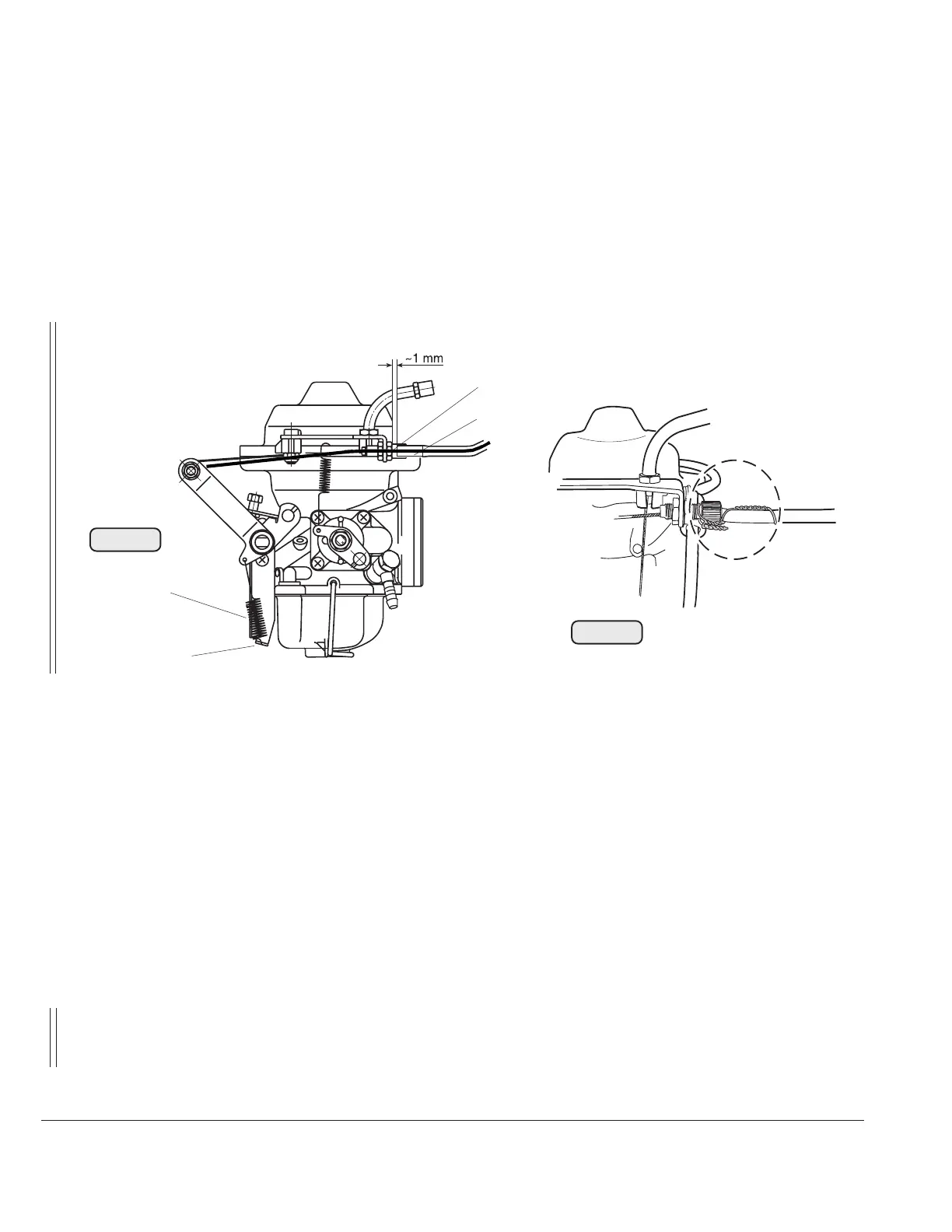

Fig. 58
1
2
3
4
08338
Fig. 57
08354
