Rotax 914 series Installation Manual

Effectivity: 914 Series
Edition 2 / Rev. 0
d04277
page 61
July 01/2008
BRP-Rotax
INSTALLATION MANUAL
04864
04876
Axes
x axis mm
(in.)
y axis mm
(in.)
z axis mm
(in.)
-300
(-11.81 in)
-30
(-1.18 in)
-14
(-0.55 in)
-300
(-11.81 in)
-30
(-1.18 in)
-14
(-0.55 in)
attachment
points
attachment points
max. allowable forces (limit
load) in (N) in x, y and z
axis
2 000
max. allowable bending
moment (limit load) in (Nm)
in x, y and z axis
50
min. length of thread
engagement (mm)
15 (0.59 in)
■ CAUTION: The stated limit loads are valid only at utilization of min
specified thread length, and must never be exceeded.
Depth of thread 18 mm (.71 in).
12.12)Data for optional components of cooling system
- overflow bottle

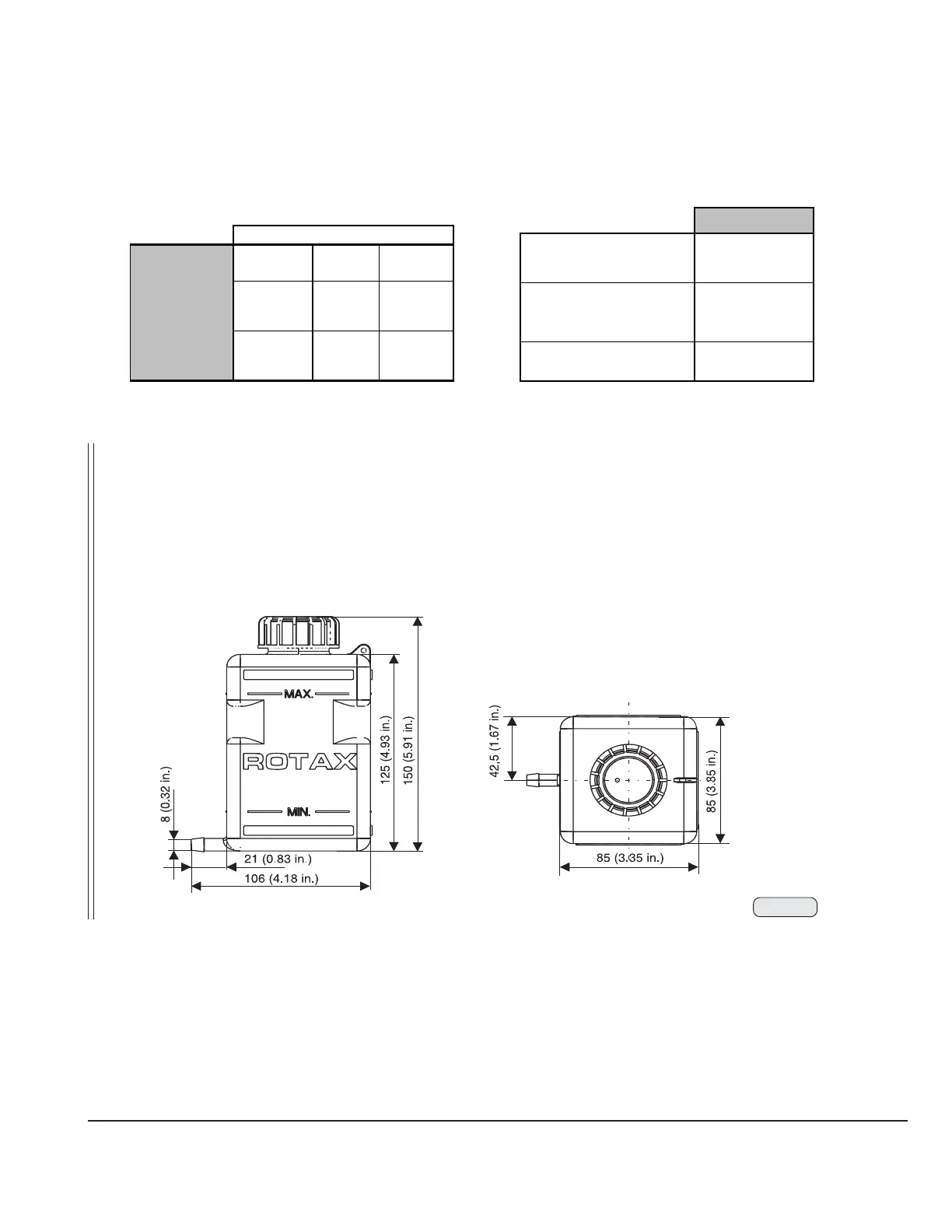

See Fig. 30.
Fig. 30
09148

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
