Rotax 914 series - 6) Starter Relay

Effectivity: 914 Series
Edition 2 / Rev. 0
d04282
page 117
July 01/2008
BRP-Rotax
INSTALLATION MANUAL
19.4.6) Starter relay
See Fig. 77.
- nominal voltage: 12 V
- control voltage: min. 6 V
max. 18 V
- switching current: max. 75 A (permanent)
max. 300 A (for 1 sec.)
- ambient temperature range:
min. – 40 °C (-40 °F)
max. +100 °C (214 °F)
- weight: see section 8.
- current connections (1):
M6 screw (tightening torque 4 Nm (35 in.lb)) suitable for ring termi-
nals to DIN 46225 (MIL-T-7928, PIDG or equivalent)
- control wiring (2):
plug connector 6,3x0,8 suitable for spade connector to DIN 46247 (MIL-
T-7928, PIDG or equivalent)
- grounding: via housing
■ CAUTION: Activation of start relay limited to short duration. Over a
period of 4 min. operation, the duty cycle is 25%.

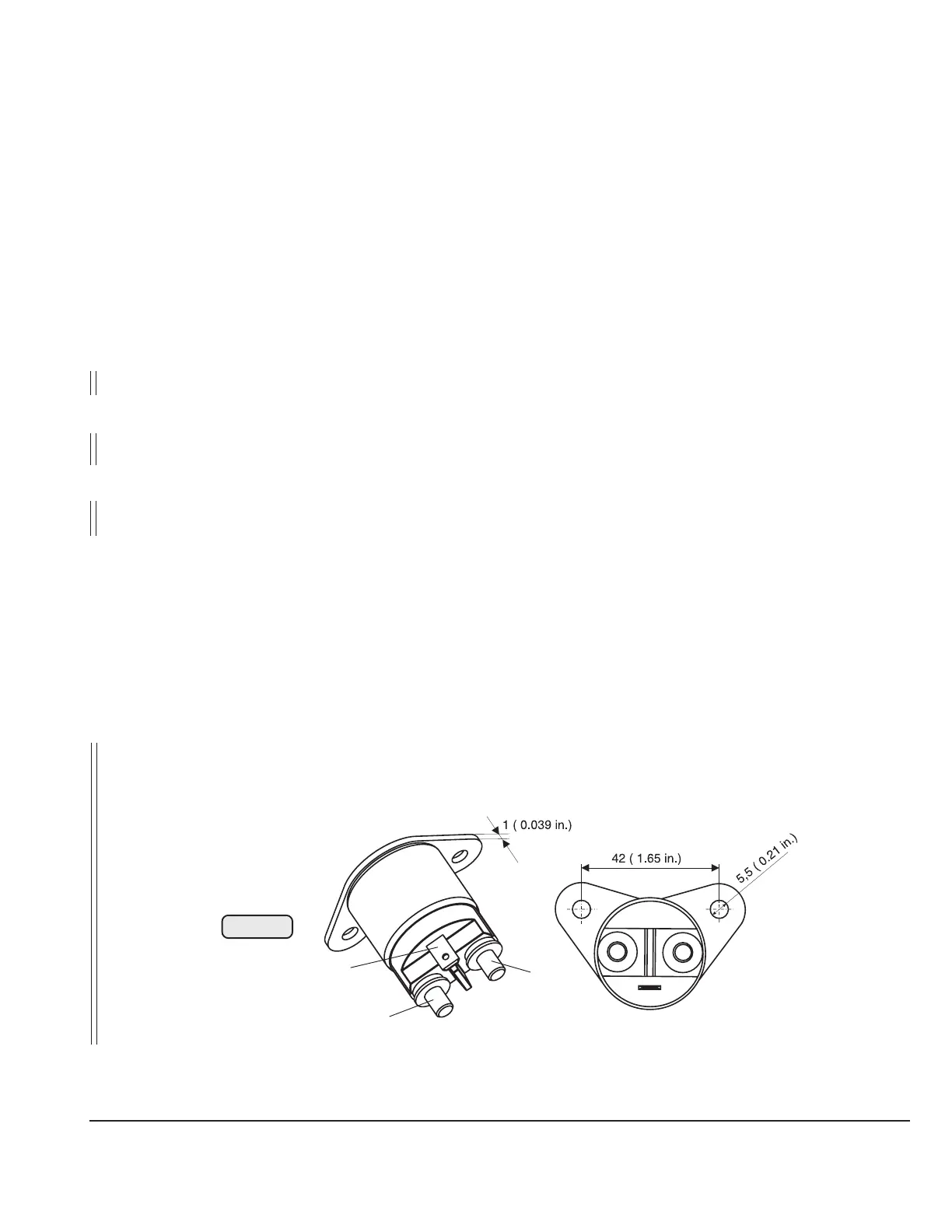

Fig. 77
09169
1
2
1
