Rotax 914 series - 2) Oil Circuit (Turbo Charger)

Effectivity: 914 Series
Edition 2 / Rev. 0
d04278
page 71
July 01/2008
BRP-Rotax
INSTALLATION MANUAL
13.5.2) Oil circuit (turbo charger)
See Fig. 41.
Oil return
hose nipple (4) .......................... 4/6 DIN 7642
outside dia. ............................... 8 mm (.31 in)
slip-on length ............................ max. 20 mm (.79 in)
Tightening torque of banjo bolt (5) M10x1x19: ......... 15 Nm (133 in.lb)

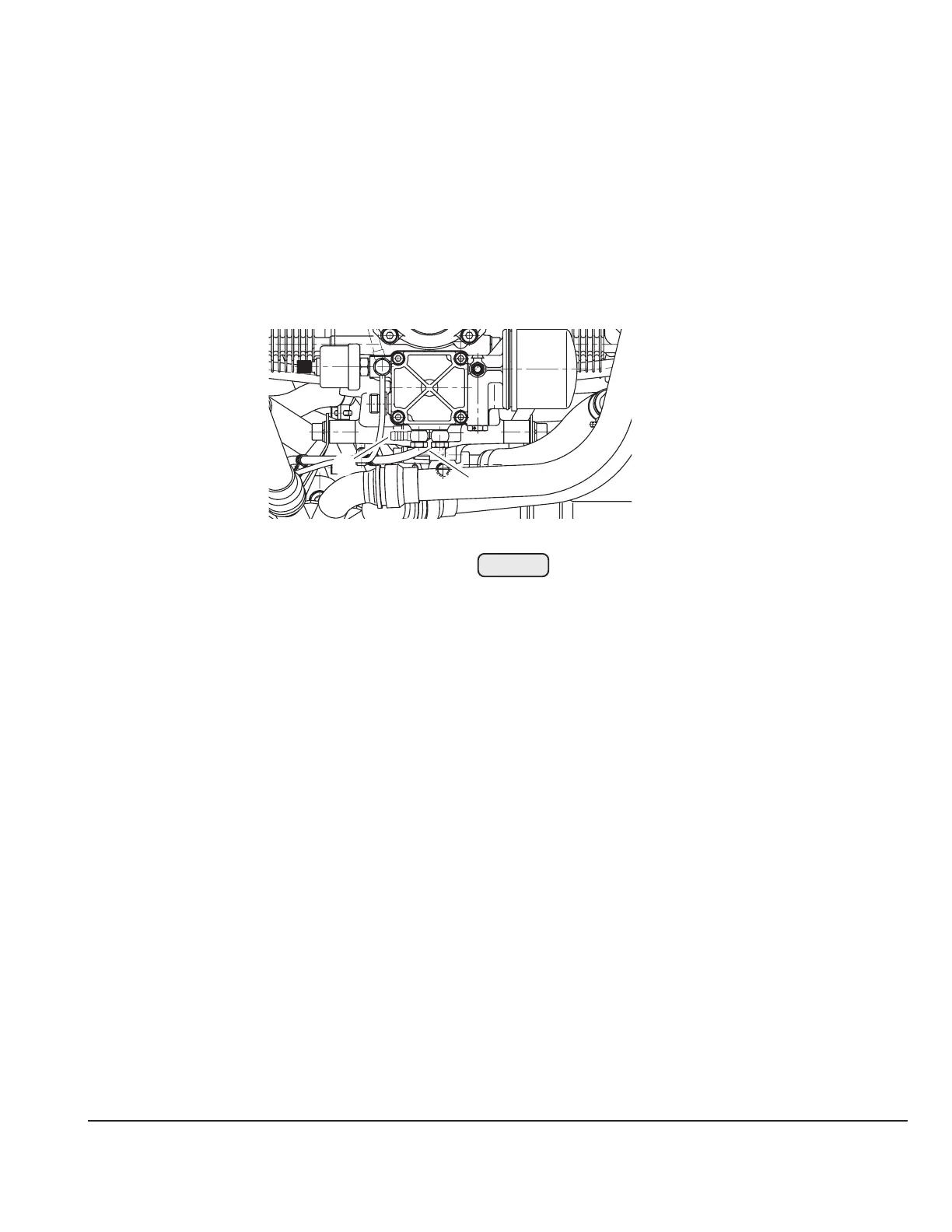

Fig. 41
02468
5
4
