Rotax 914 series Installation Manual

Effectivity: 914 Series
Edition 2 / Rev. 0
d04282
page 123
July 01/2008
BRP-Rotax
INSTALLATION MANUAL
19.4.12)External alternator (optional extra)
See Fig. 81/82/83.
- output: max. 600 W DC at 6000 r.p.m.
- voltage: 14,2 V – 14,8 V
- ambient temperature range: min. - 30 °C (-22 °F)
max. +90 °C (194 °F)
◆ NOTE: Voltage regulator is integrated in the alternator.

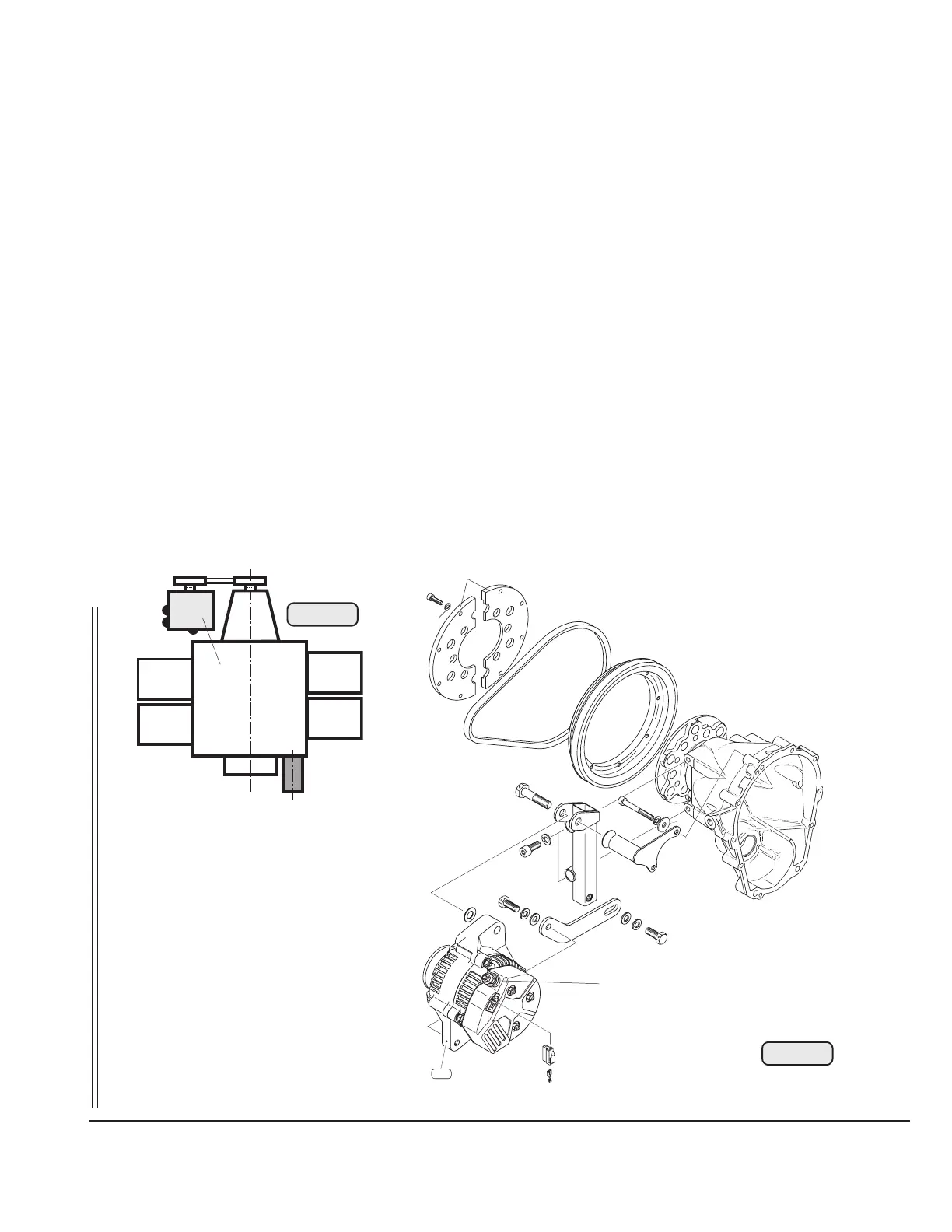

Feeding wiring to external alternator (1) located on the outside of propeller
gear (see Fig. 81).
- plus terminal (2): M6 screw suitable for ring terminal to DIN 46225
(tightening torque 4 Nm (35 in.lb))
- grounding: via engine block mount bracket
- control wiring (field circuit) (3) and warning lamp circuit (4):
via supplied standard plug (Sumitomo 6111-2568)
IG
L
B
Cyl. 1
Cyl. 3
Cyl. 2
Cyl. 4
Fig. 81
03199
1
XXX
Fig. 82
04902
2
3

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
