Rotax 914 series Installation Manual

page 90
July 01/2008
Effectivity: 914 Series
Edition 2 / Rev. 0
d04279
INSTALLATION MANUAL
BRP-Rotax
14.5) Notes on checking of fuel pressure
See Fig. 52.
There is no standard connection provided to measure the full pressure. For general
observation and at engine troubles fuel pressure readings would be helpful.
A feasible connection would be an additional hose nipple 4/6 (1) joined to the fuel line
(2).
- remove banjo bolt M10x1x19. Fit additional hose nipple (with integrated orifice) (1)
and 2 sealing rings (3) by use of a longer banjo bolt (4) M10x1x30.
Tightening torque of the banjo bolt: 15 Nm (133 in.lb).
■ CAUTION: At tightening of the fuel lines (2) support the specific line, to prevent any
internal stresses.
◆ NOTE: The Fig. 34 shows the additional ring hose nipple connected to fuel line
of carburetor 1/3 (1). This ring hose nipple may be also fitted on the fuel
line 2/4 (7), but not on the outlet (5) and inlet (6).
All the necessary items are available as spare parts.

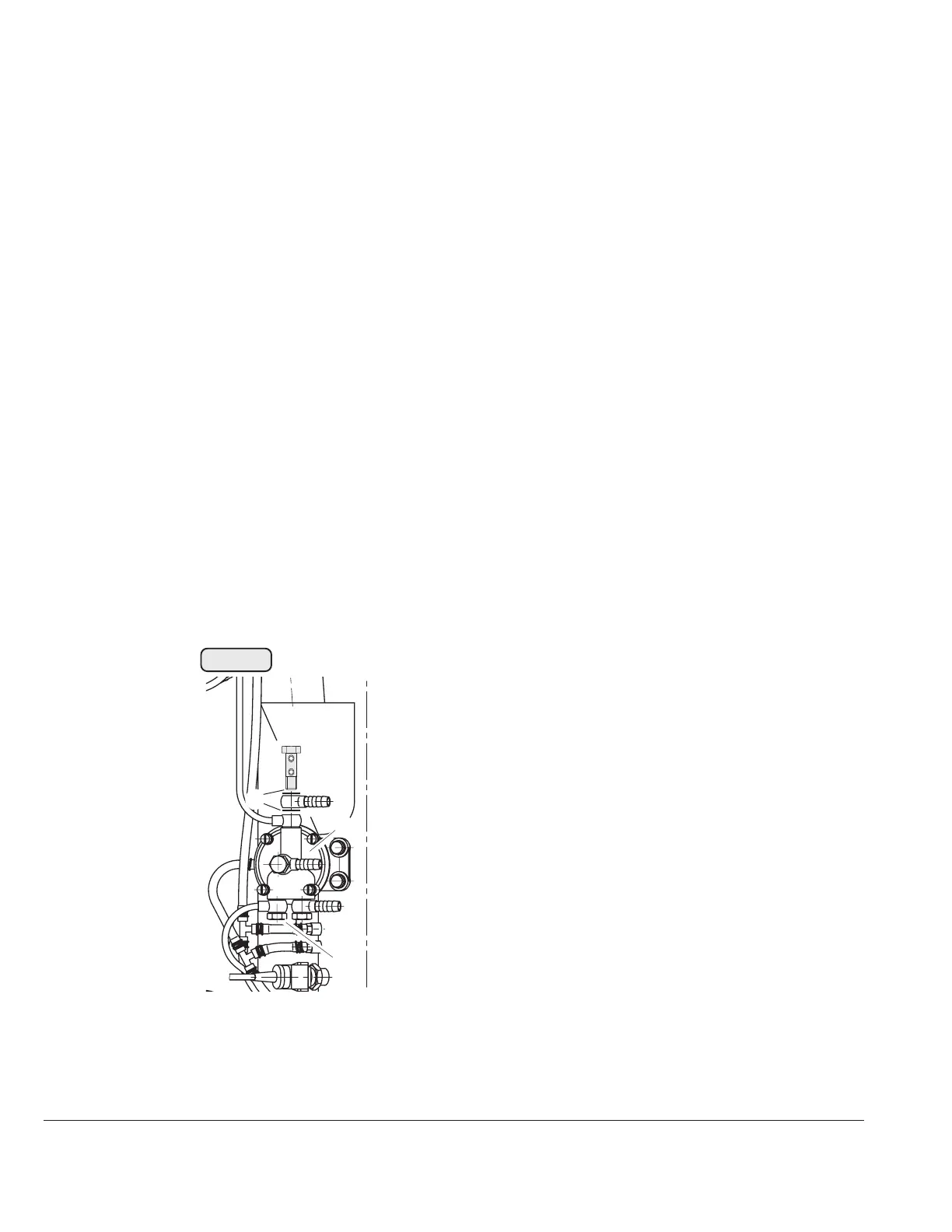

Fig. 52
02476
2
4
1
3
7
6
5

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
