◆ NOTE: Faston connector and insulation sheath of the old version
are available as spare part. See also SI-914-016, latest
issue.
◆ NOTE: One each cable grommet (2) and flat pin terminal (3) are
supplied loosely packed.
For correct assembly of the flat pin terminal strip the wire
(4) and install the cable grommet in correct position and
direction. Fix the flat pin terminal and the cable grommet
with appropriate crimping pliers. The rubber grommet is
held by the secondary crimp. Fit the flat pin terminal in the
free position of the 6-pole connector housing until it is
locked in place. Check for tight fit.

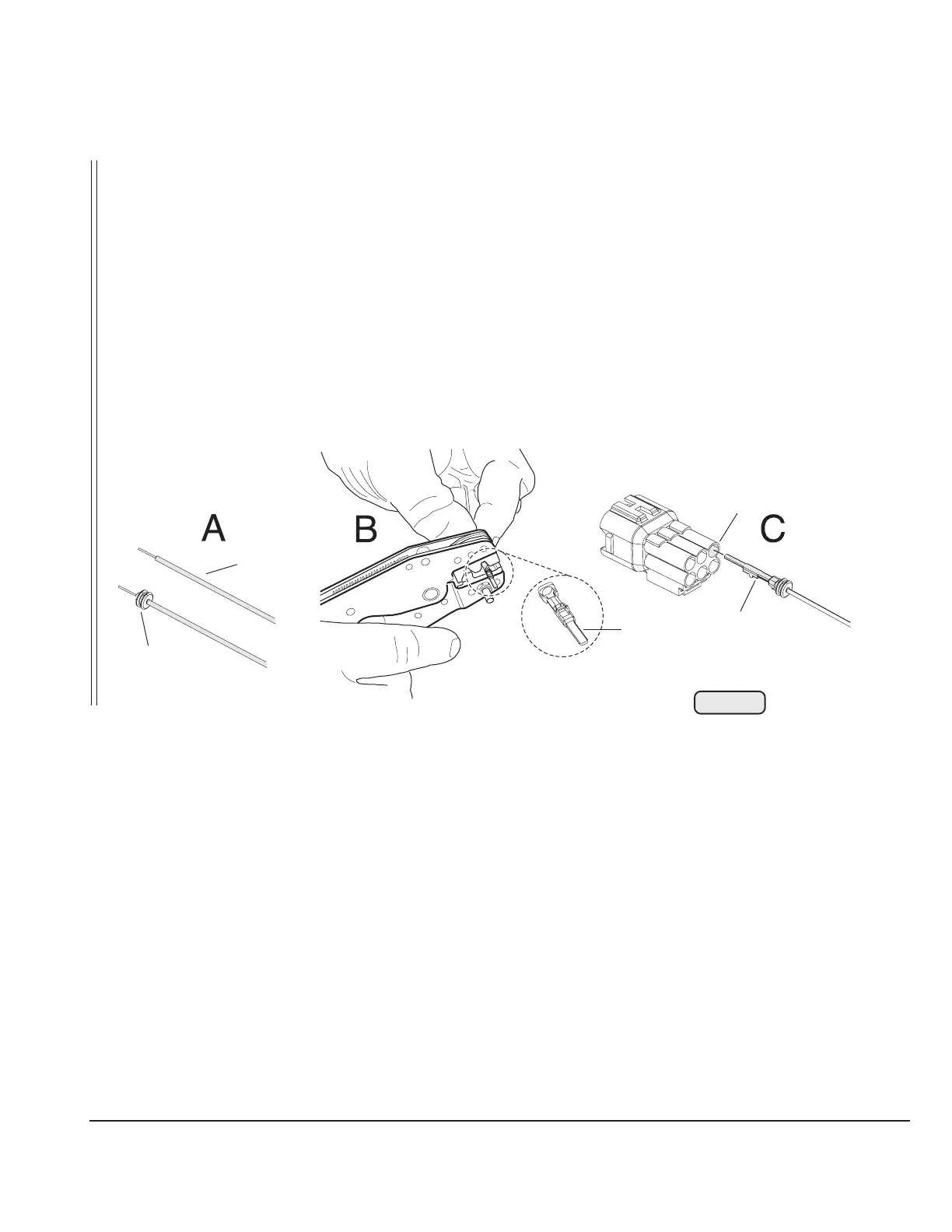

Fig. 74
4
5
2
3
3
08323
