Rotax 914 series Installation Manual

page 56
July 01/2008
Effectivity: 914 Series
Edition 2 / Rev. 0
d04277
INSTALLATION MANUAL
BRP-Rotax

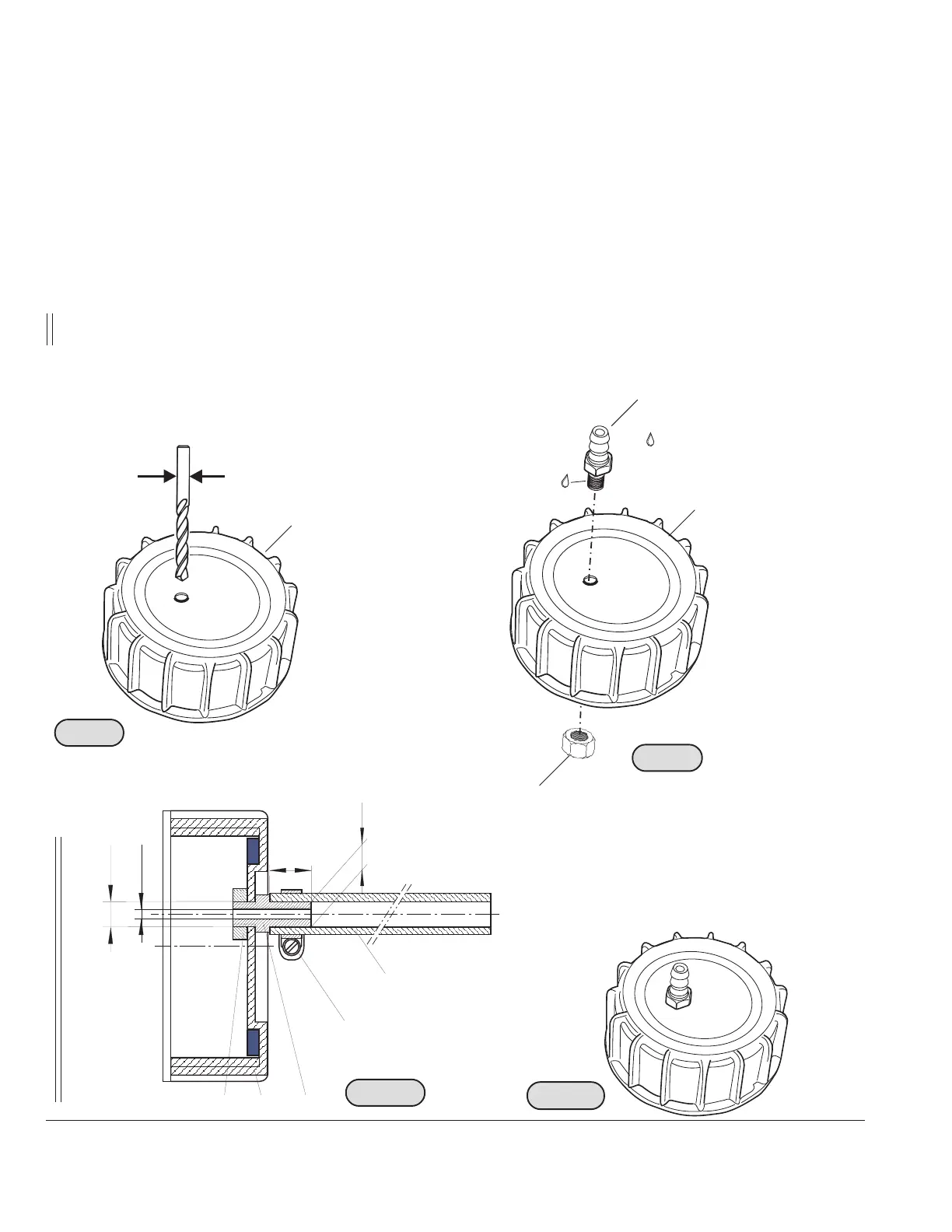

- Unscrew cap (2) from the overflow bottle.
- Bore the existing vent hole from dia. 2.5 mm (0.1 in.) to dia. 6 mm (0.236 in.)
- Apply LOCTITE
®
603 to the threads of the hose nipple (3).
- Insert nipple (3) into the vent hole.
- Install nut (1) onto the hose nipple (3). Tightening torque 5 Nm (44 in lb).
- Screw the cap onto the overflow bottle.
Steps to attach the hose:
- Attach the hose with a Jubilee hose clamp (4) or with a spring type hose clip.
- Make sure the hose (5) has no kinks. Route it overboard and secure.
05039
LOCTITE
®
603
Ø 6mm (0. 236 in)
05294
05295
3
1
2
2
11,5mm
(0.453 in)
Ø
6
(0.236 in)
mm
Ø
3
(0.118 in)
mm
Ø
6
(0.236 in)
mm
1 2 3
4
5
05033
Fig. 24
Fig. 25
Fig. 26
Fig. 27

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
