Rotax 914 series Installation Manual

page 84
July 01/2008
Effectivity: 914 Series
Edition 2 / Rev. 0
d04279
INSTALLATION MANUAL
BRP-Rotax

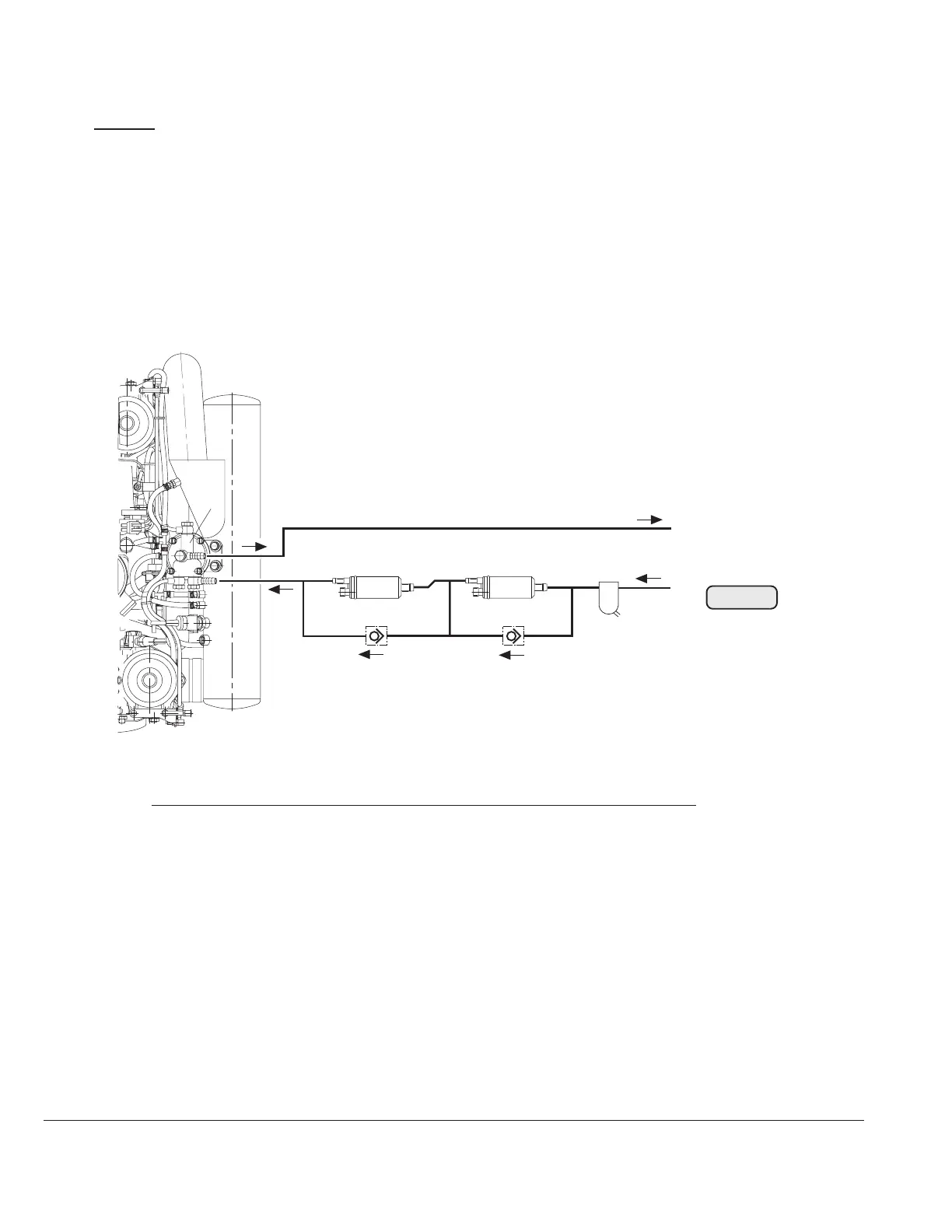

Fig. 48
04852
AUX MAIN
3
2
2
66
1
4
5
legend:
(1) fine filter/watertrap gascolator
(2) 2 x electric fuel pump
(3) fuel pressure control
(4) feeding line from tank
(5) return line to tank
(6) 2 x check valve
Only the following connections per Fig. 48 have to be established:
- Feeding lines to suction side of the electric fuel pumps (2)
- Lines from pressure side of the electric fuel pump to inlet of fuel pressure control (3)
- Returnline from fuel pressure control to fuel tank

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
