ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-24

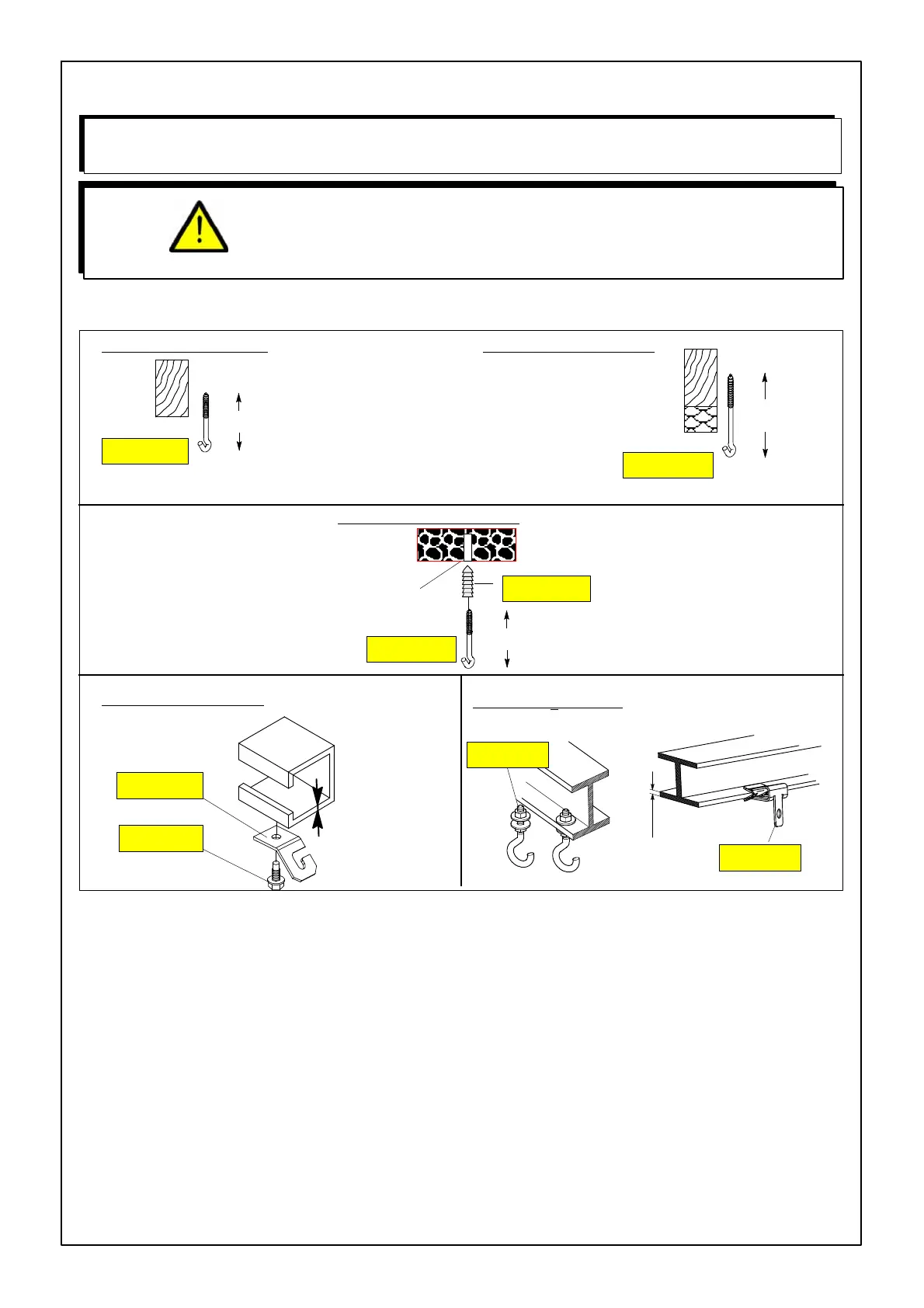

TO INSTALL THE SUSPENSION POINTS
- MAKE SURE THAT SUSPENSIONS ARE FIRMLY FIXED.
- INSTALL SUSPENSION POINTS IN A STRAIGHT LINE.
EACH SUSPENSION POINT SHOULD BE ABLE TO HOLD A LOAD OF 50KG.
(100KG AT THE POWER UNIT).
DANGER
Drill a small hole in HARD WOOD.
This will prevent screw hooks from breaking off.
IN A METAL GIRDER
:
Use a drilling machine with our special driver forscrew
hooks.
FIGURE 29.
INAWOODENBEAM
:
90mm
WOOD : + INSULATION
160mm
05000872
05000237
FIGURE 30.
FIGURE 31.
IN A CONCRETE BEAM
:
FIGURE 32.
Drill a hole dia. 10mm
00103069
20102034
05000872
FIGURE 33.
IN METAL I GIRDER
05000302
20104220
8-13mm
2,5 - 6mm
Profile thickness
SUSPENSION COMPONENTS
90mm
00103077
