FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-47

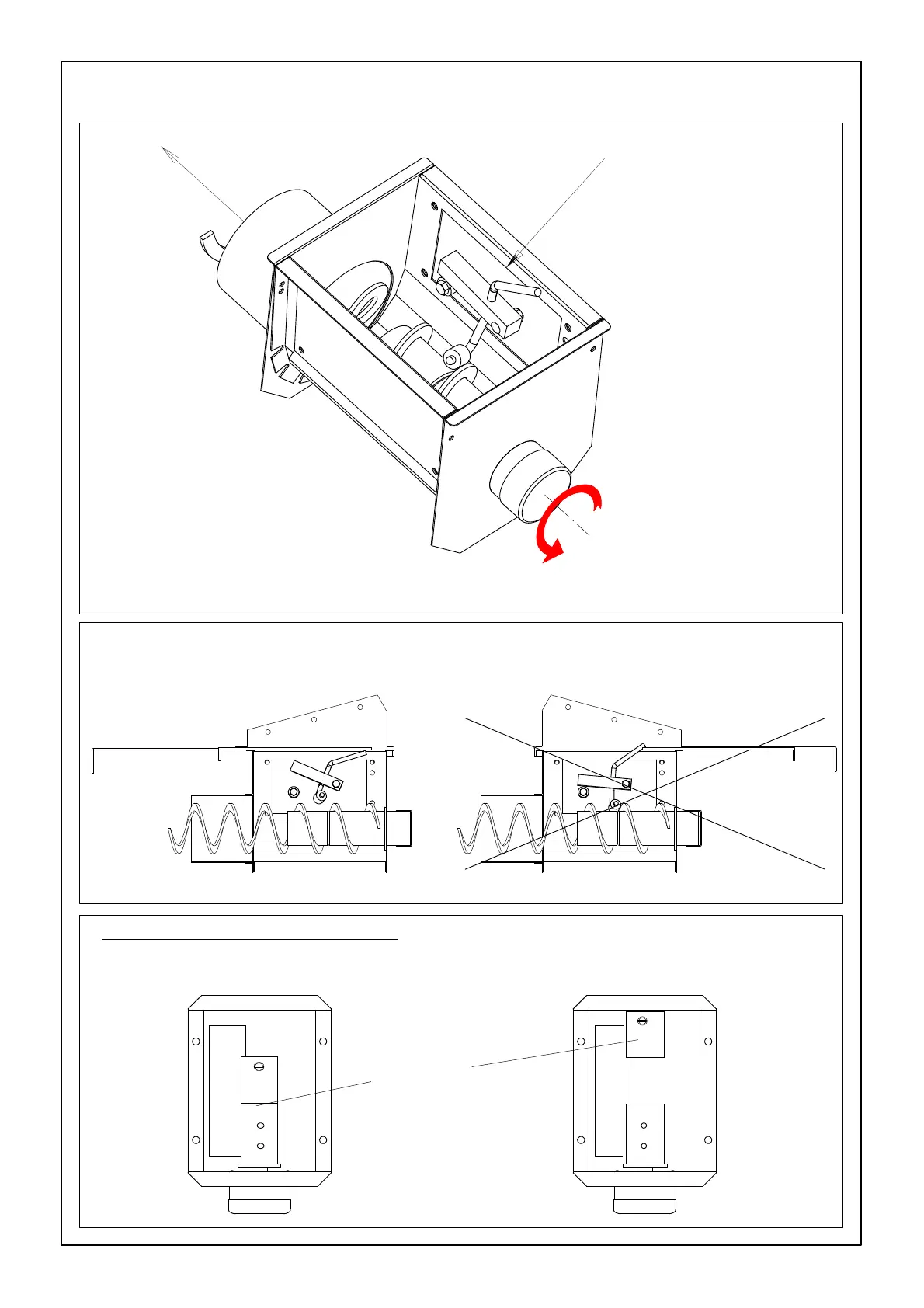

FIGURE 100.
Check if the rotation direction of the auger is counterclockwise (looking
from the bin to the control unit).
Install the thumper on the right side of the boot (looking
from the bin to the control unit).
Control unit
TO INSTALL THE THUMPER - FLOW REGULATION - MODEL 125
FIGURE 101. FIGURE 102.
Install the transition plate in such a way that the slide is
on the side of the control unit.
You lift up the thumper when you close the slide.
Youcannotclosetheslidewhenitisinstalled
on the wrong side.
FIGURE 103.
FLOW REGULATION WITH MODEL 125
:
Flow regulator in the boot, as supplied standard.
FIGURE 104.
Maximum feed flow. Minimum feed flow.
Flow regulator
