Roxell FLEX-AUGER FA 75 - TO MAKE THE DROP HOLES IN THE TUBES

ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-29

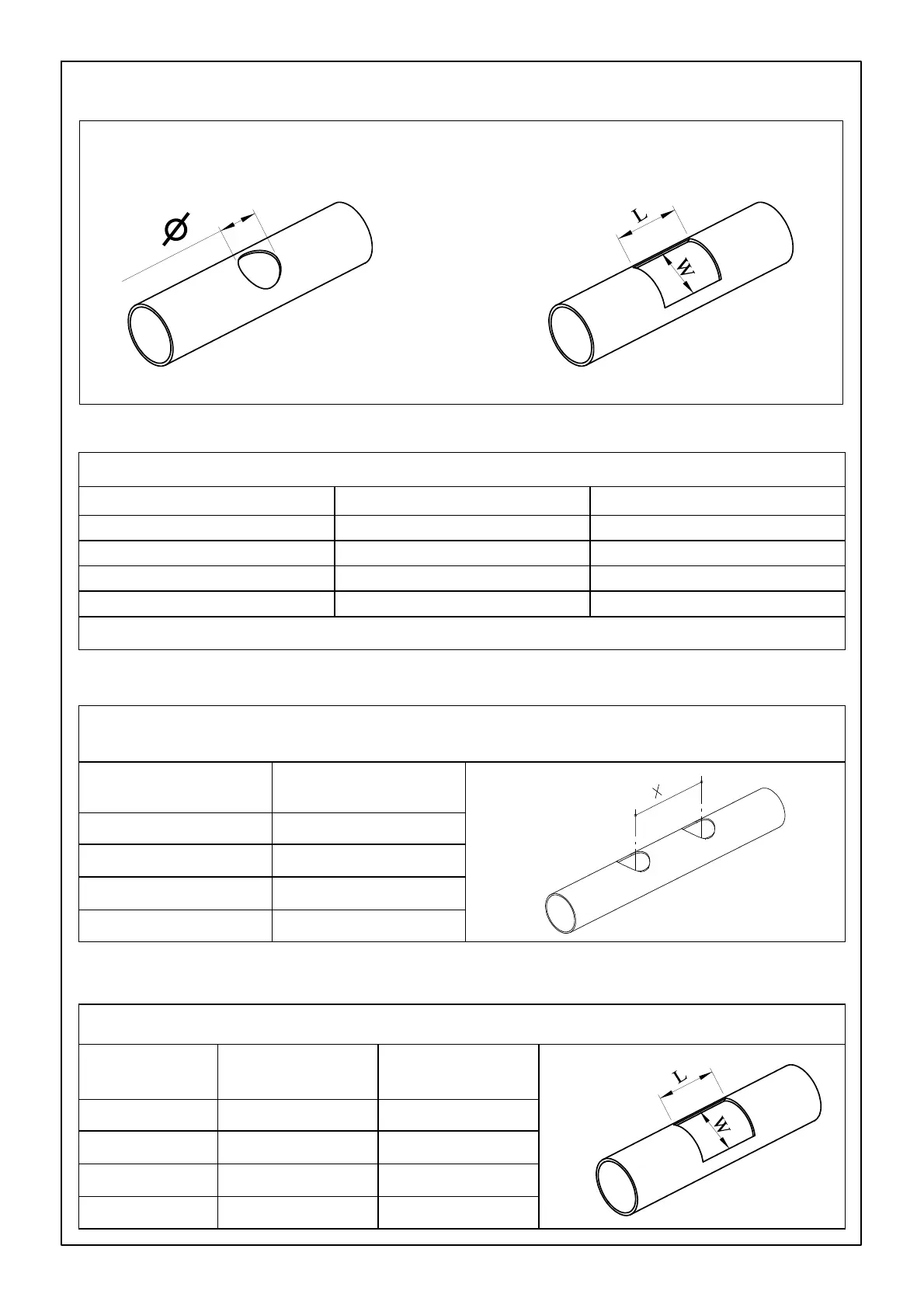

FIGURE 41. FIGURE 42.
Use a hole saw.
Make holes well aligned per tube.
Option : if you only have a hand saw or a grinder
available, make square holes in the tubes.
DIAMETER
TO MAKE THE DROP HOLES IN THE TUBES
DROP HOLE DIMENSIONS
FLEX AUGER

DIAMETER
LXW
MODEL 55 40MM 40MM X 40 MM
MODEL 75 60MM 60MM X 60MM
MODEL 90 76MM 76MM X 76MM
MODEL 125 108MM 108MM X 108MM
MAKE SURE THAT HOLES IN A TUBE ARE IN A STRAIGHT LINE.
IF YOU HAVE TWO ROWS OF FEEDING TROUGHS : INSTALL OUTLETS IN PA IRS AT
THE FOLLOWING DISTANCES :
FLEX AUGER

MINIMUM DISTANCE
BETWEEN HOLES (X)
FIGURE 43.
MODEL 55 106mm
MODEL 75 116mm
MODEL 90 125mm
MODEL 125 250mm
HOLE FOR MAXIMUM FEED DROP OUT
FLEX AUGER

MAX. HOLE
LENGTH (L)
MAX. HOLE WIDTH
(W)
FIGURE 44.
MODEL 55 70mm 40mm
MODEL 75 80mm 60mm
MODEL 90 80mm 76mm
MODEL 125 108mm 108mm
