Roxell FLEX-AUGER FA 75 - Tandem in Line Fa 75 - 03103876

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-33
Ke y Nam e Par t Nr . Qt .
1 INTAKE BOOT & CLOSING PLATE 13108022 2
1.1 BOOT BODY WELDMENT FA 75 13108030 1
1.2 E-RING Ø5-DIN 6799-A2 S.S 20102018 1
1.3 GASKET 15X2 30800874 1
1.4 ROXELL DECAL - 160X40 10101129 1
1.5 DECAL - HANDS WARNING 13106596 1
1.6 CLOSING PLATE 13107776 1
1.7 FIBER RING 20104287 1
1.8 NUT M10 - DIN 934 20100277 1
1.9 CLOSING PROFILE 13107768 1
1.1 CLOSING BOLT - BRASS SMAL 13108154 1
1.11 HARDWARE KIT 13108055 1
1.11.1 NUT M8 DIN 934 - SP 20200119 4
1.11.2 SEAL CAP M8 16103699 4
1.11.3 KNURLED KNOB 13107842 1
1.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
2 A NCHOR & BEARING A SS'Y FA 75 13109796 1
2.1 A NCHOR&BEA RING SHA FT FA 75-90 13109780 1
2.2 A NCHOR TUBE WELDMENT DIA .36 13109788 1
2.3 BEARING 17X35X10 - 6003 LLU 13201066 1
2.4 SET SCREW M8X10 - DIN 916 20100434 2
2.5 CLAMP PIN 13100482 1
2.6 BEARING HOLDER CAP DOWN - Ø75 13109632 1
2.7 BEARING HOLDER CAP UP - Ø75 13109624 1
2.8 SEEGER RING Ø17X1 20101333 1
2.9 HOSE CLAMP ASSEMBLY Ø70-90 03100658 1
2.1 BOLT M6X12 - DIN 933-8.8 20100160 2
2.11 LOCKNUT M6 - DIN 985 20100400 3
2.12 BOLT M6X40 - DIN 931-8.8 20100558 1
3 TUBE CONNECTOR Ø75MM 03100583 1
5 COUPLING FOR TUBE Ø32x1.2MM 13109812 1
6 LOCKNUT M6 - DIN 985 20100400 2
7 BOLT M6X40 - DIN 931-8.8 20100558 2
8 GUIDE PIECE F/ RESTR.TUBE FA75 13109160 1
9 SOCKET CAP SCREW M6X10 - DIN 912 20101713 1

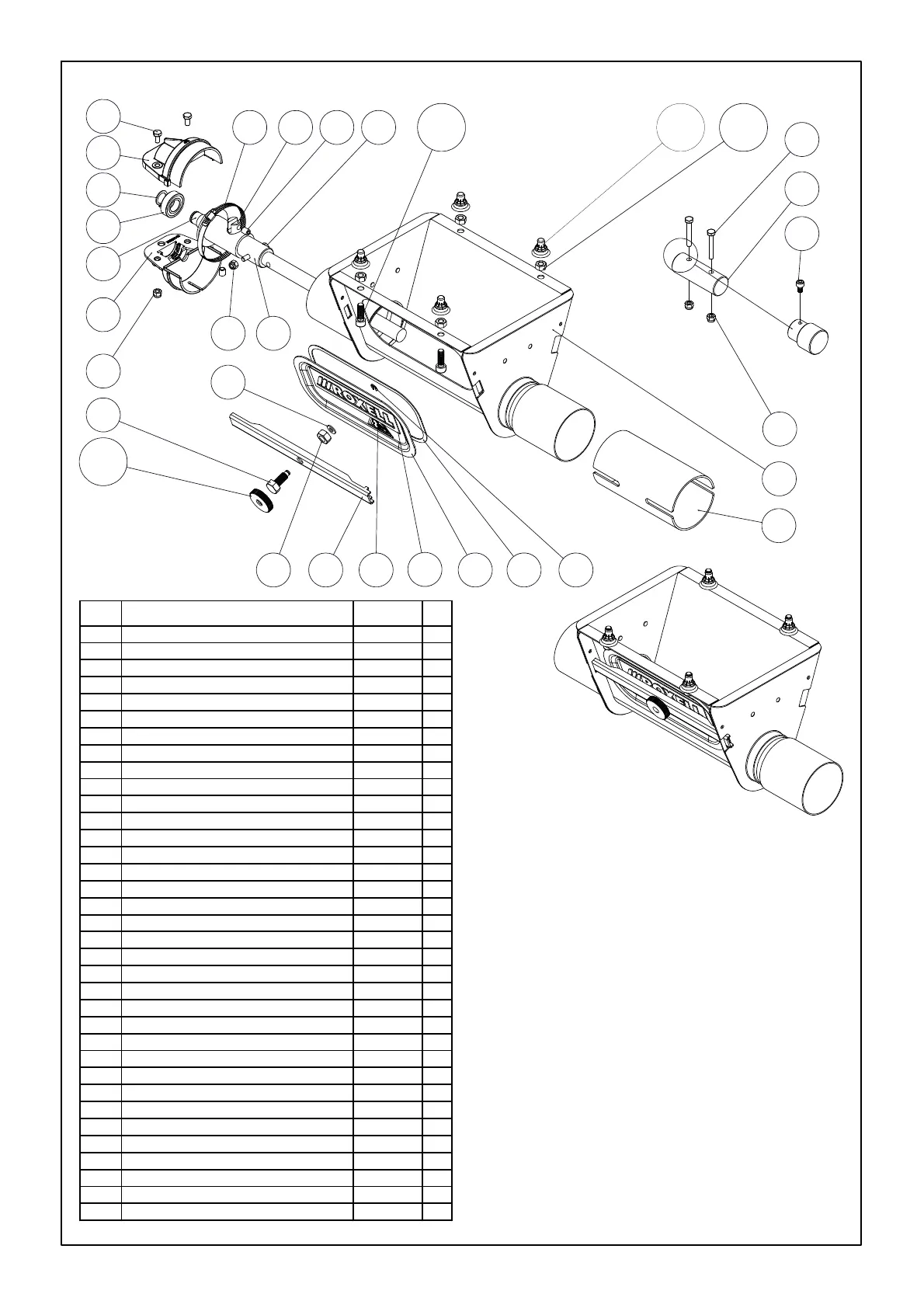

TANDEM IN LINE FA 75 - 03103876
3
1.1
1.21.31.6
1.4
1.5
1.7
1.8 1.9
1.10
1.11.3
1.11.2 1.11.11.11.4
2.1
2.42.9 2.5
2.10
2.7
2.8
2.3
2.6
2.11
2.11
2.12
2.2
7
5
6
9
8
