Roxell FLEX-AUGER FA 75 - Control Unit W;O Safety Switch Fa 55 - 03501244

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-9
7
53
2
6.1
6.4
6.3
6.2
4
1
6.5
8

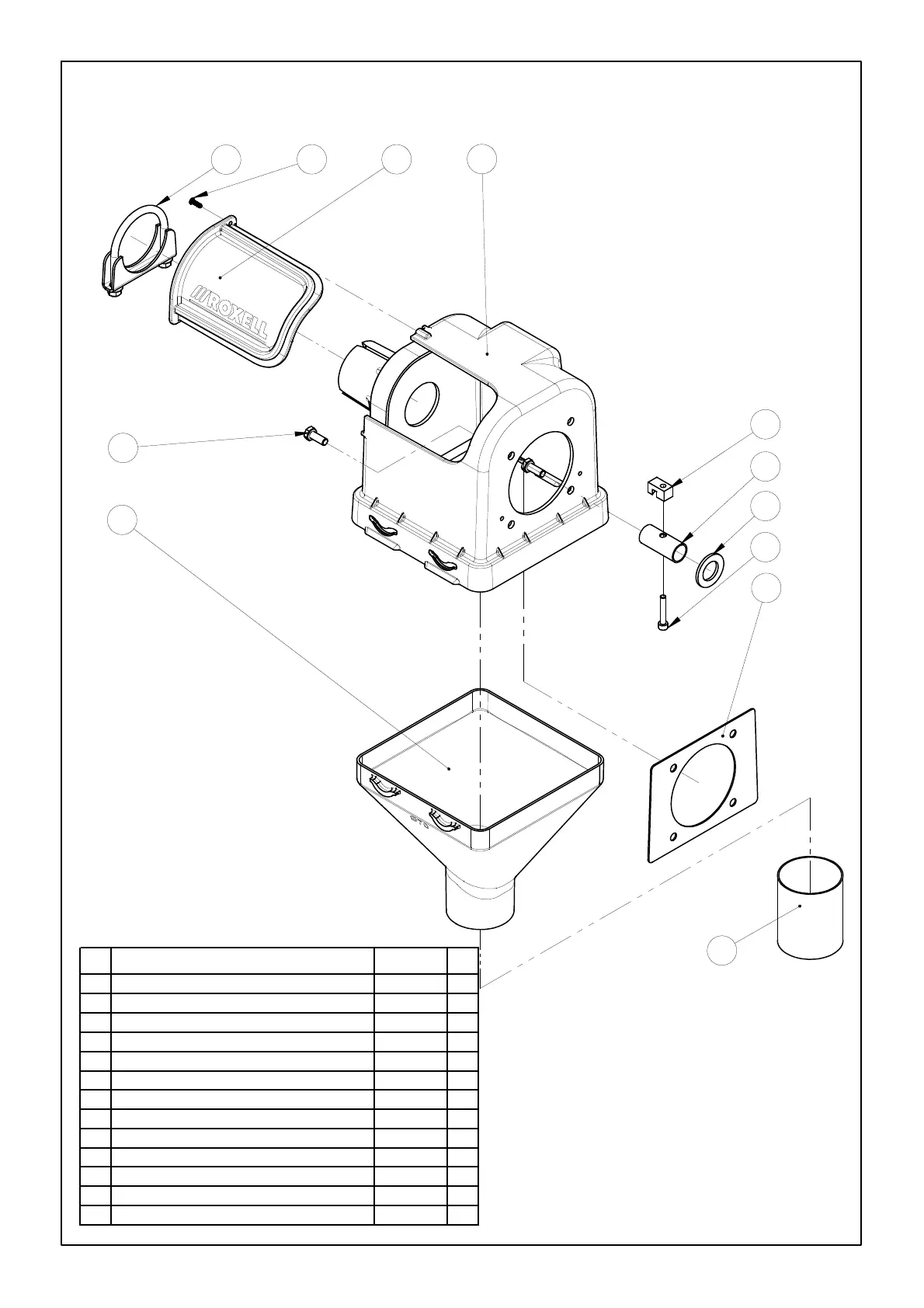

CONTROL UNIT W/O SAFETY SWITCH FA 55 - 03501244
Key Nam e Part Nr. Qt.
5 DROP FOR DROP TUBE Ø70 13502174 1
2 HOUSING - CONTROL UNIT Ø56 13502166 1
3 WINDOW 13000500 1
4 REINFORCEMENT PLATE Ø56-75-90-MOTOR 13109046 1
5 THREAD FORMING SCREW 4X12-A2 12502043 1
6 HARDWARE KIT CU FA 55 13502208 1
6.1 DRIVE BLOCK 10100782 1
6.2 SOCKET CAP SCREW M6X35 DIN 912 20102158 1
6.3 GALV.WASHER Ø39X23X3 20103842 1
6.4 DRIVE TUBE 13500434 1
6.5 BOLT M8X20 - DIN 933-8.8 20200150 4
7 TUBE CLAMP ASSEMBLY Ø67MM 03501293 1
8 INSERT TUBE FOR DROP Ø70MM 13000534 1
