Roxell FLEX-AUGER FA 75 - TO INSTALL THE TUBES

ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-30
TO INSTALL THE TUBES
ALWAYS START FROM THE CONTROL UNIT. NEVER USE AN OUTLET TO CONNECT THE TUBES.

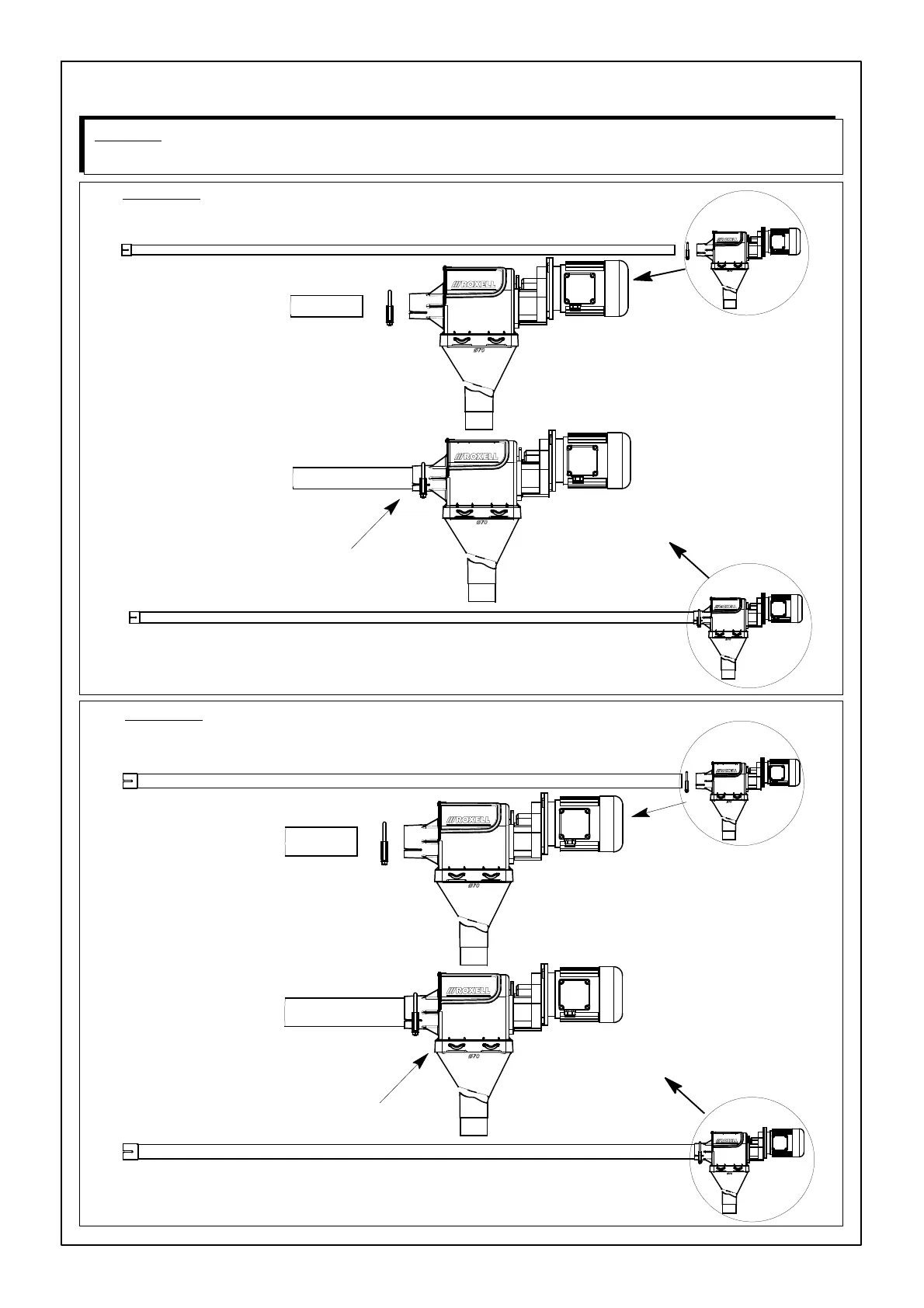

FIGURE 45.
TIGHTEN BOLTS : MINIMUM 10 Nm.
MODEL 55
Insert a tube dia. 55 mm without sleeve into the tube anchor weldment.
MODEL
75
Slide the end without expanded end of the tube 75mm into the tube anchor
weldment
FIGURE 46.
TIGHTEN BOLTS : MINIMUM 10 Nm.
