Roxell FLEX-AUGER FA 75 - TO INSTALL THE OUTLETS

ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-33
TO INSTALL THE OUTLETS
Fix the drop tube with 1 parcker
screw.
Take c are the screw is not in the
feed flow !
Push by hand 4 screws in the
mounting holes.

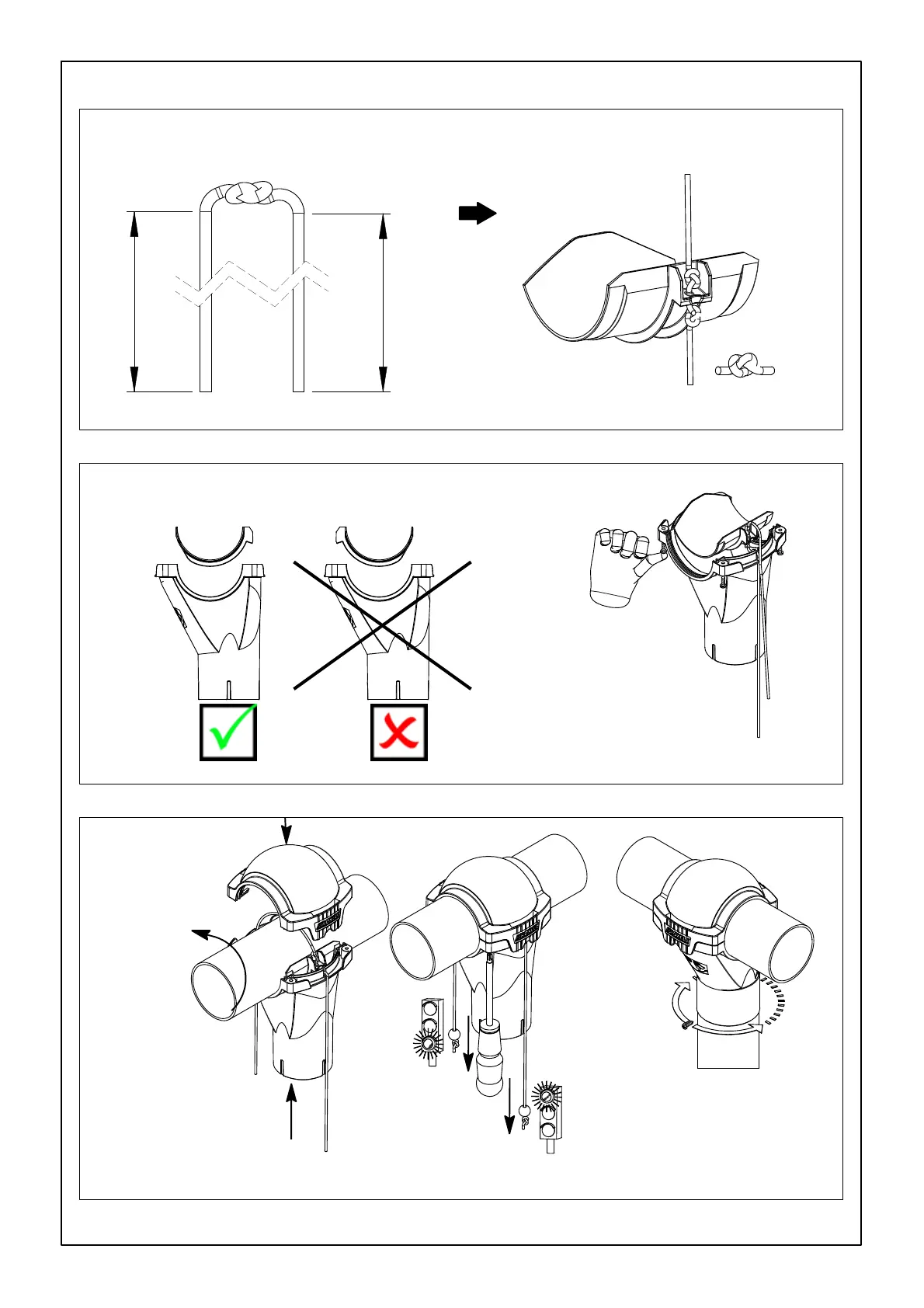

FIGURE 52. FIGURE 53.
CLOSED
OPEN
Slide the cord through the shut-off-plate. Make
a second knot.
Knottheropeinthemiddle.
= =
FIGURE 54.
FIGURE 55.
Install the closing slide in the correct position !
4x
4x
1x
FIGURE 56. FIGURE 57. FIGURE 58.
1. Position the bottom
piece to the tube.
2. Put the cord over
the tube.
3. Click the top piece
to the outlet.
2x
4. Slide the cord ends through the
small balls and make a knot.
