Roxell FLEX-AUGER FA 75 - Tandem in Line Fa 90 - 03202645

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-34

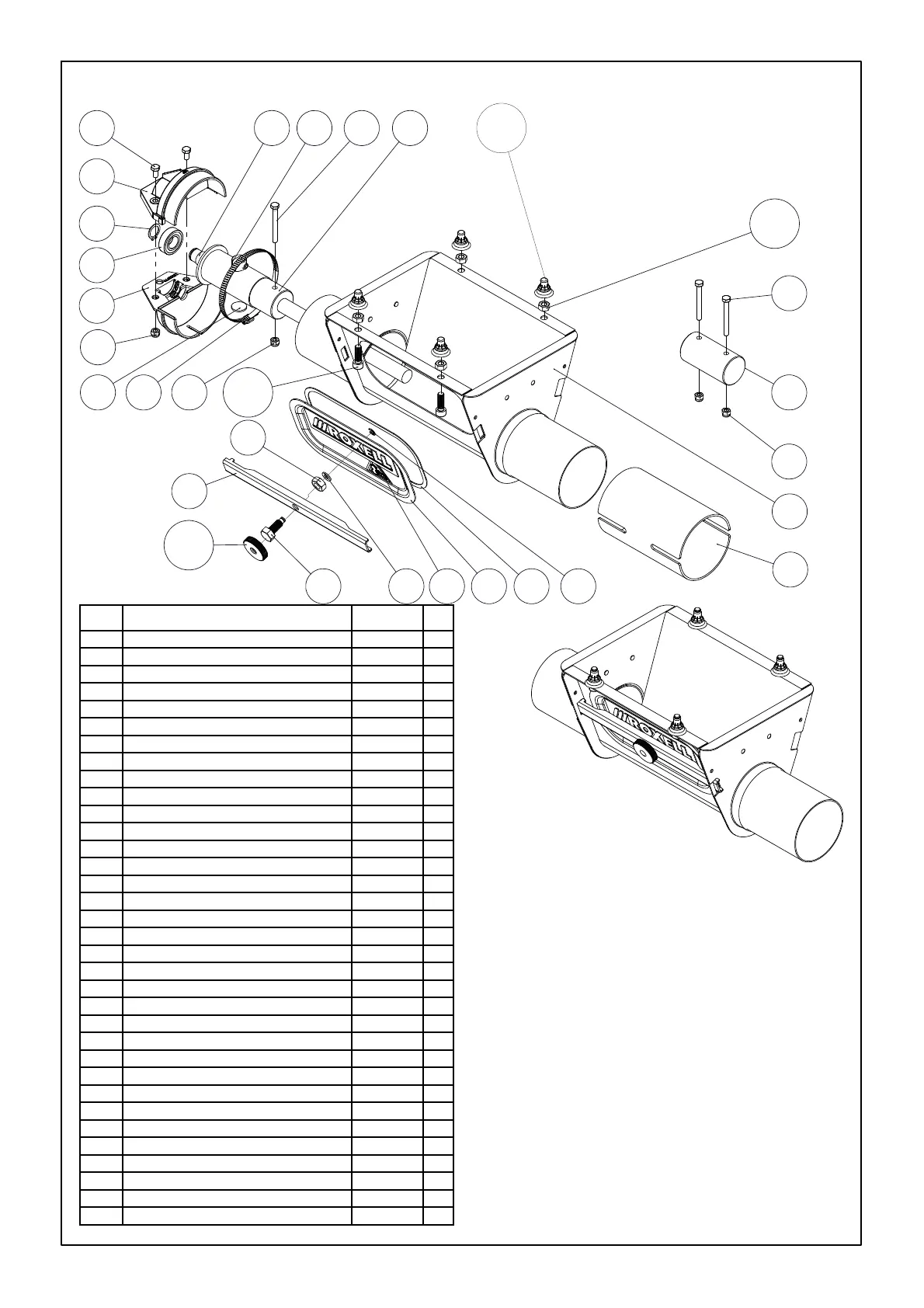

TANDEM IN LINE FA 90 - 03202645
1.11.2
1.11.1
1.11.3
1.11.4
1.1
1.2
1.3
1.4
1.5 1.10 1.7 1.8 1.6
2.11
2.2
2.5
2.8
2.10
2.11
2.7
2.3
2.9
2.6
2.12
3
2.132.1
5
7
6
Key Nam e Part Nr. Qt.
1 INTAKE BOOT & CLOSING PLATE FA90 13202957 2
1.1 BOOT BODY WELDMENT FA 90 13202965 1
1.2 CLOSING BOLT - BRASS SMAL 13108154 1
1.3 CLOSING PROFILE 13107768 1
1.4 NUT M10 - DIN 934 20100277 1
1.5 FIBER RING 20104287 1
1.6 E-RING Ø5-DIN 6799-A2 S.S 20102018 1
1.7 CLOSING PLATE 13107776 1
1.8 GASKET 15X2 30800874 1
1.9 ROXELL DECAL - 160X40 10101129 1
1.1 DECAL - HANDS WARNING 13106596 1
1.11 HARDWARE KIT 13108055 1
1.11.1 NUT M8 DIN 934 - SP 20200119 4
1.11.2 SEAL CAP M8 16103699 4
1.11.3 KNURLED KNOB 13107842 1
1.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
2 ANCHOR & BEARING ASS'Y FA90 13204092 1
2.1 ANCHOR&BEARING SHAFT FA75-90 13109780 1
2.2 ANCHOR TUBE WELDMENT DIA.44 13204100 1
2.3 BEARING 17X35X10 - 6003 LLU 13201066 1
2.4 SET SCREW M8X10 - DIN 916 20100434 2
2.5 HOSE CLAMP Ø80 - 100MM 03200250 1
2.6 BEARING HOLDER CAP UP - Ø90 13203781 1
2.7 BEARING HOLDER CAP DOWN - Ø90 13203799 1
2.8 CLAMP PIN 13100482 1
2.9 SEEGER RING Ø17X1 20101333 1
2.1 SPACER 13200134 2
2.11 LOCKNUT M6 - DIN 985 20100400 3
2.12 BOLT M6X12 - DIN 933-8.8 20100160 2
2.13 BOLT M6X55 DIN 931-89 20101309 1
3 TUBE CONNECTOR Ø90MM 03200383 1
5 BOLT M6X55 DIN 931-89 20101309 2
6 LOCKNUT M6 - DIN 985 20100400 2
7 COUPLING FOR TUBE Ø44.5X1MM 13204116 1
