Roxell FLEX-AUGER FA 75 - Return Tandem Fa 75 - 03102969

ROXELL - 031 - 0516

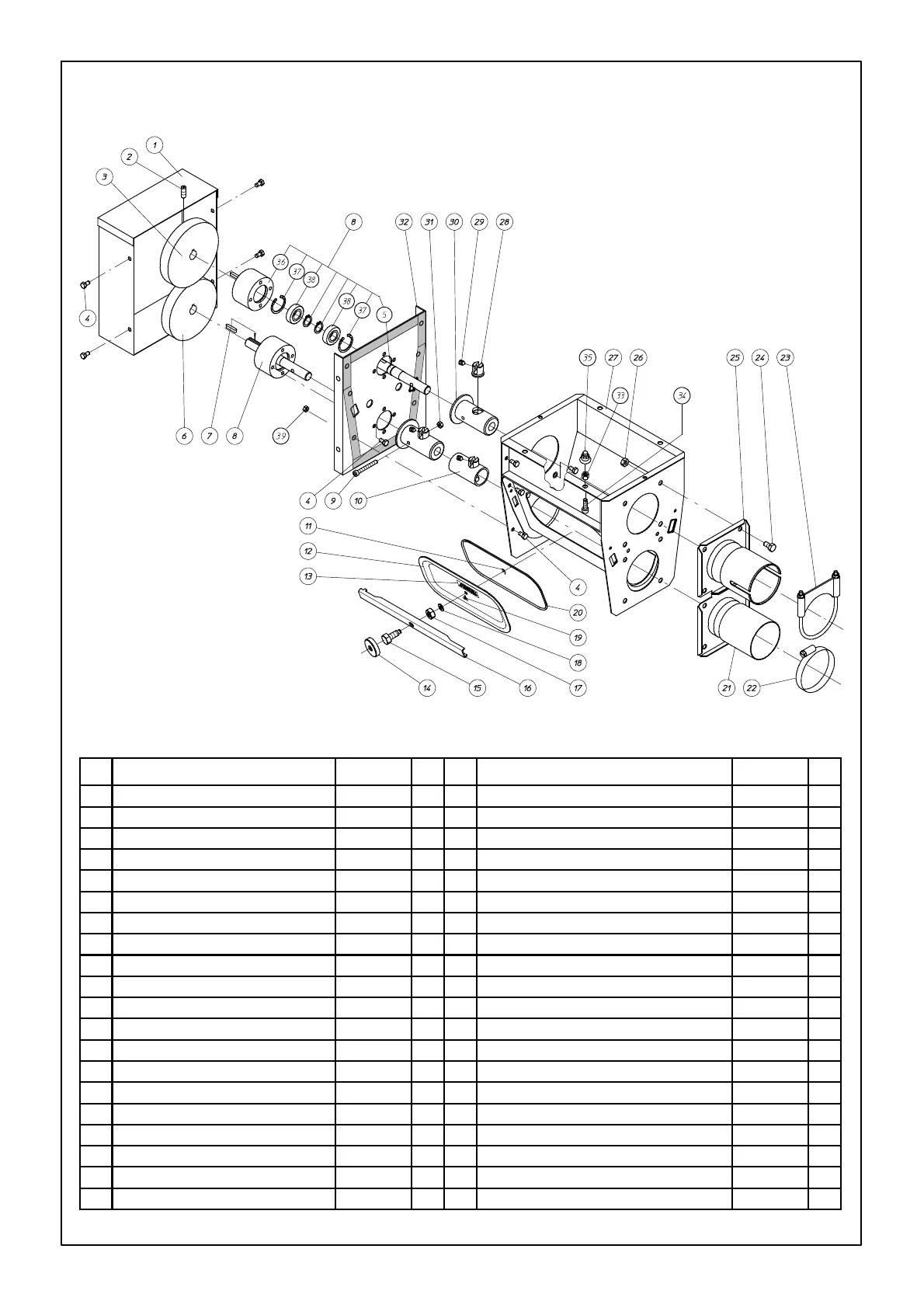

FLEX- AUGER - COMPONENTS
II- 36
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 PROTECTION BOX ASS'Y 13108089 1 21 TUBE ANCHOR WELDMENT ASS'Y 13108337 1
2 SET SCREW M8X25 - DIN 916 20101580 2 22 HOSE CLAMP ASSEMBLY Ø70-90 03100658 1
3 SPUR GEAR (POLYAMIDE) 10300432 1 23 TUBE CLAMP ASSEMBLY Ø80MM 03900065 1
4 BOLT M6X12 - DIN 933-8.8 20100160 20 24 BOLT M8X16 - DIN 933-8.8 20100228 8
5 DRIVE SHAFT 13201033 2 25 TUBE ANCHOR WELDMENT ASS'Y 13108352 1
6 SPUR GEAR (STEEL) 10300440 1 26 NUT M8 - DIN 934 20200028 8
7 SQUARE KEY - 5X25 13102942 2 27 TANDEM BOOT BODY WELDMENT FA75 13108287 1
8 FRONT PLATE DRIVER ASS'Y 10300424 2 28 CLAMP PIN 13100482 2
9 SOCKET CAP SCREW M6X45 - A2 20108445 2 29 SET SCREW M8X10 - DIN 916 20100434 3
10 RESTRICTOR WELDMENT 13107636 1 30 DRIVER WELDMENT FA 13104237 2
11 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 31 LOCKNUT M6-DIN 985-A2 20101960 2
12 CLOSING PLATE 13107776 1 32 FLANGE ASS'Y WITH GASKET 13108311 1
13 ROXELL DECAL - 160X40 10101129 1 *33 NUT M8 DIN 934 - SP 20200119 4
*14 KNURLED KNOB 13107842 1 *34 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
15 CLOSING BOLT - BRASS SMAL 13108154 1 *35 SEAL CAP M8 16103699 4
16 CLOSING PROFILE 13107768 1 36 BEARING HOLDER 10300416 2
17 NUT M10 - DIN 934 20100277 1 37 SEEGER RING Ø35X1.5 - DIN 472 20101325 4
18 FIBER RING 20104287 1 38 BEARING 17X35X10 - 6003 LLU 13201066 4
19 DECAL - HANDS WARNING 13106596 1 39 NUT M6 - DIN 934 20100210 6
20 GASKET 15X2 30800874 1 * HARDWARE KIT 13108055 1
RETURN TANDEM FA 75 - 03102969
