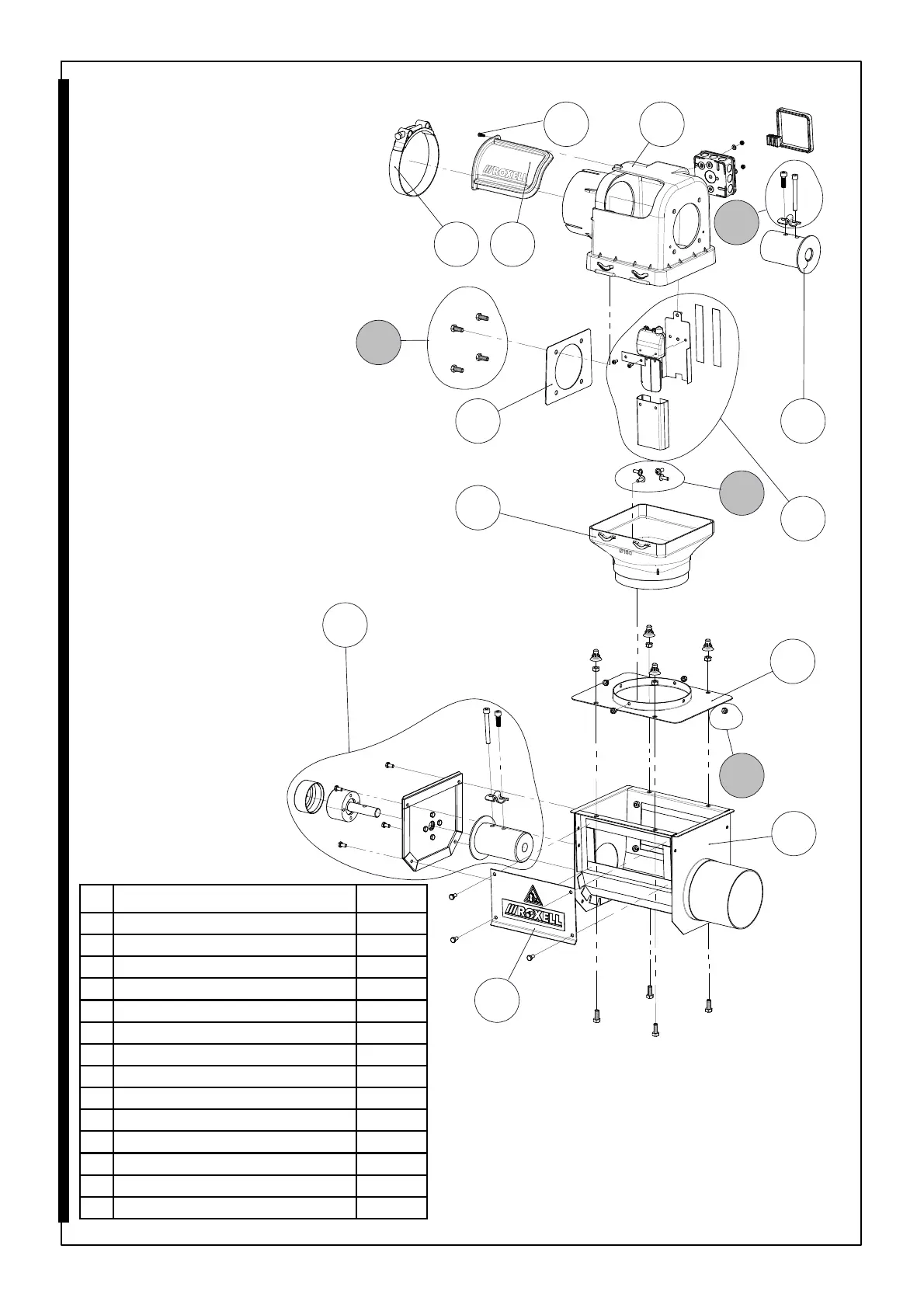

EXTENSION BOOT FA 125 - 03701092
7 6
8 9
5
4
2
1
3
10
11
12
13
13
14
14
Key Nam e Part Nr.
1
BOOT BODY WELDMENT
13701081
2
CLOSING PLATE ASS'Y
13102629
3
EXTENSION PLA TE Ø160 GA LV A
13109525
4
DROP ø160 FOR EXTENSION BOOT
13000492
5
REINF.PLATE ø56-75-90-MOTOR
13109046
6
WINDOW
13000500
7
HOSE CLAMP ø131-139MM
03701196
8
THREAD FORMING SCREW 4X12-A2
12502043
9
HOUSING - CONTROL UNIT DIA125
13702996
10
SAFETY SWITCH ASS'Y
13000757
11
ANCHOR + BEARING ASS'Y FA125
13701016
12
DRIVER WELDMENT
13700349
13
HARDWARE KIT CU FA 125
13703180
14
HW KIT F/ FA EXTENSION 360°
13000518
