Roxell FLEX-AUGER FA 75 - Feed Intake Boot Fa 75 - 03103850

ROXELL - 031 - 0516

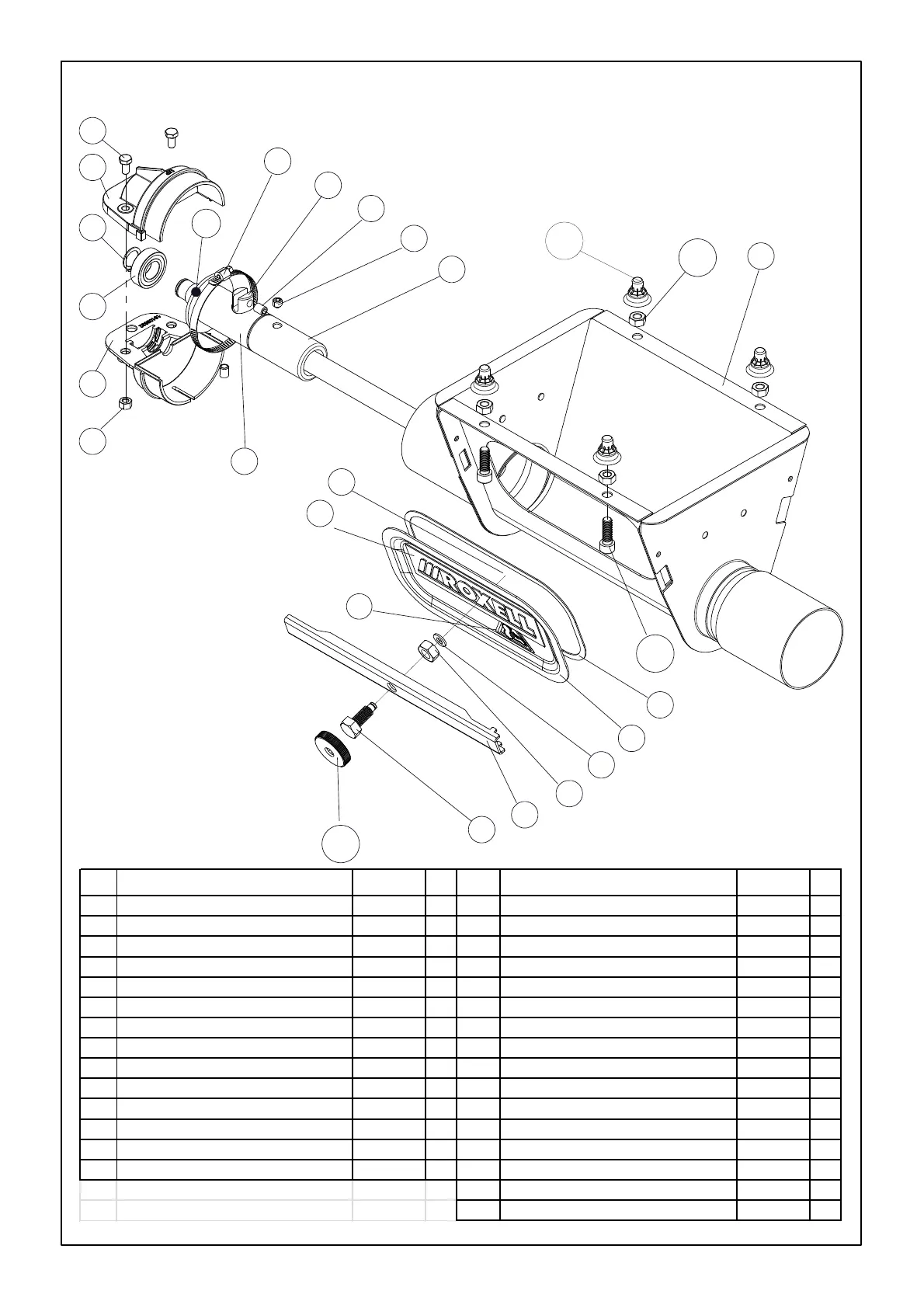

FLEX-AUGER - COMPONENTS
II-23
Key Name Part Nr. Qt. Key Nam e Part Nr. Qt.
1 ANCHOR & BEARING ASS'Y FA75 13109681 1 2 INTAKE BOOT & CLOSING PLATE 13108022 1
1.1 ANCHOR & BEARING SHAFT FA75-90 13109731 1 2.1 BOOT BODY WELDMENT FA 75 13108030 1
1.2 RESTRICTOR Ø36 13105838 1 2.2 E-RING Ø5-DIN 6799-A2 S.S 20102018 1
1.3 ANCHOR TUBE WELDMENT Ø36 13105853 1 2.3 GASKET 15X2 30800874 1
1.4 BEARING 17X35X10 - 6003 LLU 13201066 1 2.4 ROXELL DECAL - 160X40 10101129 1
1.5 SET SCREW M8X10 - DIN 916 20100434 2 2.5 DECAL - HANDS WARNING 13106596 1
1.6 CLAMP PIN 13100482 1 2.6 CLOSING PLATE 13107776 1
1.7 SET SCREW M8X8-DIN 916 20101697 1 2.7 FIBER RING 20104287 1
1.8 BEARING HOLDER CAP DOWN - Ø75 13109632 1 2.8 NUT M10 - DIN 934 20100277 1
1.9 BEARING HOLDER CAP UP - Ø75 13109624 1 2.9 CLOSING PROFILE 13107768 1
1.10 SEEGER RING Ø17X1 20101333 1 2.10 CLOSING BOLT - BRASS SMAL 13108154 1
1.11 HOSE CLAMP ASSEMBLY Ø70-90 03100658 1 2.11 HARDWARE KIT 13108055 1
1.12 BOLT M6X12 - DIN 933-8.8 20100160 2 2.11.1 NUT M8 DIN 934 - SP 20200119 4
1.13 LOCKNUT M6 - DIN 985 20100400 2 2.11.2 SEAL CAP M8 16103699 4
2.11.3 KNURLED KNOB 13107842 1
2.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
2.1
2.2
2.3
2.6
2.7
2.8
2.9
2.10
1.1
1.2
1.7
1.5
1.6
1.11
1.8
1.13
1.4
1.10
1.9
1.12
1.3
2.4
2.5
2.11.2
2.11.1
2.11.4
2.11.3
FEED INTAKE BOOT FA 75 - 03103850
