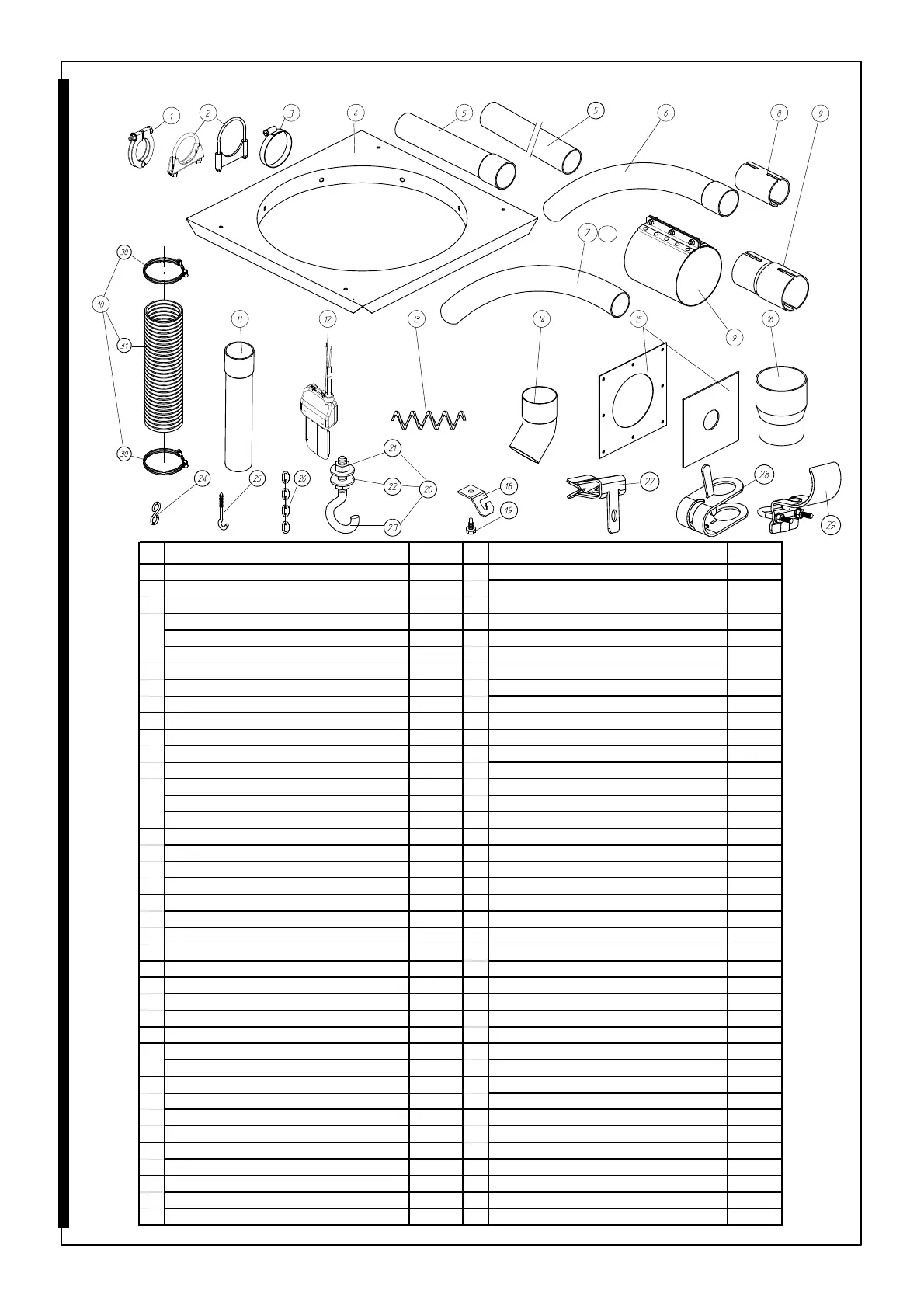

Roxell FLEX-AUGER FA 75 - Suspension- and Line Components

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-6
Key Nam e Par t Nr . Ke y Nam e Part Nr.
1 TUBE CLAMP ASSEMBLY ø63 03600392 11 PLASTIC DROP TUBE DIA. 70MM - 2.5 m 05000054
2 TUBE CLAMP ASSEMBLY Ø95 03200029 PLASTIC DROP TUBE - D. 85 MM - 2.5 m 03100625
TUBE CLAMP ASSEMBLY ø140MM 03700077 PLASTIC DROP TUBE 5.0M -DIA. 110M 03700135
TUBE CLAMP ASSEMBLY 03900065 12 LEVEL SWITCH ASS'Y 13104500
HOSE CLAMP ø131-139MM 03701196 13 AUGER - FA 55 03300571
TUBE CLAMP ø60 13000021 AUGER - FA 75 03100187
3 HOSE CLAMP Ø70-90 03100658 AUGER - FA 90 03200409
HOSE CLAMP ø80-100 03200250 AUGER FA90-HD 03200128
HOSE CLAMP ø89 x 20MM 04901658 AUGER - FA 125 03700085
4 UNIVERSAL COLLAR 03102001 AUGER - FA 125 - PITCH 85MM 03701188
5 NOVICOR TUBE LG=3M - ø56MM 03300084 14 PVC ELBOW 45° - DIA. 70 MM 03100294
NOVICOR TUBE LG=3M - ø75MM 03100559 15 SEAL & SEAL RING 03600277
NOV ICOR TUBE LG=3M - ø89MM 03200300 RUBBER SEAL WITH SEAL RING 03100849
METAL TUBE LG=3M - ø89MM 03200102 SEAL & SEAL RING 03200474
NOVICOR TUBE LG=3M - ø127MM 03700069 SEAL AND SEAL RING 03700184
DENSICOR TUBE LG=3M - Ø127MM 03701108 16 REDUCTION PIECE ø104.5-85 MM 00703074
5' METAL TUBE LG=3M - ø127MM 03700200 18 SUSPENSION PLATE 00103069
TUBE ø32 x 1.2 - 2.9M 03103066 19 SELF DRILLING SCREW 6.3 X 25 00103077
TUBE 3.05M WITHOUT HOLES 00102269 20 SUSPENSION HOOK M6x60 05000302
METAL TUBE ø56MM LG=3000MM 04801346 21 NUT M6 - DIN 934 20100210
6 NOVICOR ELBOW 45°-ø56 MM 03300977 22 WASHER 6.4x18x1.5-DIN 9021 20100756
NOVICOR ELBOW 45°-ø75 MM 03100542 23 SCREW HOOK M6 X 60 20103156
NOVICOR ELBOW 45°-ø90 MM 03200326 24 "S" HOOK 05000013
NOVICOR ELBOW 45°-ø125 MM 03700051 25 SCREW HOOK 90 MM 05000872
DENSICOR ELBOW 45°-Ø127 MM 03701116 SCREW HOOK 160 MM 05000237
7 METAL ELBOW 45° - ø70MM 03800273 26 SUSPENSION CHAIN 05000021
HARDENED STEEL ELBOW 45°-Ø 90MM 03200433 27 CADDY CLIPS TYPE 4H58 20104220
HARDENED STEEL ELBOW 45°-Ø 125MM 03700002 28 BRACE KIT DOWN 1"-1" 04800587
HARDENED STEEL ELBOW 45°-Ø 127MM R2200 03701124 BRA CE KIT DOWN 1"-3/4" 04800595
PE - ELBOW 45° ø90 MM 03202718 29 BRACE KIT UP 1"-1" 04800603
PE - ELBOW 45° Ø125 MM 03700877 BRACE KIT UP 1"-3/4" 04800611
*8 TUBE CONNECTOR ø56MM 03300274 30 FLEXIBLE CLAMP DIA. 93 13103346
TUBE CONNECTOR ø75MM 03100583 FLEXIBLE CLAMP DIA.120 13700489
TUBE CONNECTOR ø90MM 03200383 31 FLEXIBLE TUBE 15000227
TUBE CONNECTOR 03200169 FLEXIBLE DIA.85 13103353
*9 CONNECTOR DIA METER 70-75MM 03101946 FLEXIBLE DIA.110 13700471
TUBE CONNECTOR KIT 03700382 * Option
10 FLEXIBLE TUBE ASS'Y ø70 MM 05000047
FLEXIBLE TUBE ASS'Y ø85 MM 03100633
FLEXIBLE TUBE ASSEMBLY Ø110 MM 03700143
7'
’
’
SUSPENSION- AND LINE COMPONENTS
7'
