Roxell FLEX-AUGER FA 75 - Extension for Intake Boot; Connection Kit for Modular Control Unit Fa55 - 04904736

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-48
2.1
2.2.2
2.2.1
2.3
1.1
1.4
1.3
1.2

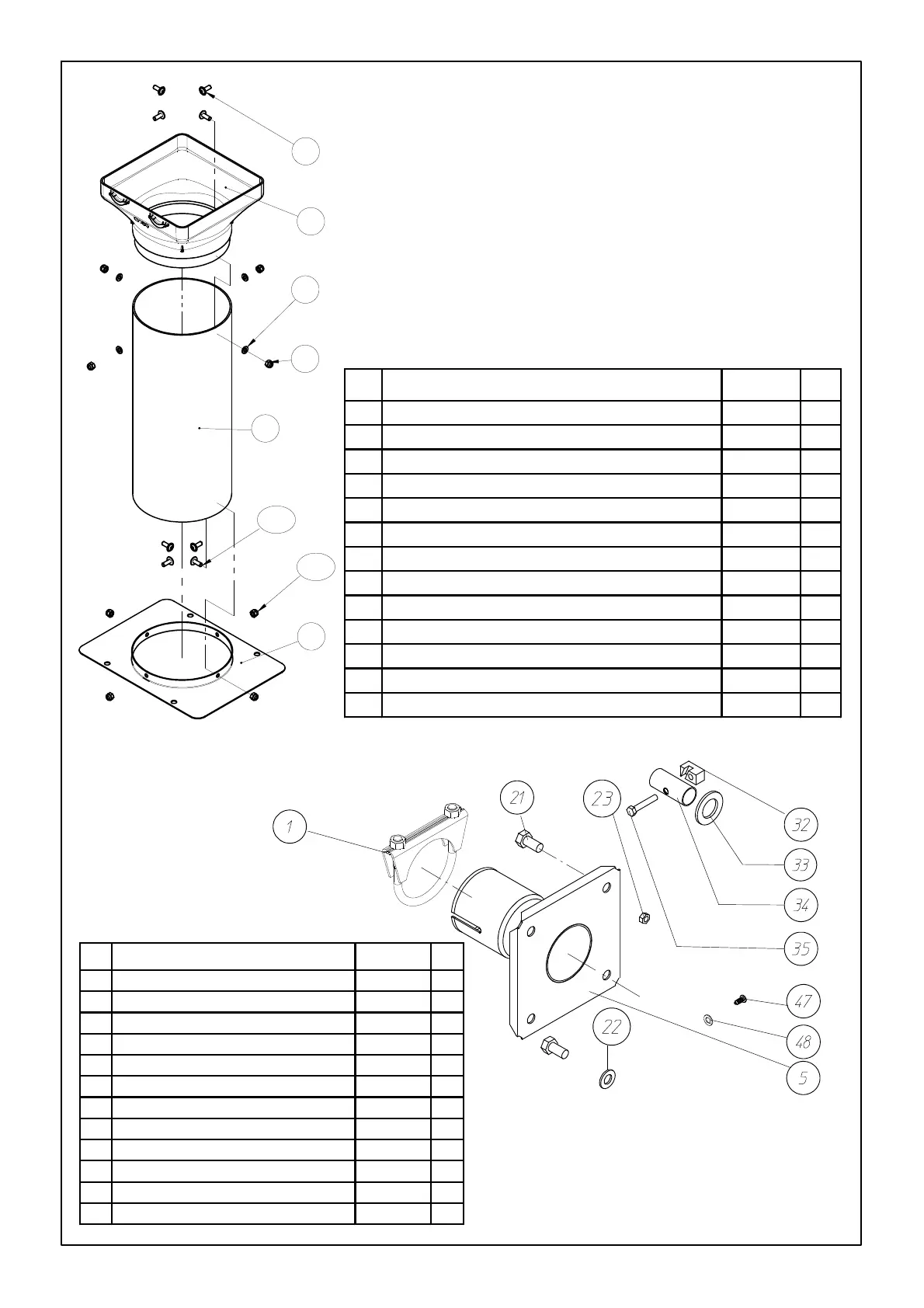

EXTENSION FOR INTAKE BOOT
Key Name Part Nr. Qt.
1 FEED BUFFER TUBE 04801973 1
1.1 TUBE Ø160X370 14802698 1
1.2 BUT.HEAD CAP SCREW W/FLANGE M6x16-A2 20109146 4
1.3 WASHER DIA.6.4x12x1.6 - DIN125 - A2 20103081 4
1.4 LOCKNUT M6 - DIN 985 -A2 20101960 4
2 DISCAFLEX INTAKE 360° ST.ST. 04801924 1
2.1 DROP ø160 FOR EXTENSION BOOT 13000492 1
2.2 HW KIT F/ FA EXTENSION 360° 13000518 1
2
.2.1 LOCKNUT M6 - DIN 985 -A2 20101960 4
2
.2.2 BUT.HEAD CAP SCREW W/FLANGE M6x16-A2 20109146 4
2.3 EXTENSION PLATE Ø160 GALVA 13109525 1
* EXTENSION PLATE Ø160 ST.ST. 13109541 1
*OPTION
CONNECTION KIT FOR MODULAR CONTROL UNIT FA55 - 04904736
Ke y Nam e Par t Nr . Qt .
1 TUBE CLAMP Ø60 13000021 1
5 TUBE ANCHOR WELDMENT 13501747 1
*21 BOLT M8X16 - DIN 933-8.8 20100228 8
*22 WASHER Ø9XØ17X1.6 - DIN 126 20100467 4
*23 NUT M8 - DIN 934 20200028 4
*32 DRIVE BLOCK 10100782 1
*33 GALV.WASHER Ø39X23X3 20103842 1
*34 DRIVE TUBE 13500434 1
*35 SOCKET CAP SCREW M6X35 DIN 912 20102158 1
*47 PARCKER SCREW 8X1/2" 20100525 4
*48 WASHER 4.3X9X0.8 20100566 4
* HARDWARE KIT 13501689 1
