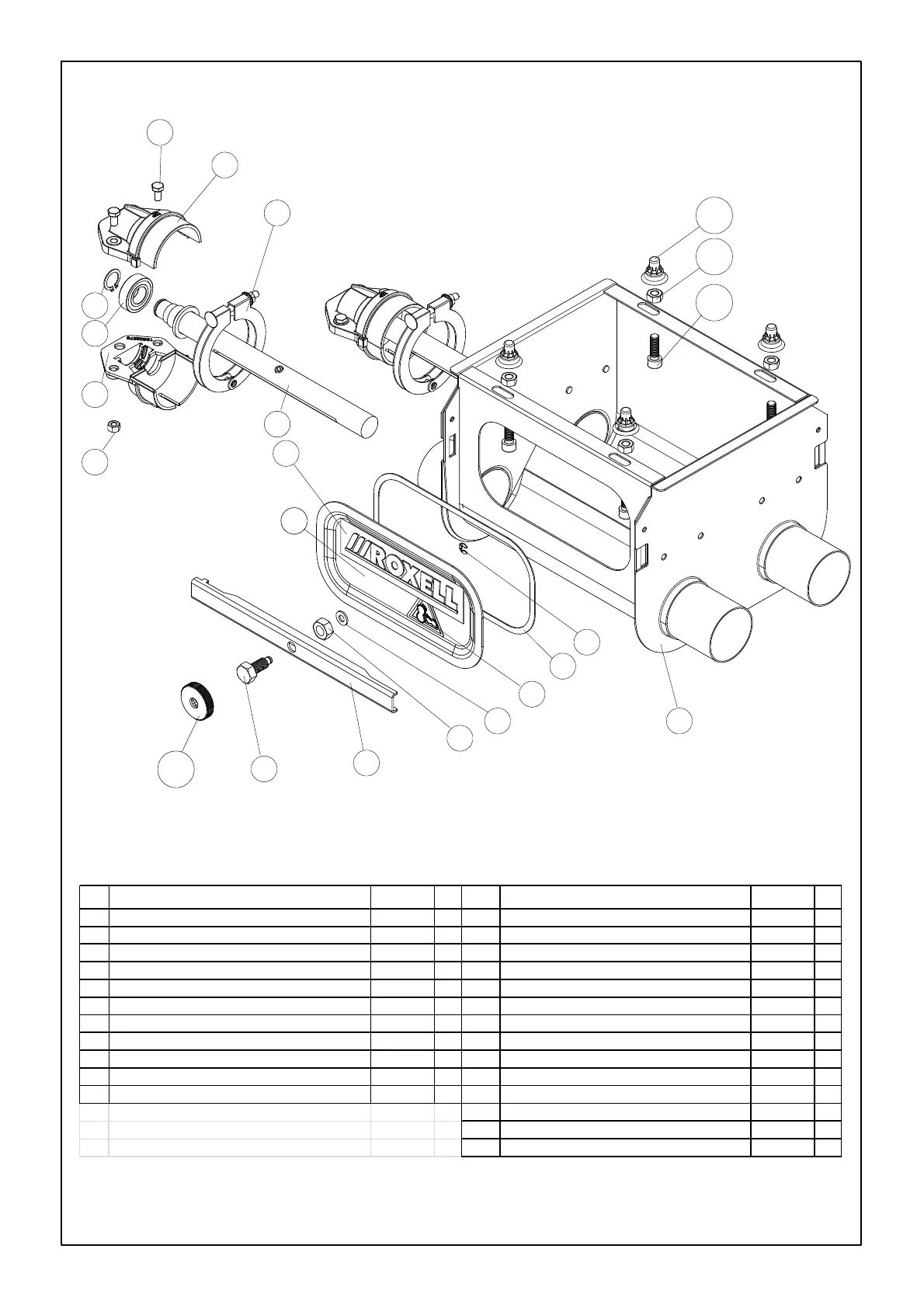

Roxell FLEX-AUGER FA 75 - Double Intake Boot Fa 55 - 03501343

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-27
Key Nam e Part Nr. Qt. Key Name Part Nr. Qt.
1 DOUBLE INTAKE BOOT & CLOSING PLATE FA55 13501655 1 1.11 HARDWARE KIT 13108055 1
1.1 DOUBLE BOOT WELDMENT WELDMENT FA55 13501663 1 1.11.1 NUT M8 DIN 934 - SP 20200119 4
1.2 GASKET 15X2 30800874 1 1.11.2 SEAL CAP M8 16103699 4
1.3 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 1.11.3 KNURLED KNOB 13107842 1
1.4 CLOSING PLATE 13107776 1 1.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
1.5 FIBER RING 20104287 1 2 ANCHOR & BEARING ASS'Y FA55 13502299 2
1.6 NUT M10 - DIN 934 20100277 1 2.1 BEARING 17X35X10 - 6003 LLU 13201066 1
1.7 CLOSING PROFILE 13107768 1 2.2 SEEGER RING Ø17X1 20101333 1
1.8 CLOSING BOLT - BRASS SMAL 13108154 1 2.3 BOLT M6X12 - DIN 933-8.8 20100160 2
1.9 ROXELL DECAL - 160X40 10101129 1 2.4 LOCKNUT M6 - DIN 985 20100400 2
1.10 DECAL - HANDS WARNING 13106596 1 2.5 SHAFT FA 55 WELDMENT Ø22 - LG=274MM 13502331 1
2.6 BEARING HOLDER CAP UP - Ø56 13502265 1
2.7 BEARING HOLDER CAP DOWN - Ø56 13502273 1
2.8 TUBE CLAMP ASS'Y Ø63 13601661 1
1.11.2
1.11.1
1.11.4
1.11.3
1.8
1.7
1.6
1.5
1.10
1.9
1.4
1.2
1.3
1.1
2.5
2.8
2.3
2.6
2.2
2.1
2.7
2.4
DOUBLE INTAKE BOOT FA 55 - 03501343
