Roxell FLEX-AUGER FA 75 - Double Intake Boot Fa 75-Fa55 - 03000882

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-32

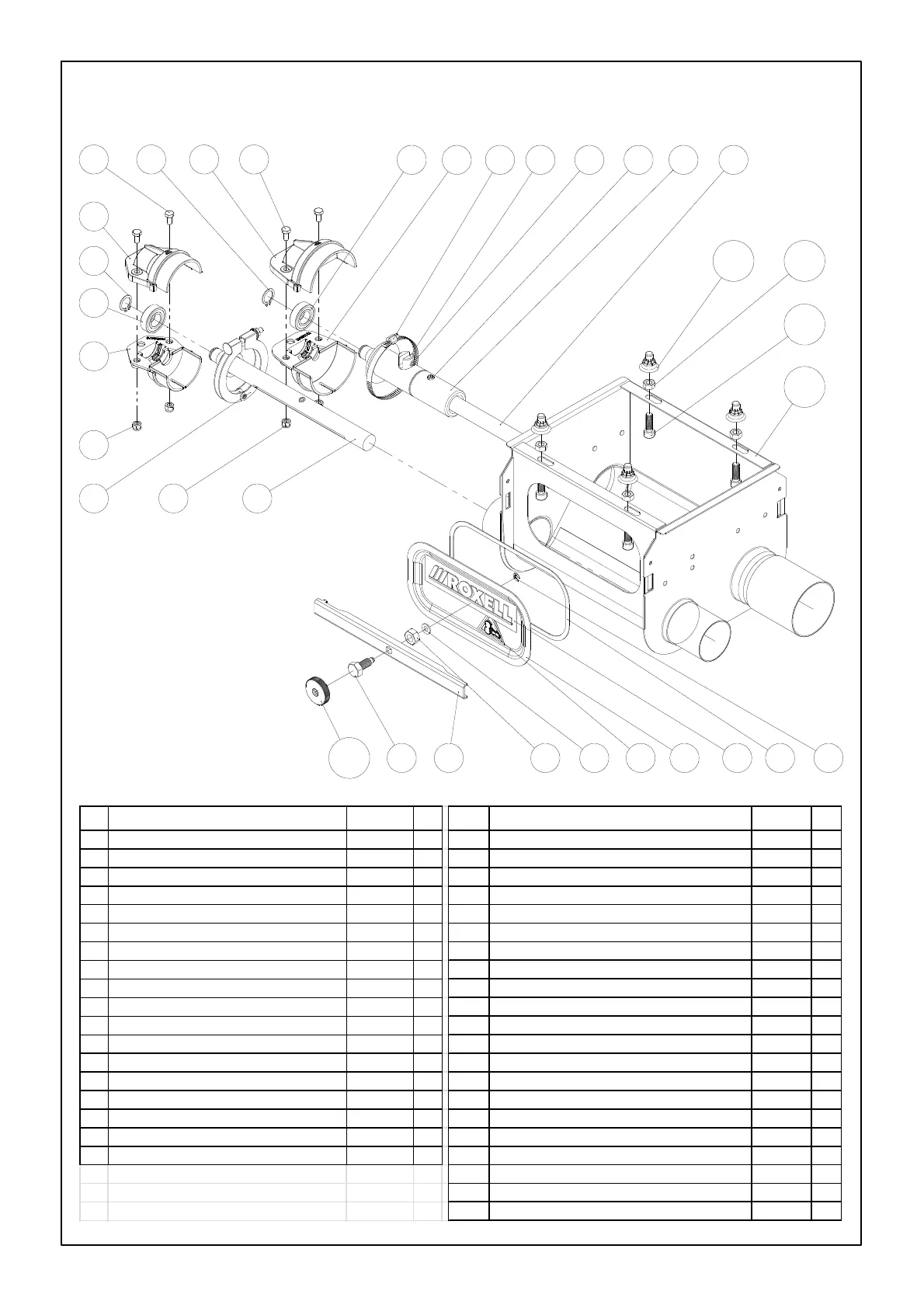

DOUBLE INTAKE BOOT FA 75-FA55 - 03000882
Key Nam e Part Nr. Qt. Key Nam e Part Nr. Qt.
1 A NCHOR & BEA RING A SS'Y FA 55 13502299 1 2.9 ROXELL DECA L - 160X40 10101129 1
1.1 BEARING 17X35X10 - 6003 LLU 13201066 1 2.10 DECAL - HANDS WARNING 13106596 1
1.2 SEEGER RING Ø17X1 20101333 1 2.11 HARDWARE KIT 13108055 1
1.3 BOLT M6X12 - DIN 933-8.8 20100160 2 2.11.1 NUT M8 DIN 934 - SP 20200119 4
1.4 LOCKNUT M6 - DIN 985 20100400 2 2.11.2 RUBBER CAP M8 16103699 4
1.5 SHA FT FA 55 WELDMENT Ø22 - LG=274MM 13502331 1 2.11.3 KNURLED KNOB 13107842 1
1.6 BEARING HOLDER CAP UP - Ø56 13502265 1 2.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
1.7 BEA RING HOLDER CA P DOWN - Ø56 13502273 1 3 A NCHOR & BEA RING A SS'Y FA 75 13109681 1
1.8 TUBE CLAMP ASS'Y Ø63 13601661 1 3.1 ANCHOR & BEARING SHAFT FA75-90 13109731 1
2 DOUBLE BOOT & CLOSING PLA TE FA 75-FA
5
13000955 1 3.2 RESTRICTOR Ø36 13105838 1
2.1 DOUBLE BOOT WELDMENT FA75-FA55 13000922 1 3.3 ANCHOR TUBE WELDMENT Ø36 13105853 1
2.2 CLOSING BOLT - BRASS SMAL 13108154 1 3.4 BEARING 17X35X10 - 6003 LLU 13201066 1
2.3 CLOSING PROFILE 13107768 1 3.5 SET SCREW M8X10 - DIN 916 20100434 2
2.4 NUT M10 - DIN 934 20100277 1 3.6 CLAMP PIN 13100482 1
2.5 FIBER RING 20104287 1 3.7 SET SCREW M8X8-DIN 916 20101697 1
2.6 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 3.8 BEARING HOLDER CAP DOWN - Ø75 13109632 1
2.7 CLOSING PLATE 13107776 1 3.9 BEARING HOLDER CAP UP - Ø75 13109624 1
2.8 GASKET 15X2 30800874 1 3.10 SEEGER RING Ø17X1 20101333 1
3.11 HOSE CLAMP ASSEMBLY Ø70-90 03100658 1
3.12 BOLT M6X12 - DIN 933-8.8 20100160 2
3.13 LOCKNUT M6 - DIN 985 20100400 2
1.6
1.3
1.2
1.1
1.7
1.4
3.131.8 1.5
3.123.93.10
3.4 3.8 3.11 3.7 3.2 3.1
2.11.3 2.2 2.3 2.4 2.5 2.7 2.92.10 2.8 2.6
2.11.2 2.11.1
2.11.4
2.1
3.53.6
