Roxell FLEX-AUGER FA 75 - Automatic Outlet - Ø75 - 24 Vdc(I) - 04906962

ROXELL - 031 - 0516

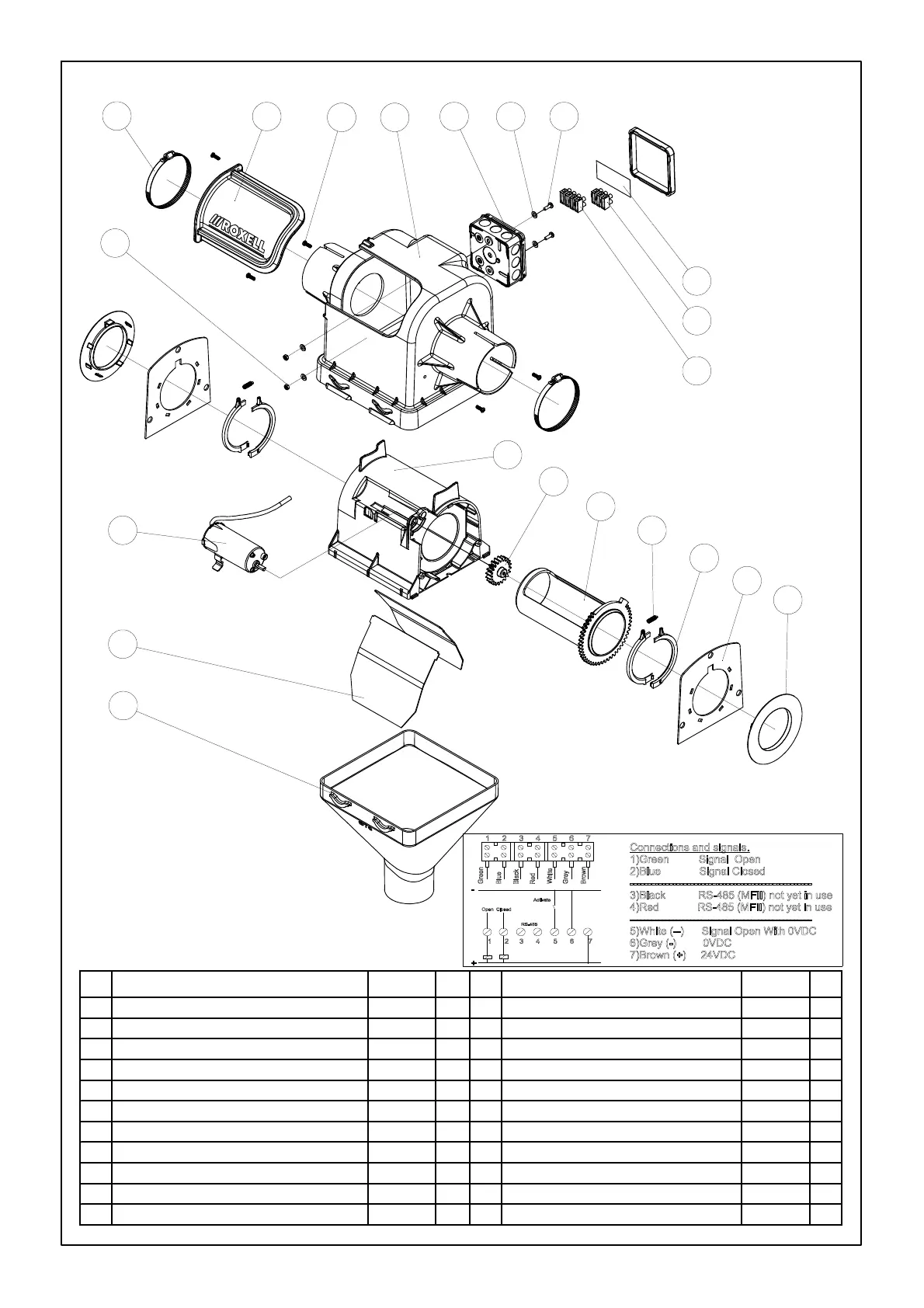

FLEX-AUGER - COMPONENTS
II-56
AUTOMATIC OUTLET - Ø75 - 24VDC(I) - 04906962
13 10
16
18
20
19
14
7
8
2
3
4
12
9
6
1
17
15
5
11
21
Key Nam e Part Nr. Qt. Key Nam e Par t Nr. Qt.
1 INNER HOUSING DIA 75 14905574 1 12 DROP FOR DROP TUBE DIA 70 13502174 1
2 OUTLET TUBE WITH GEAR DIA 75 14905541 1 13 THREAD FORMING SCREW 4X12-A2 12502043 5
3 FLEXIBLE CLOSING RING DIA 75 14905517 4 14 HANDY BOX IPW AX4-IP55 15009814 1
4 REINFORCEMENT PLATE Ø75 14915060 2 15 WASHER 5,3X10X1 - DIN 125 - A2 20102315 4
5 BEARING RING DIA 75 14915037 2 16 HEAD SCR. M4X12 DIN7985Z-A2 20109567 2
6 MOTOR SET F/AUTOMATIC OUTLET (I) 04906715 1 17 NUT M4 DIN 934 - A2 20102646 2
7 GEARWHEEL 2M 20T 20PA 14905459 1 18 CLAMP STROKE 6E/4 10110799 1
8 SPRING DIA 5 x 20.2 14905624 2 19 CLAMP STROKE 27 20 6E/3 10103109 1
9 CLOSING PLATE Ø90 1.0MM 14905681 2 20 CONNECTING SCHEME NEW OUTLET 14905772 1
10 HOUSING - AUTO OUTLET DIA 75 14905608 1 21 HOSE CLAMP ø80-100 03200250 2
11 WINDOW 13000500 1
