Roxell FLEX-AUGER FA 75 - Tandem in Line Fa125 - 03700580

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-35

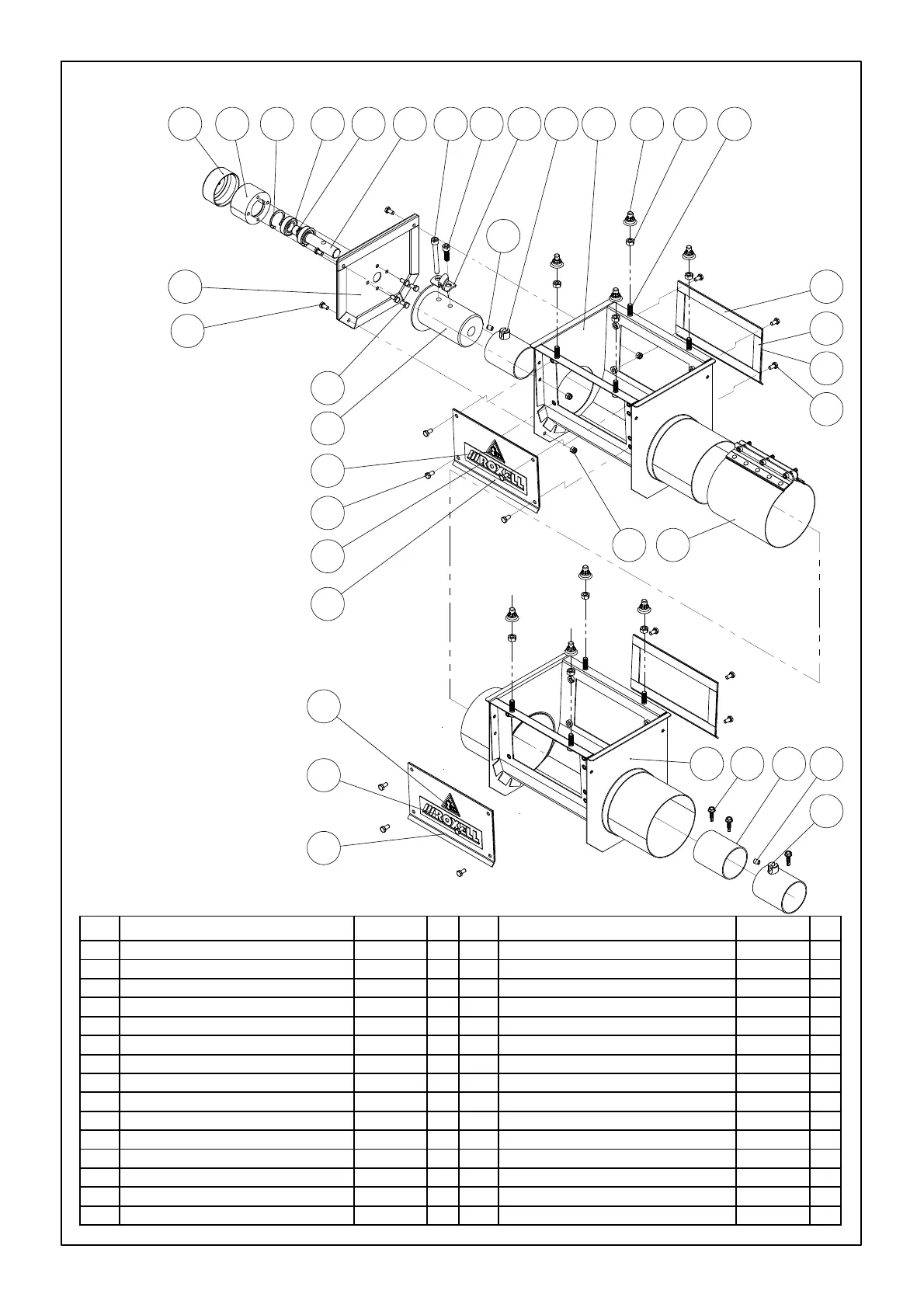

TANDEM IN LINE FA125 - 03700580
8
1 9 1011
12
3
5
6.1
4
2.7
2.8
2.6
2.1 7
2.3
2.4.32.4.42.5 2.4.2
6.5
6.4
2.2
6.1
6.5
6.4
2.4.5 2.4.1
4
6.1
13 14
7
8
4
6.2
6.3
Ke y Nam e Par t Nr . Qt. Ke y Nam e Par t Nr . Qt.
1 BOOT BODY WELDMENT 13701081 1 2.8 ANCHOR CLA MP 13104575 1
2 ANCHOR + BEARING ASS'Y FA 125 13701016 1 3 BOOT BODY WELDMENT 13701339 1
2.1 SOCKET CAP SCREW M8X70 - DIN 912 20101986 1 4 BOLT M6X12 - DIN 933-8.8 20100160 20
2.2 SOCKET CAP SCREW M8X25 - DIN 912 20101978 1 5 LOCKNUT M6 - DIN 985 20100400 4
2.3 BOLT M6X12 - DIN 933-8.8 20100160 4 6 CLOSING PLATE ASS'Y 13102629 4
2.4 FRONT PLATE DRIVER ASS'Y FA125 13701115 1 6.4 DECAL - HANDS WARNING 13106596 1
2.4.1 BEARING 17X35X10 - 6003 LLU 13201066 2 6.5 ROXELL DECAL - 160X40 10101129 1
2.4.2 SEEGER RING Ø17X1 20101333 2 7 RESTRICTOR WELDMENT 13701263 2
2.4.3 DRIV E SHAFT 13701107 1 8 SET SCREW M8X10 - DIN 916 20100434 2
2.4.4 SEEGER RING Ø35X1.5 - DIN 472 20101325 2 9 SEAL CAP M8 16103699 8
2.4.5 BEARING HOLDER 10300416 1 10 SOCKET CAP SCREW M8X25 - DIN 912 20101978 8
2.5 CAP Ø63.5 13701131 1 11 NUT M8 DIN 934 - SP 20200119 8
2.6 СВА РНОЙ АНКЕР FA125 13700984 1 12 TUBE CONNECTOR KIT 03700382 1
2.7 FLANGE WITH GASKET 13701289 1 13 SELF DRILLING SCREW 6.3X25 00103077 4
14 CONN.TUBE F/ RESTR.TUBE FA 125 13701644 1
