Roxell FLEX-AUGER FA 75 - Feed Intake Boot Fa 125 - 03700531

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-26

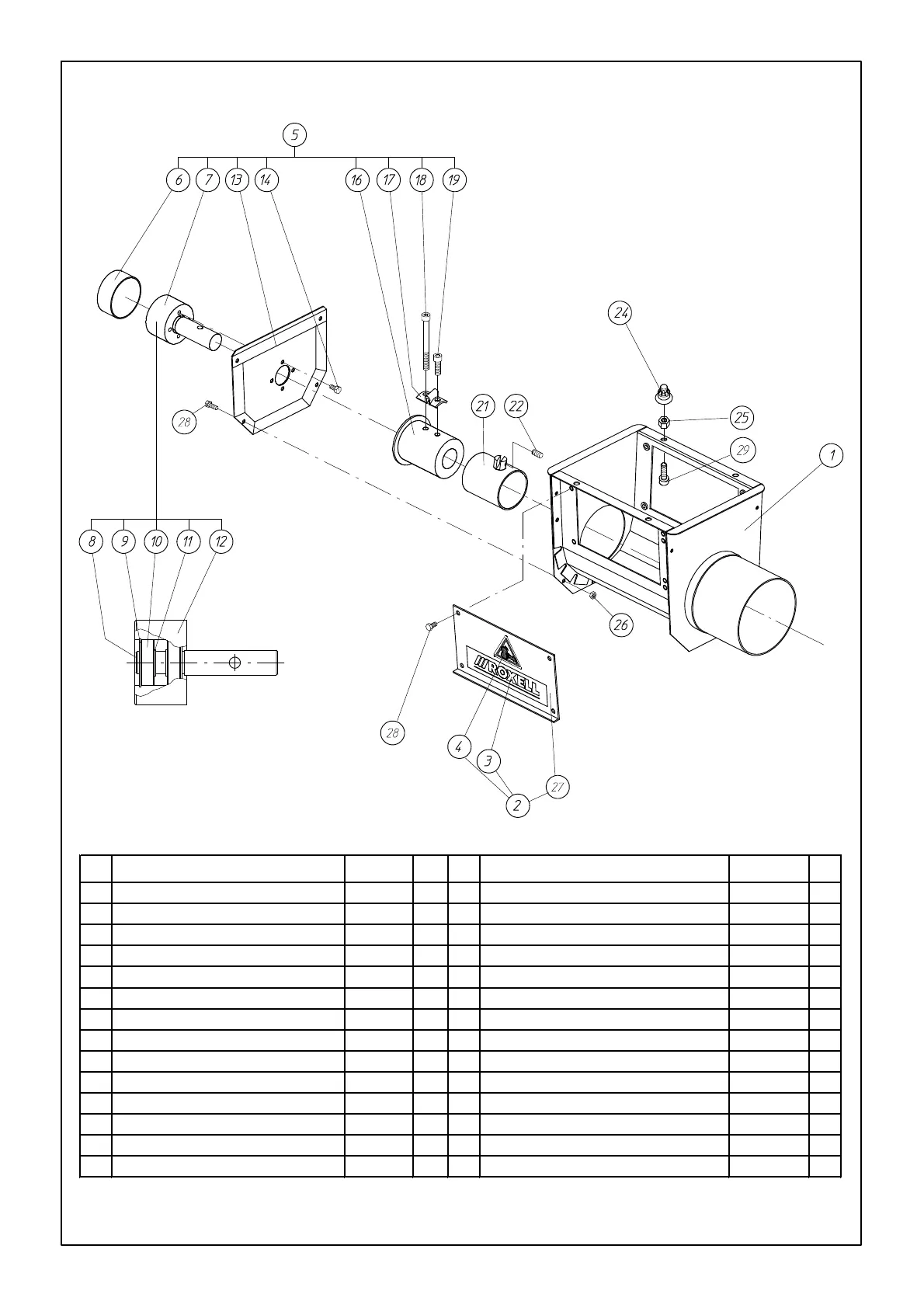

FEED INTAKE BOOT FA 125 - 03700531
Key Nam e Part Nr. Qt. Key Nam e Part Nr. Qt.
1 BOOT BODY WELDMENT 13701081 1 14 BOLT M6 X 12 - DIN 933-8.8 20100160 4
2 CLOSING PLATE ASS'Y 13102629 2 16 ANCHOR WELDMENT FA 125 13700984 1
3 ROXELL DECAL 10101129 2 17 ANCHOR CLAMP 13104575 1
4 DECAL - HANDS WARNING 13106596 2 18 SOCKET CAP SCREW M8 X 70 - DIN 912 20101986 1
5 ANCHOR + BEARING ASS'Y FA125 13701016 1 19 SOCKET CAP SCREW M8 X 25 - DIN 912 20101978 1
6 CAP DIA. 63.5 13701131 1 21 RESTRICTOR WELDMENT 13701263 1
7 FRONT PLATE DRIVER ASS'Y FA125 13701115 1 22 SET SCREW M8 x 10 - DIN 916 20100434 1
8 DRIVE SHAFT 13701107 1 *24 RUBBER CAP M 8 16103699 4
9 SEEGER RING DIA.35X1.5-DIN 472 20101325 2 *25 NUT M8 DIN 934 - SP. 20200119 4
10 BEARING 17 X 35 X 10 - 6003 LLU 13201066 2 *26 LOCKNUT M6 - DIN 985 20100400 4
11 SEEGER RING DIA. 17 X 1 20101333 2 27 CLOSING PLATE 13102496 2
12 BEARING HOLDER 10300416 1 *28 BOLT M6 X 12 - DIN 933-8.8 20100160 12
13 FLANGE WITH GASKET 13701289 1 *29 SOCKET CAP SCREW M8 X 25 - DIN 912 20101978 4
* HARDWARE KIT 13701156 1
