ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-37

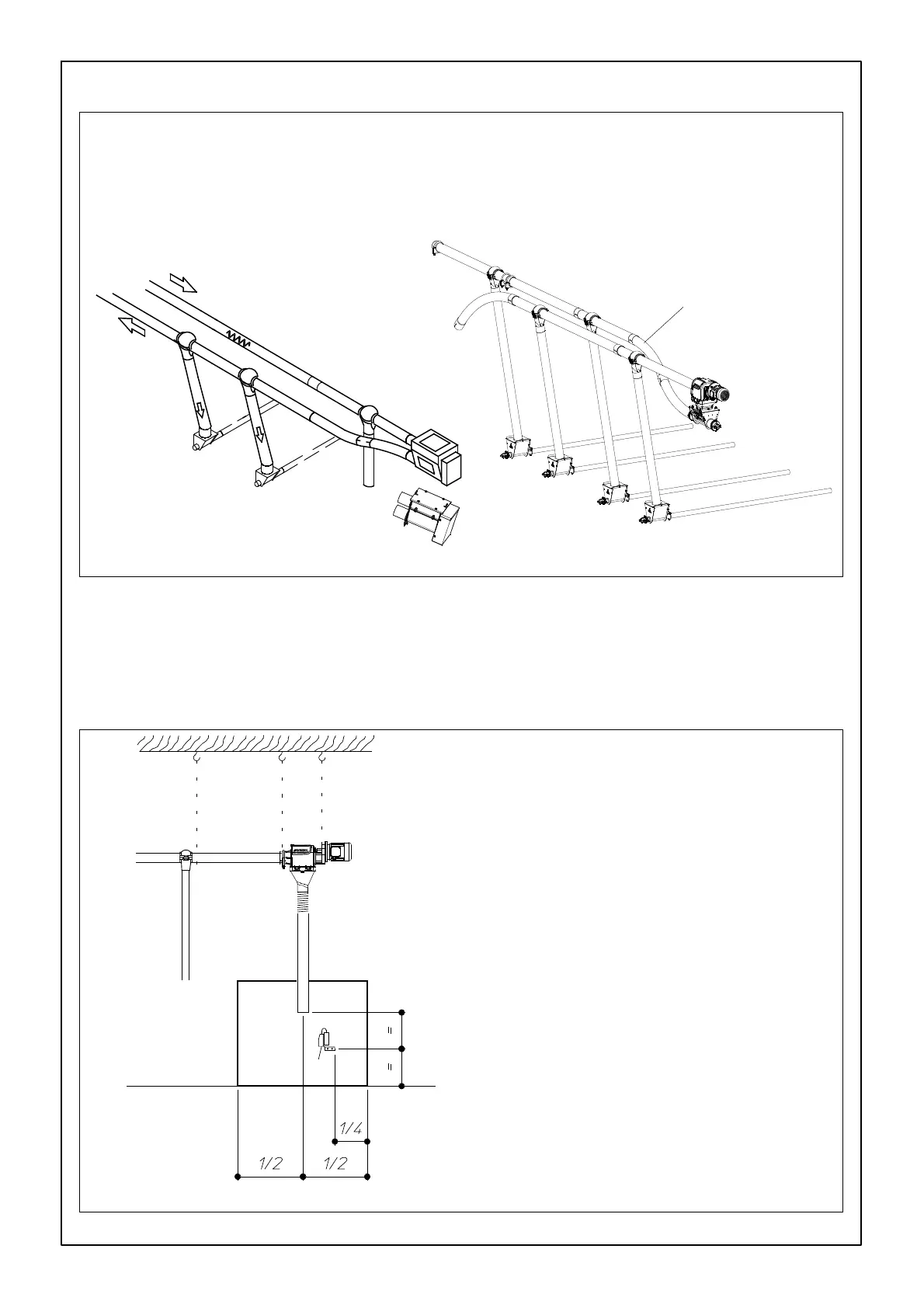

FIGURE 65.
Before you start installing the drops, install the complete supply system. Remember that no tube connec-
torsaremountedabovetheintakeboots.
Take care that the supply is not located right above the feed intake boots, but rather as shown on
the drawing.
1
/
2
x45_ elbow
POSITION OF THE DROP TUBES
FIGURE 66.
Respect distances.
Install the level switch at the right spot !
POSITION OF THE CONTROL UNIT DROP TUBE
