ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-40
1. Slide t he edge of the upper
boot as far as possible in the
bin collar.
2. Make sure that the lower part of
the boot points in the direction
the transport lines will follow !
10 Hex. socket button
head screw M8X25.
FIGURE 72.
7
4
6
2
8
3
5
1

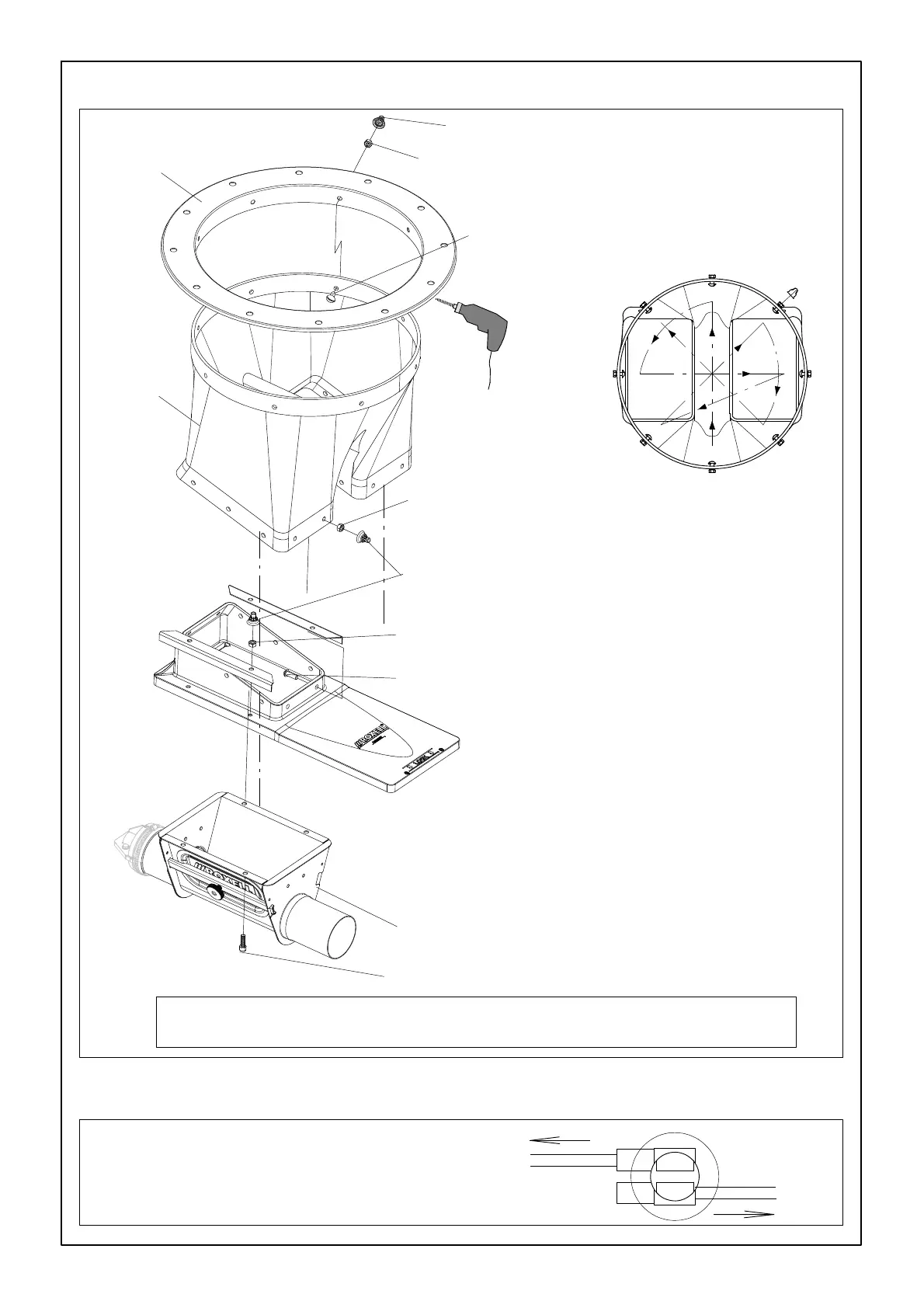

QUADRUPLE BOOT ASSEMBLY
FLEX AUGER 125 :
First check sense of rotation of the auger, then install the thumper.
Intake boot.
Fixthe2transfer
plates to the upper
boot.
Fix the 2 intake
boots to the transfer
plate.
Bin collar.
Upper boot.
8 M8X20.
FIGURE 73.
Seal cap.
Seal cap.
4 socket cap screws M8X25.
Nut M8.
Nut M8 PA6 black
Nut M8 PA6 black
3. Drill a hole dia. 9 mm (1). Fix
by hand with the bolt and the
nut.
4. Drill the opposite hole (2). Fix
by hand with the bolt and the
nut.
5. Drill a hole at 90_ (3), then drill
the opposite hole (4). Fix by
hand with the bolt and the nut.
6. Proceed in the same way for
the other fixing points (5-8).
7. Use a ring spanner to tighten
all nuts with a moment of 4Nm
in the same sequence (1-8).
Do not tighten too much
(cracks!).
8. Install the seal caps.
If you use the pellet kit : see FIG. 70. page I-44.
REMARK :
you can turn the intake boot 180.
FIGURE 74.
