Roxell FLEX-AUGER FA 75 - Return Tandem Fa 90 - 03202009

ROXELL - 031 - 0516
FLEX- AUGER - COMPONENTS
II- 37

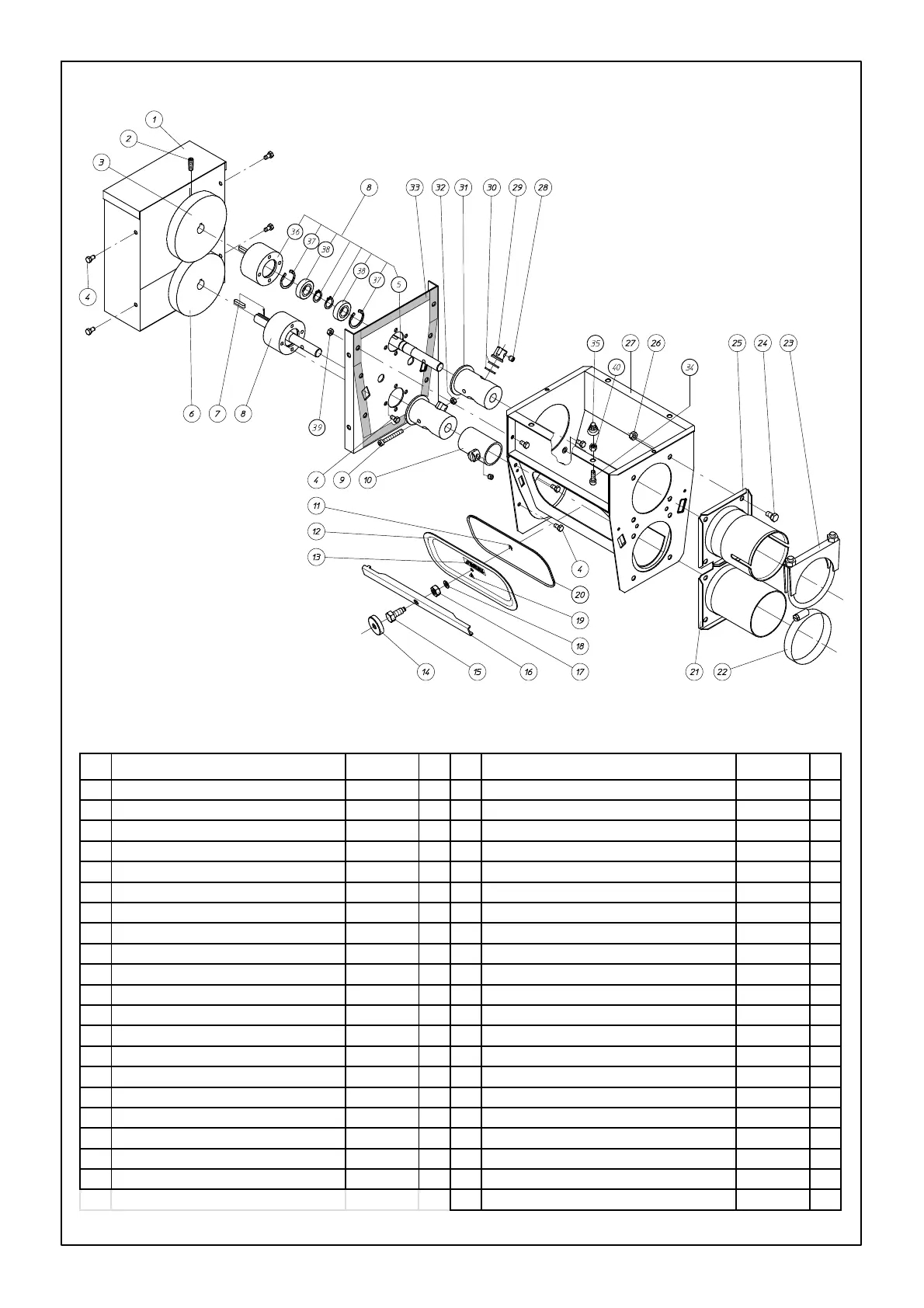

RETURN TANDEM FA 90 - 03202009
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 PROTECTION BOX ASS'Y 13108089 1 21 TUBE ANCHOR WELDMENT 13203112 1
2 SET SCREW M8X25 - DIN 916 20101580 2 22 HOSE CLAMP Ø80 - 100MM 03200250 1
3 SPUR GEAR (POLYAMIDE) 10300432 1 23 TUBE CLAMP ASSEMBLY Ø95MM 03200029 1
4 BOLT M6X12 - DIN 933-8.8 20100160 20 24 BOLT M8X16 - DIN 933-8.8 20100228 8
5 DRIVE SHAFT 13201033 2 25 TUBE ANCHOR WELDMENT ASS'Y 13203104 1
6 SPUR GEAR (STEEL) 10300440 1 26 NUT M8 - DIN 934 20200028 8
7 SQUARE KEY - 5X25 13102942 2 27 TANDEM BOOT BODY WELDMENT 90 13203096 1
8 FRONT PLATE DRIVER ASS'Y 10300424 2 28 SET SCREW M8X10 - DIN 916 20100434 3
9 SOCKET CAP SCREW M6X55 - A2 20108437 2 29 CLAMP PIN 13100482 2
10 RESTRICTOR WELDMENT 13202809 1 30 SPACER 13200134 4
11 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 31 DRIVER WELDMENT 10300473 2
12 CLOSING PLATE 13107776 1 32 LOCKNUT M6-DIN 985-A2 20101960 2
13 ROXELL DECAL - 160X40 10101129 1 33 FLANGE ASS'Y WITH GASKET 13108170 1
*14 KNURLED KNOB 13107842 1 *34 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4
15 CLOSING BOLT - BRASS SMAL 13108154 1 *35 SEAL CAP M8 16103699 4
16 CLOSING PROFILE 13107768 1 36 BEARING HOLDER 10300416 2
17 NUT M10 - DIN 934 20100277 1 37 SEEGER RING Ø35X1.5 - DIN 472 20101325 4
18 FIBER RING 20104287 1 38 BEARING 17X35X10 - 6003 LLU 13201066 4
19 DECAL - HANDS WARNING 13106596 1 39 NUT M6 - DIN 934 20100210 6
20 GASKET 15X2 30800874 1 *40 NUT M8 DIN 934 - SP 20200119 4
* HARDWARE KIT 13108055 1
