FLEX-AUGER - COMPONENTS
II-5

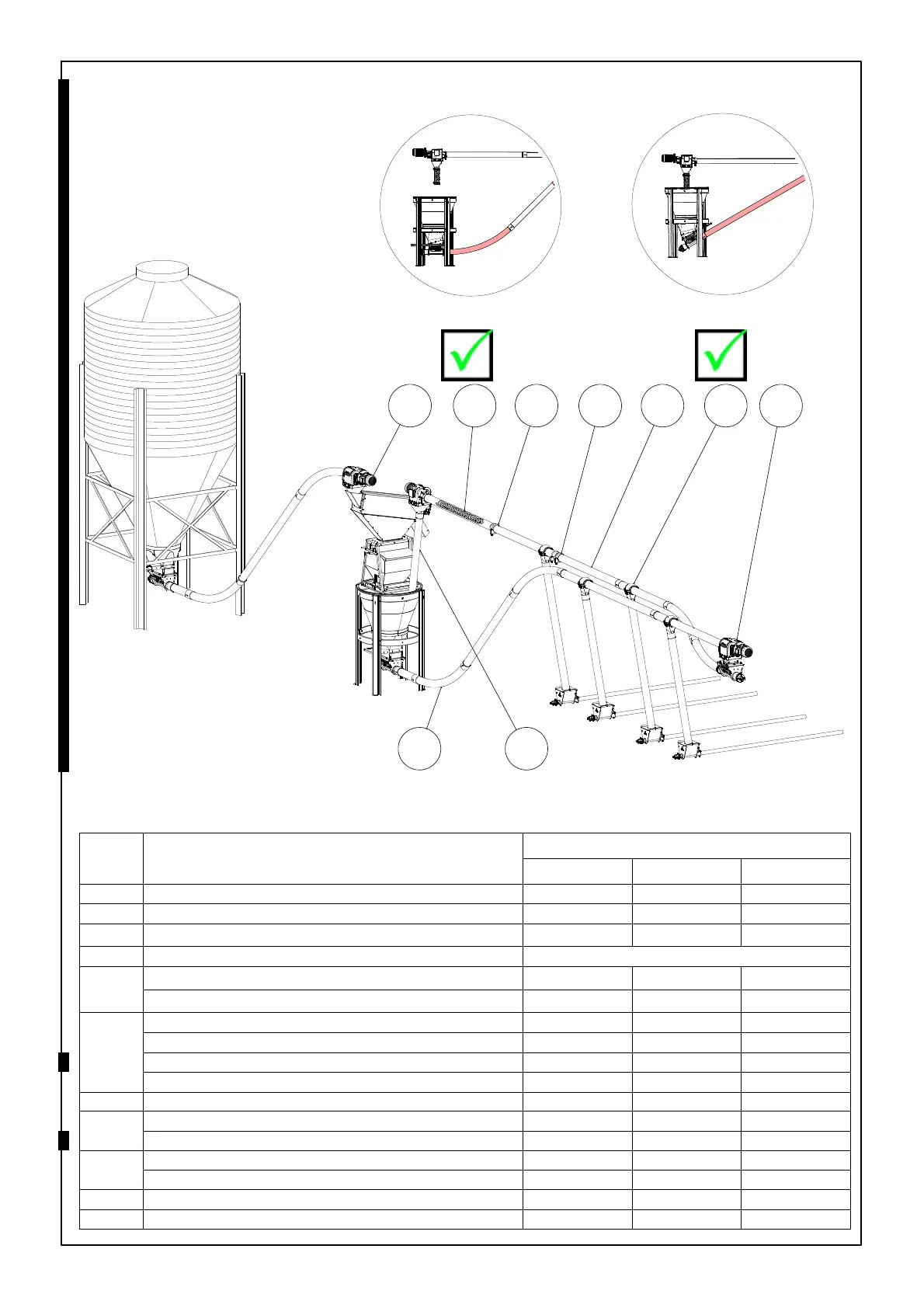

GENERAL LAY-OUT CDS-SYSTEM : BROILER CAGES - FA 90/125
FIGURE 4.
4 12 9 10
5
6 8*
7
11
LAYERSBROILERS
COMPONENT NUMBERS
Key Name Number
Mod. 75 Mod. 90 Mod. 125
1 UNIVERSAL COLLAR 03102001 03102001 03102001
2 BOOT ASSY W/ONE WAY 03102902 03201969 03700531
3
UPPER BOOT 15 BLACK
03000577 03000577 03000577
4 POWER UNIT II-7
5
NOVICOR ELBOW 45
03100542 03200326 03700051
HARDENED STEEL ELBOW 45
- 03200433 03700002
6 NOVICOR TUBE - 3 M 03100559 03200300 03700069
STEEL TUBE - 3 M - 03200102 03700200
DENSICOR TUBE- Ø127 - 3 M
- -
03701108
PLASTIC DROP TUBE ASSY DIA. 85 - 03100625 03100625
8 EXTENSION BOOT 03103884 03202652 03700853
9 TUBE CLAMP ASSY - 03200029 03700077
HOSE CLAMP 131-139 26MM
03100658 03200250 03701196
10
TUBE CONNECTOR - 03200169 03700382
TUBE CONNECTOR 03100583 03200383 03700382
11 OUTLET DROP ASS’Y W/SHUT-OFF II-43 II-44 II-44
12 AUGER 03100187 03200409 03700085
