ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-41
MODEL 55
MODEL 75
MODEL 90
MODEL 125
Tube clamp

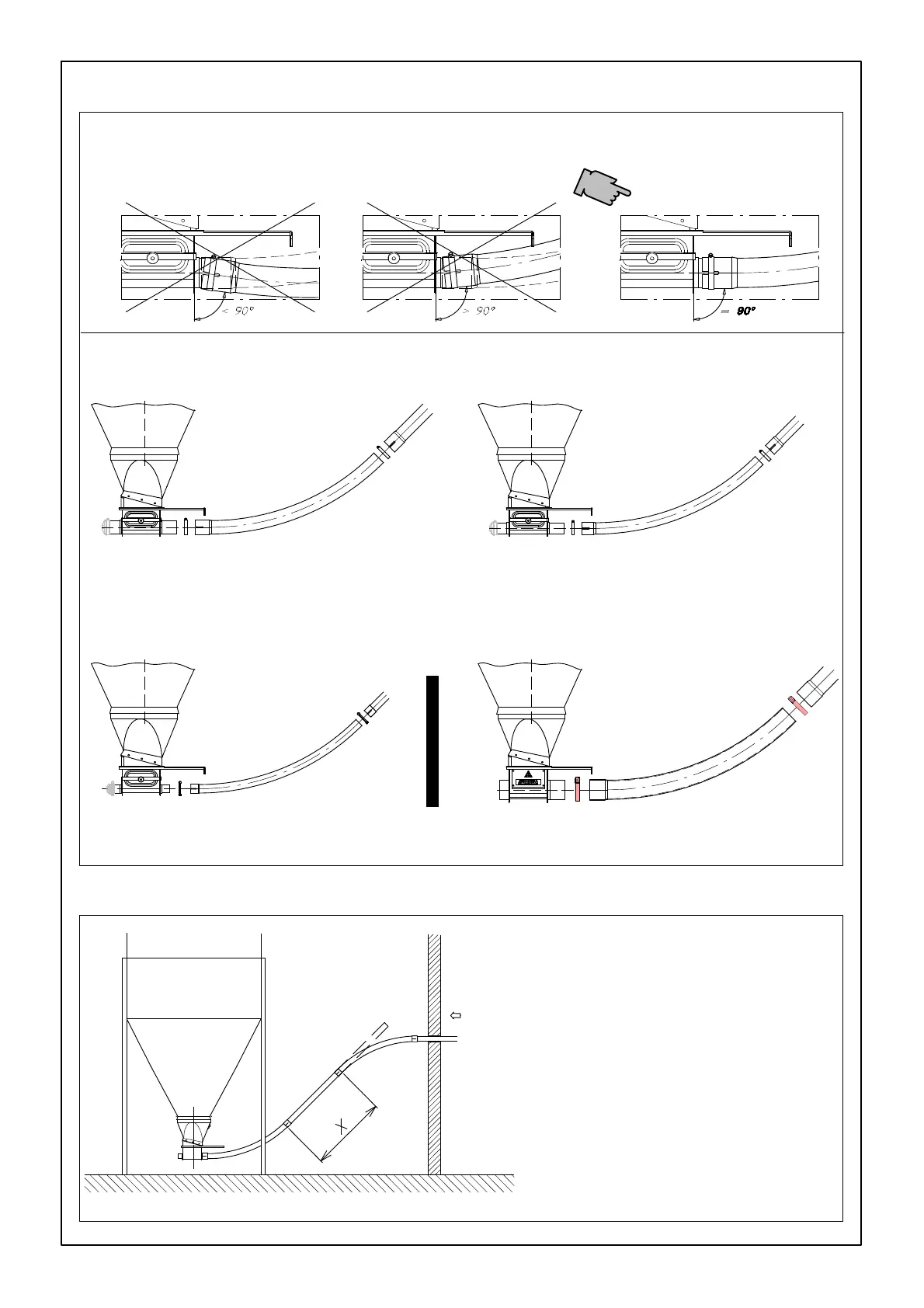

FIGURE 75. FIGURE 76.
FIGURE 77. FIGURE 78.
TO CONNECT THE TRANSPORT SYSTEM TO THE BIN
Install tubes outside with expanded ends down-
wards to prevent water from leaking in.
Install the horizontal tube straight through the
wall.
Install an elbow (45_) pointed towards the bin
boot.
Hold a tube between both elbows to determine
the required length (X) of the straight tube.
FIGURE 79.
