ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-42

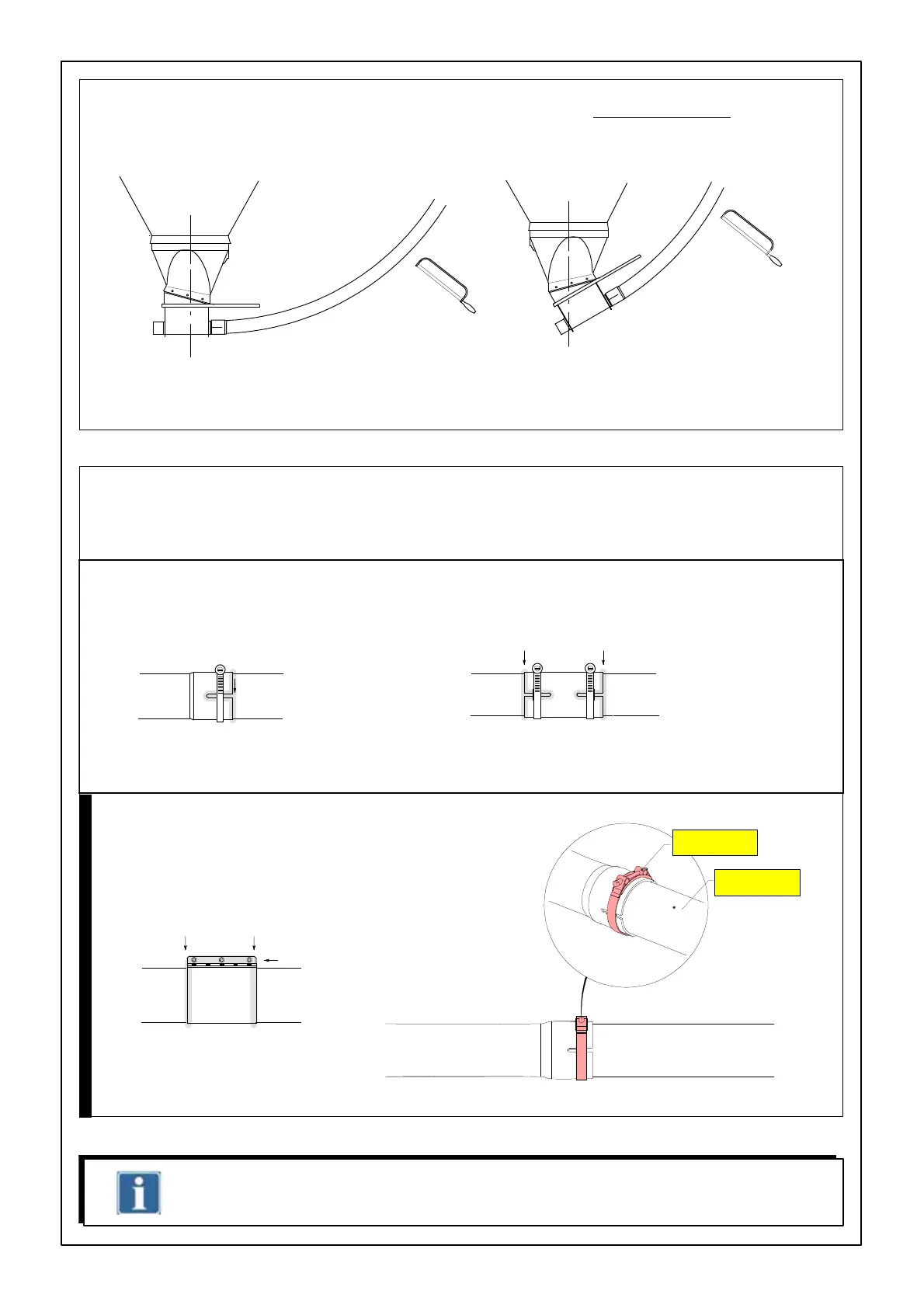

Cut the 45_ elbow to get the correct inclination to the hole in the wall.
Boot straight-out.
Boot at 30
(Not recommended)
Not allowed for breeder application.
FIGURE 80. FIGURE 81.
USE CAULKING OR SILICONES : TUBE CONNECTIONS OUTSIDE THE HOUSE MUST BE WATER-
TIGHT !
Slide the tube into the expanded end of the next tube or elbow
FIGURE 82. FIGURE 83.
MODEL 55, 75 AND 90 WITH TUBE CONNECTOR (OPTION)
Use silicone.
MODEL 125
FIGURE 84.
03701196
03700069
FIGURE 85.
Use silicone.
TIGHTEN ALL BOLTS : MINIMUM 10 Nm
