ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-30

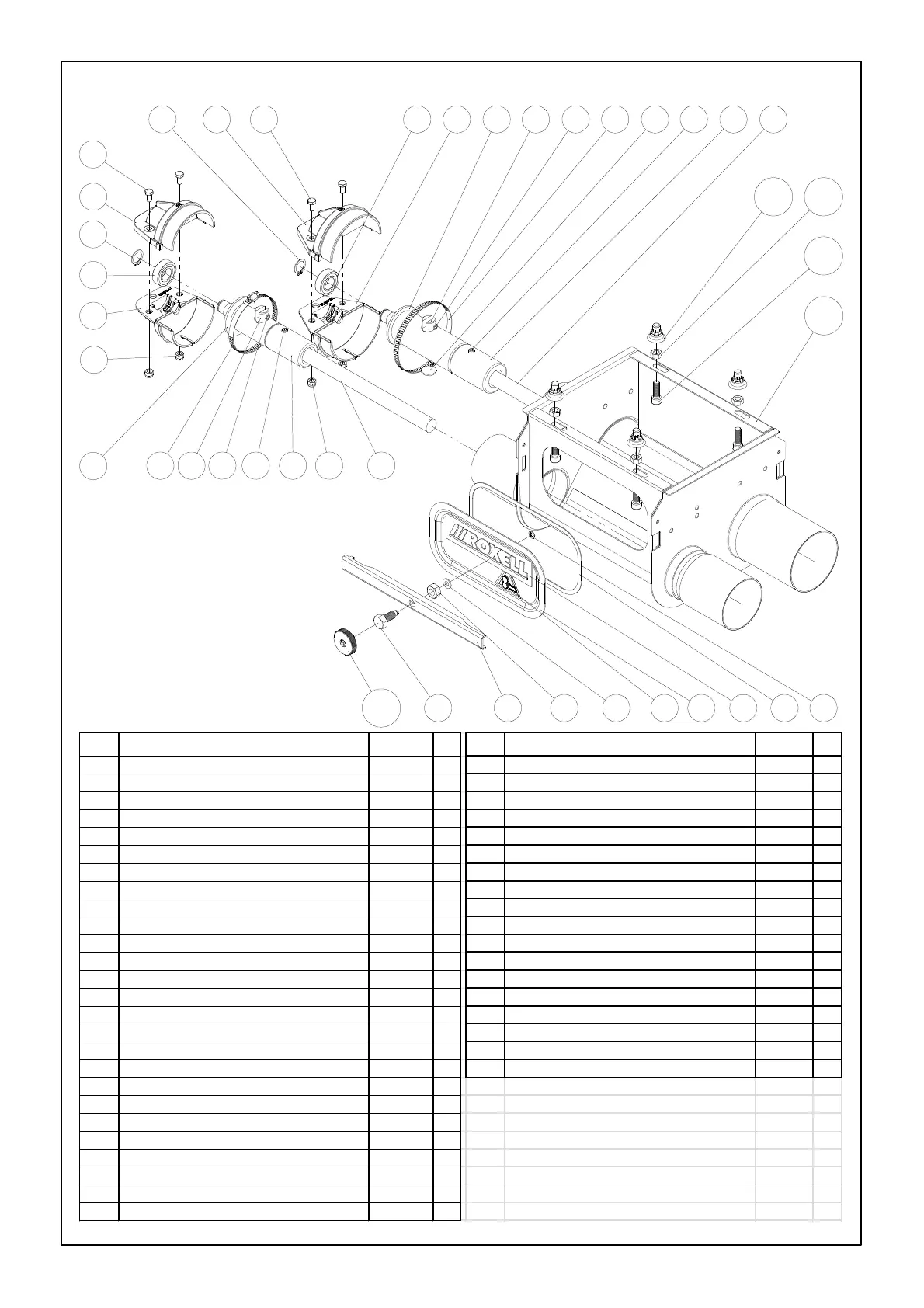

DOUBLE INTAKE BOOT FA 90-FA75 - 03000569
3.9
3.12
3.10
3.4
3.8
3.13
3.11
3.3
3.23.7 2.12 3.1
2.132.72.10 2.4 2.8 2.2
3.6
2.9
2.5
2.3 2.1
1.11.3 1.2 1.3 1.4 1.5 1.7 1.91.10 1.8 1.6
1.11.2 1.11.1
1.11.4
1.1
2.112.6
3.5
2.5
Ke y Nam e Par t Nr . Qt. Ke y Nam e Par t Nr . Qt .
1 DOUBLE BOOT & CLOSING PLATE FA90-FA75 13000948 1 2.10 SEEGER RING Ø17X1 20101333 1
1.1 DOUBLE BOOT WELDMENT FA90-FA75 13000823 1 2.11 SPACER 13200134 1
1.2 CLOSING BOLT - BRASS SMAL 13108154 1 2.12 LOCKNUT M6 - DIN 985 20100400 1
1.3 CLOSING PROFILE 13107768 1 2.13 BOLT M6X12 - DIN 933-8.8 20100160 1
1.4 NUT M10 - DIN 934 20100277 1 3 ANCHOR & BEA RING A SS'Y FA 75 13109681 1
1.5 FIBER RING 20104287 1 3.1 ANCHOR & BEARING SHA FT FA 75- 90 13109731 1
1.6 E-RING Ø5-DIN 6799-A2 S.S 20102018 1 3.2 RESTRICTOR Ø36 13105838 1
1.7 CLOSING PLATE 13107776 1 3.3 ANCHOR TUBE WELDMENT Ø36 13105853 1
1.8 GASKET 15X2 30800874 1 3.4 BEARING 17X35X10 - 6003 LLU 13201066 1
1.9 ROXELL DECAL - 160X40 10101129 1 3.5 SET SCREW M8X10 - DIN 916 20100434 1
1.10 DECAL - HANDS WARNING 13106596 1 3.6 CLAMP PIN 13100482 1
1.11 HARDWARE KIT 13108055 1 3.7 SET SCREW M8X8-DIN 916 20101697 1
1.11.1 NUT M8 DIN 934 - SP 20200119 4 3.8 BEARING HOLDER CAP DOWN - Ø75 13109632 4
1.11.2 RUBBER CAP M8 16103699 4 3.9 BEARING HOLDER CAP UP - Ø75 13109624 4
1.11.3 KNURLED KNOB 13107842 1 3.10 SEEGER RING Ø17X1 20101333 1
1.11.4 SOCKET CAP SCREW M8X25 - DIN 912 20101978 4 3.11 HOSE CLAMP ASSEMBLY Ø70-90 03100658 4
2 A NCHOR & BEARING A SS'Y FA 90 13204011 1 3.12 BOLT M6X12 - DIN 933-8.8 20100160 1
2.1 A NCHOR & BEA RING SHA FT FA 75- 90 13109731 1 3.13 LOCKNUT M6 - DIN 985 20100400 1
2.2 A NCHOR TUBE WELDMENT Ø44 13201769 1
2.3 RESTRICTOR Ø44 13201744 1
2.4 BEARING 17X35X10 - 6003 LLU 13201066 1
2.5 SET SCREW M8X10 - DIN 916 20100434 3
2.6 HOSE CLAMP Ø80 - 100MM 03200250 1
2.7 BEARING HOLDER CAP UP - Ø90 13203781 1
2.8 BEARING HOLDER CAP DOWN - Ø90 13203799 1
2.9 CLAMP PIN 13100482 1
