Roxell FLEX-AUGER FA 75 - Extension Boot Assembly and Installation

ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-28

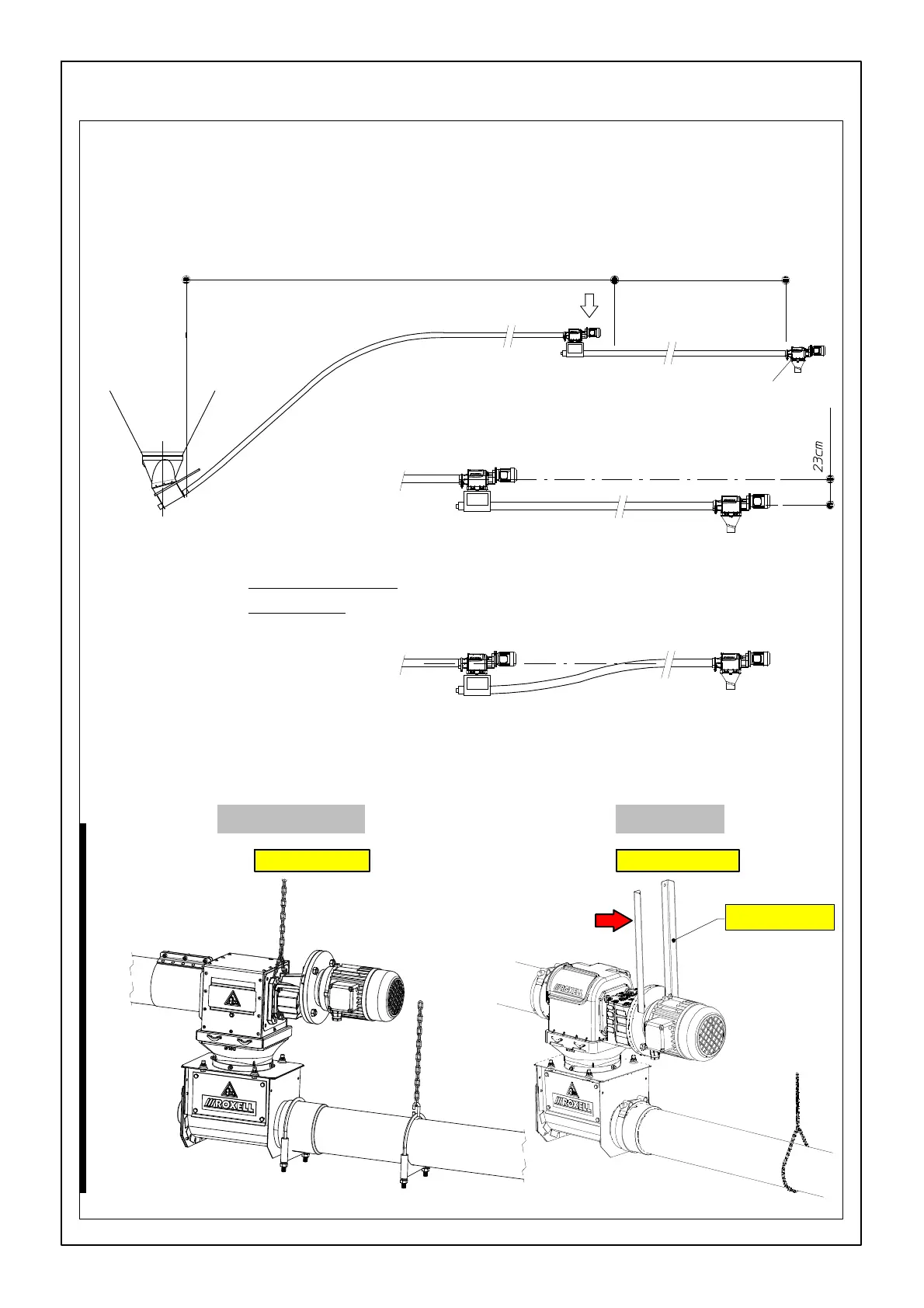

Point the slide towards the house passage. Fix the extension boot underneath with 4 parcker screws.
Suspend the extension boot before t he middle of the line (bin - control unit).
If you absolutely need an extra elbow
in the system :
- always install the extension boot before
this elbow
- always install the outlets behind
this elbow
FIGURE 38.
Take care that the line past the extension boot hangs
23cm lower (in standard extended system).
Youcancompensatethedifferenceinlevelsby
installing 2 small elbows.
Suspend the extension boot the same way as the control unit.
AB
Control-unit
WITH AN EXTENSION BOOT, YOU CAN TURN THE LINE 90 LEFT OR RIGHT AND SAVE AN EL-
BOW.

L : 25x25x2
Model 55/75/90
Chain
Model 125
Profile
FIGURE 39. FIGURE 40.
EXTENSION BOOT
A
SSEMBLY
A
ND INSTALLATION
