Roxell FLEX-AUGER FA 75 - Control Unit Fa 55 - 03501236

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-8
18
64210
17
15
3
14
16.1
16.4
16.3
16.2
5
1
13
7
12
11
9
8
16.
5
19

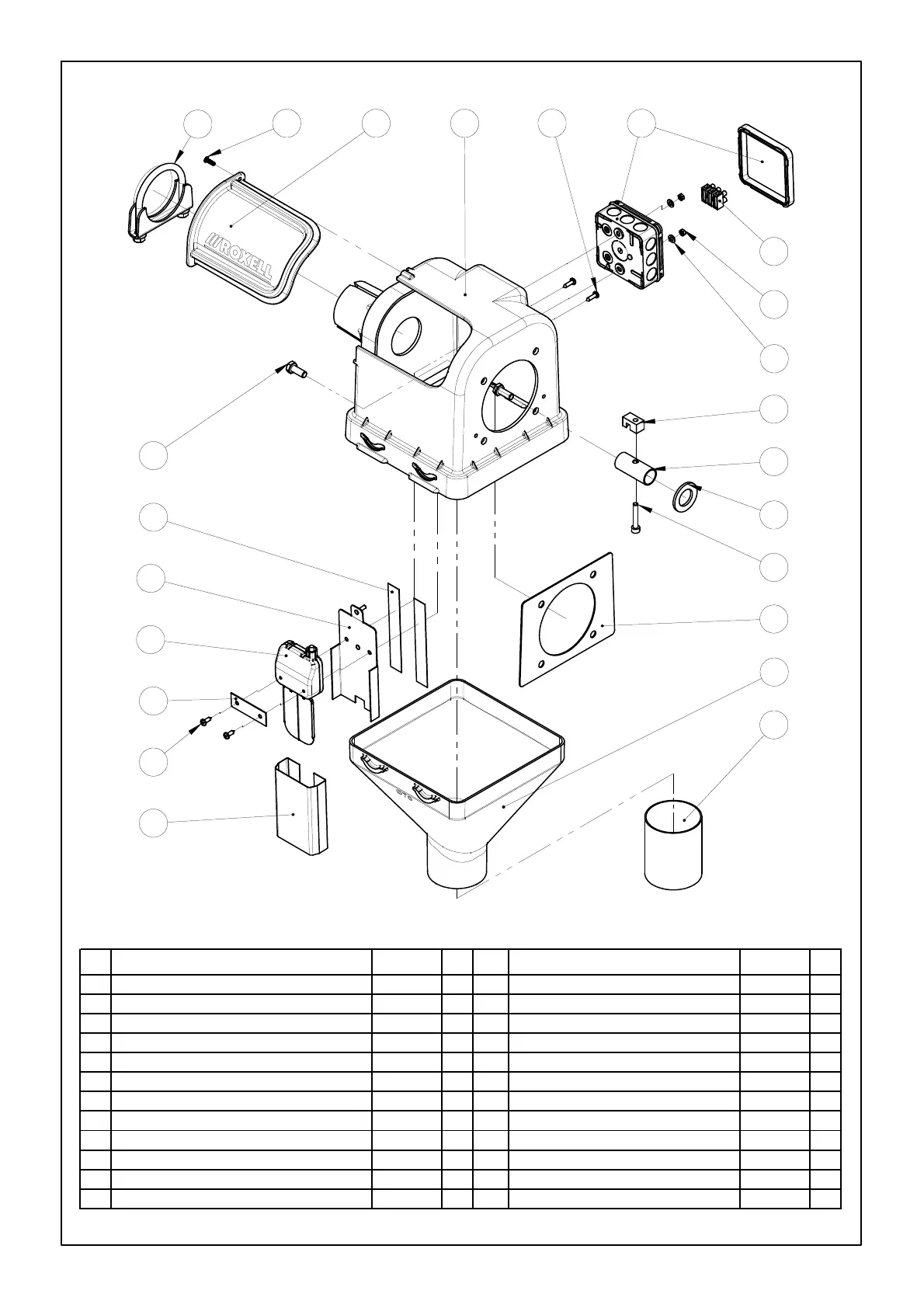

CONTROL UNIT FA 55 - 03501236
Key Nam e Part Nr. Qt. Ke y Nam e Part Nr. Qt.
1 DROP FOR DROP TUBE Ø70 13502174 1 13 MINIMUM SWITCH SHIELD 10203115 1
2 HOUSING - CONTROL UNIT Ø56 13502166 1 14 NUT M4 20100681 2
3 HANDY BOX IPW AX4-IP55 15009814 1 15 CLAMP STROKE 27 20 6E/3 10103109 1
4 WINDOW 13000500 1 16 HARDWARE KIT CU FA 55 13502208 1
5 REINFORCEMENT PLATE Ø56-75-90-MOTOR 13109046 1 16.1 DRIVE BLOCK 10100782 1
6 THREAD FORMING SCREW 4X12-A2 12502043 1 16.2 SOCKET CAP SCREW M6X35 DIN 912 20102158 1
7 SAFETY SWITCH ASS'Y 13104567 1 16.3 GALV.WASHER Ø39X23X3 20103842 1
8 SWITCH PLATE WITH PRESS SCREW 13109533 1 16.4 DRIVE TUBE 13500434 1
9 ADHESIVE TAPE 19X0.23-2SIDE 30800726 2 16.5 BOLT M8X20 - DIN 933-8.8 20200150 4
10 PARCKER SCREW 4.2X16 - DIN 7981 20102331 2 17 WASHER 5.3X10X1 - DIN 125 - A2 20102315 2
11 SWITCH CONNECTION STRIP 13105259 1 18 TUBE CLAMP ASSEMBLY Ø67MM 03501293 1
12 PARCKER SCREW 8X1/2" 20100525 2 19 INSERT TUBE FOR DROP Ø70MM 13000534 1
